HP StorageWorks SN6000 Fibre Chan
nel Switch
QuickTools Switch Management User Gui
de
89
Cha
nge
Over
The C
hange Over opti
on changes the inac
ti
ve SMTP serv
er to the acti
ve SMTP server
.
T
o mak
e the inacti
ve SMTP
become the acti
ve SMTP:
1.
Select
Switch > Call Home
> Change Over
.

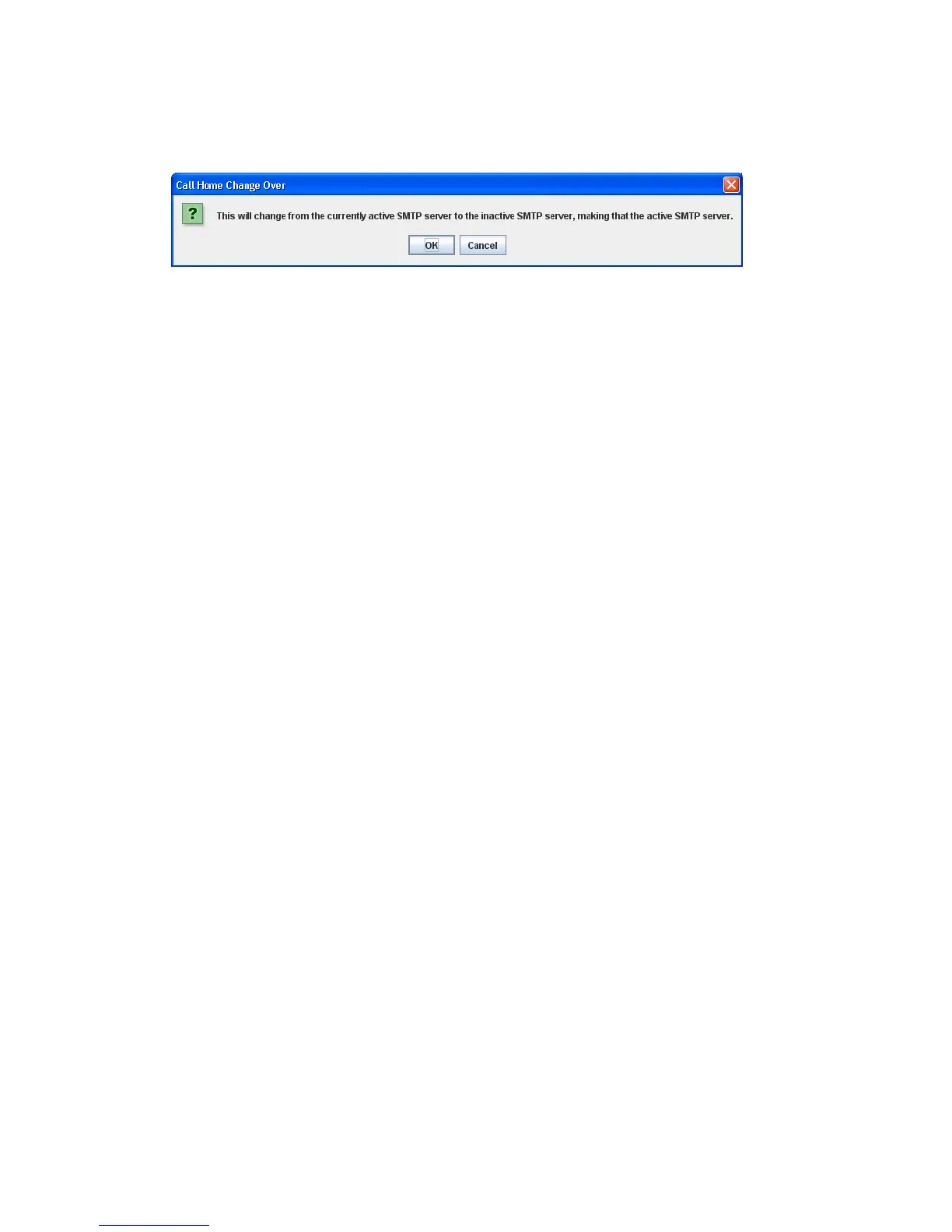

Fig
u
re 5
0
C
all Home Change Over di
alog bo
x
2.
Click
OK
to
confir
m the change ov
er
.
88
