HP StorageWorks SN6000 Fibre Channel Switch QuickTools Switch Management User Guide 13
Alerts panel
The Alerts panel shows all reasons for status, including faults. The Alerts panel entries are the highlighted
rows between the faceplate image and the data window entries.
NOTE: The up/down arrows on the divider bar between the Alerts panel entries and data windows
enable you to move the divider bar up or down incrementally. With the faceplate image in the graphic
window and the data window displayed, click the up arrow (on left) to move the divider up to the top of
the window, completely hiding the faceplate image. Click the down arrow (on right) to move the divider
back to the middle; click the down arrow again to completely hide the data window. You can also
click-and-drag the divider bar to manually move it up or down.

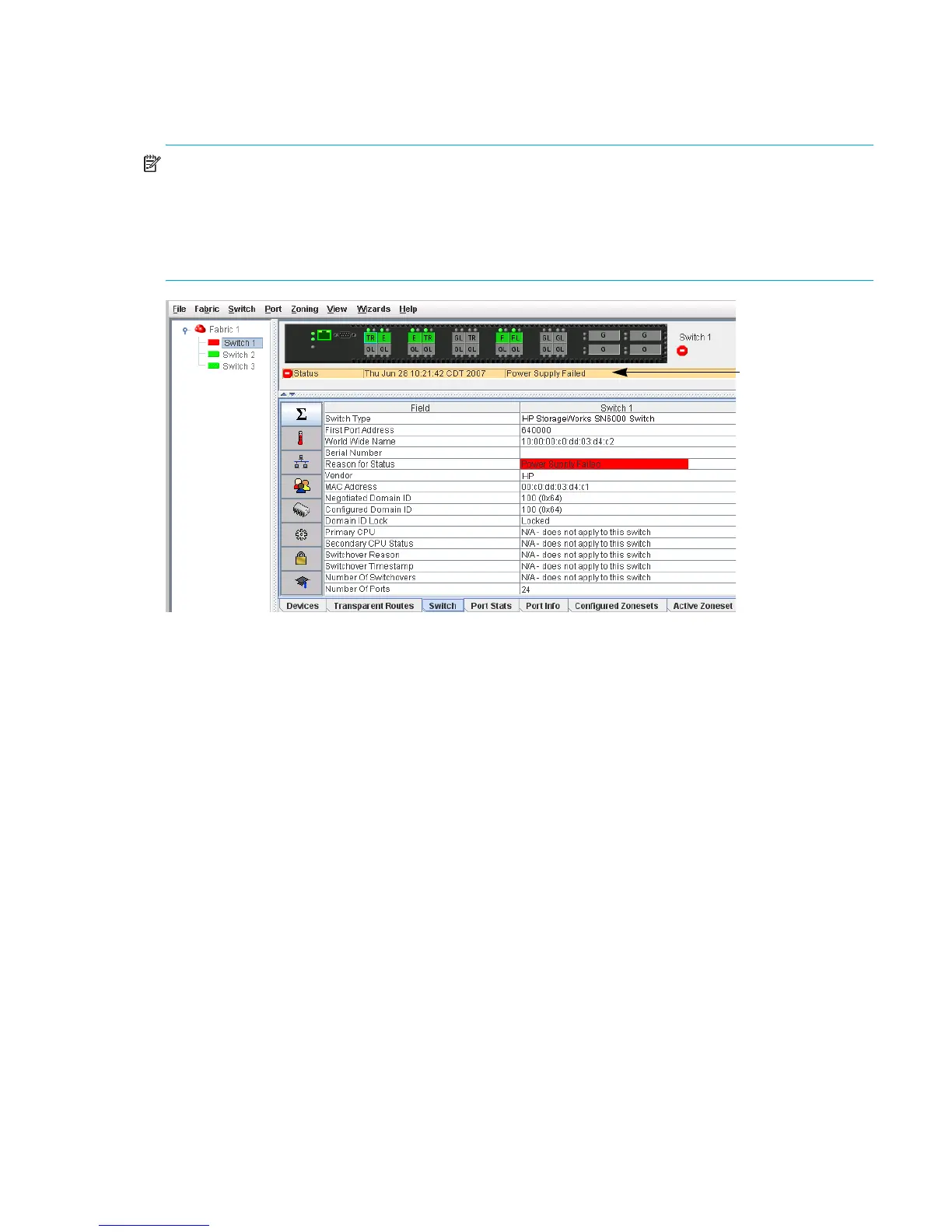

Figure 5 Alerts panel
Status section
