HP Z200 User Manual

6.
Press down on the green drive retainer button located on the left side of the drive to disengage the
drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it
stops, then lift it up and out of the drive cage (2).

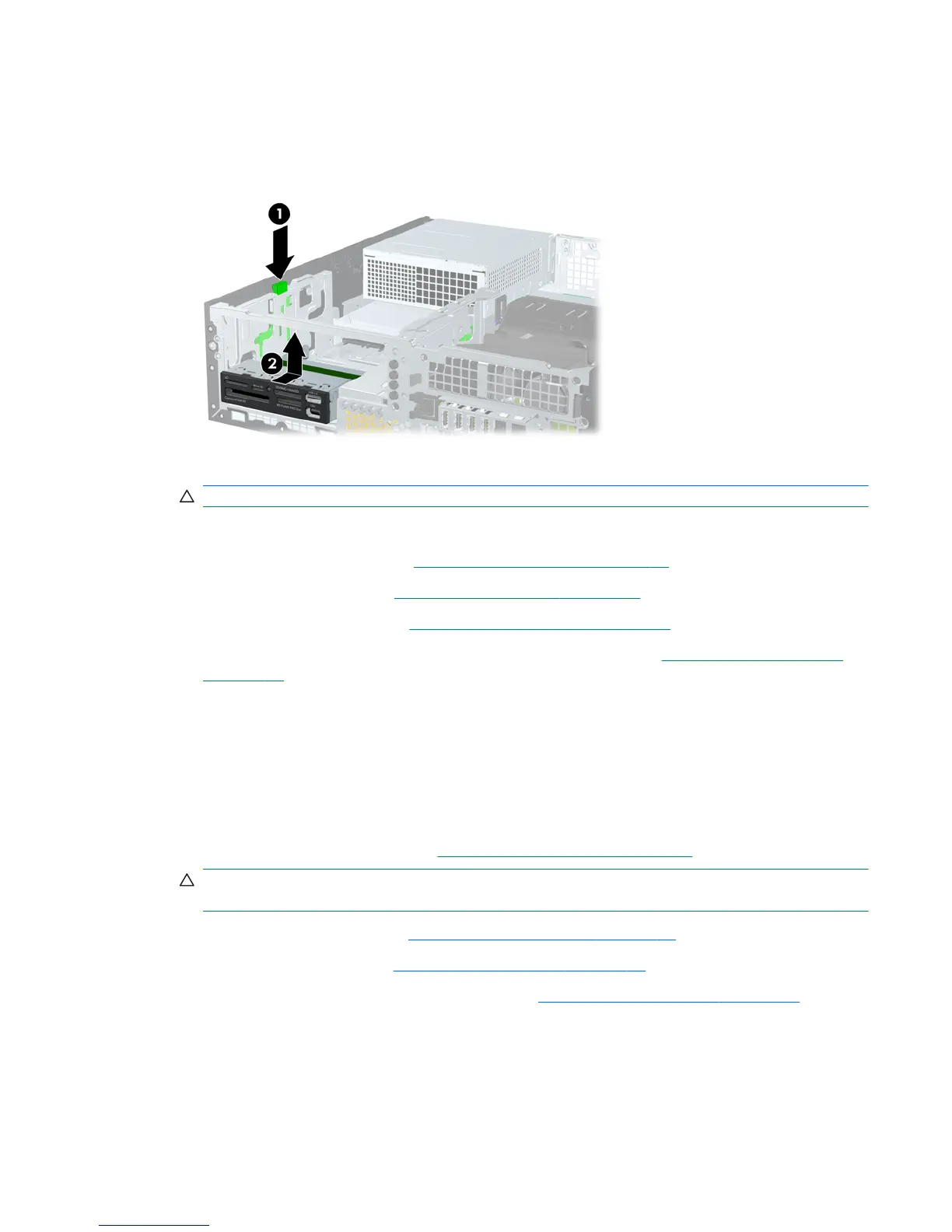

Figure 5-22 Removing a drive from the drive cage (media card reader shown)
7.
Rotate the drive cage back down to its normal position.
CAUTION: Be careful not to pinch any cables or wires when rotating the drive cage down.
8.
If you are replacing the drive, transfer the four guide screws from the old drive to the new one.
9.
Replace the optical drive. (See
Installing an optical drive on page 85.)
10.
Replace the front bezel (see
Installing the front bezel on page 74).
11.
Replace the access panel (see
Installing the access panel on page 72).
12.
Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 69.
Installing a hard drive or media card reader into the drive cage
You can install a 3.3 cm (3.5 in) hard drive underneath the 13.3 cm (5.25 in) optical drive. A media
card reader can also be installed at this location. If an optical drive is present, you must remove it to
install the hard drive.
To install a hard drive or media card in the drive cage:
1.
Follow the procedures listed in the
Predisassembly for drives on page 79 section.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or
data loss.
2.
Remove the access panel (see
Removing the access panel on page 72).
3.
Remove the front bezel (see
Removing the front bezel on page 74).
4.
Remove the optical disk drive if it is present. (See
Removing an optical drive on page 83.)
ENWW
Removing and installing components
89

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
