HP Z200 User Manual

Expansion card slot identification
This section identifies and describes computer expansion card slots, and presents card configuration
information.
Slot identification and description
The following figure identifies computer expansion card slots.

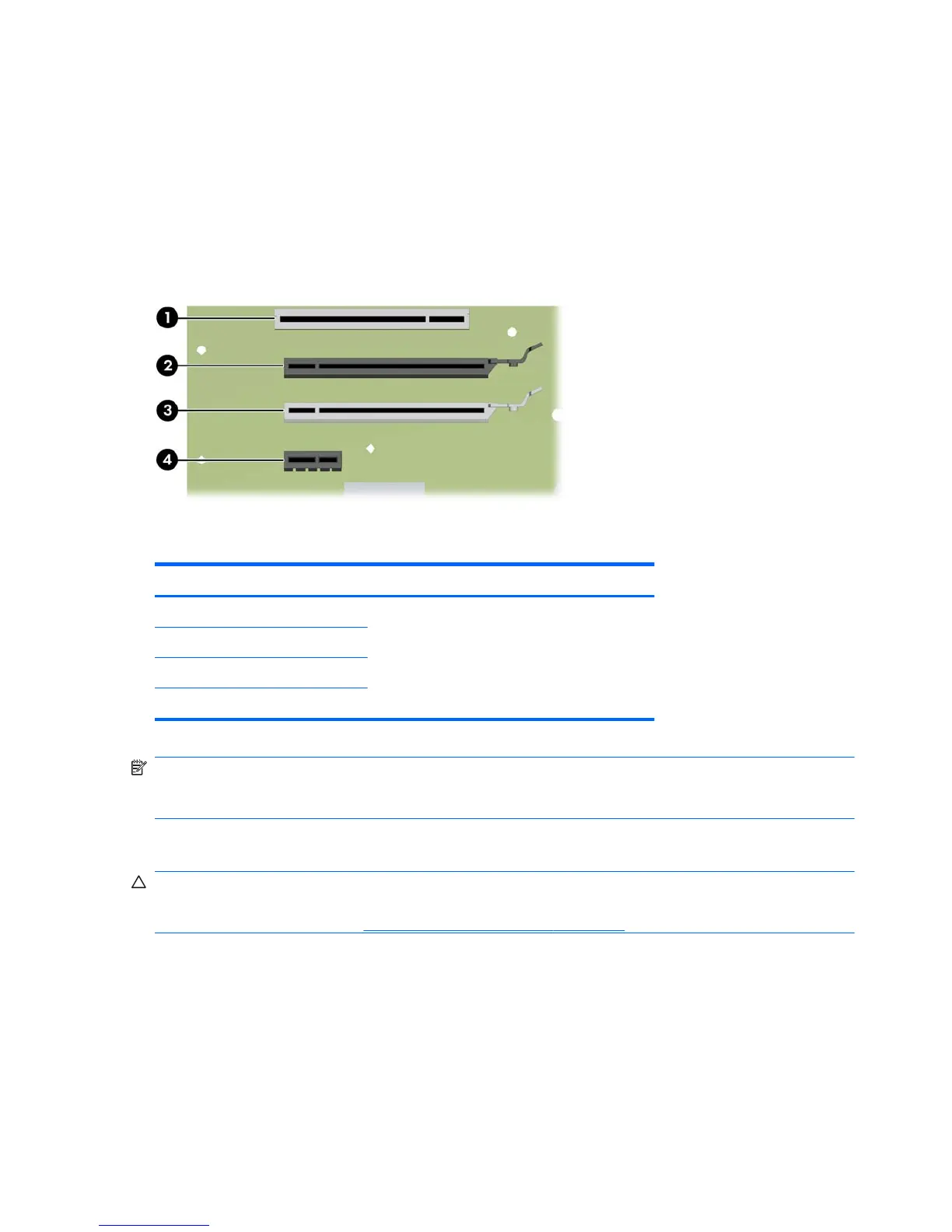

Figure 5-71 Identifying expansion card slots
The following table describes the computer PCIe card slots.
Table 5-8 PCI slots
Slot Type Slot power (maximum)
1 PCI 32b/33MHZ
●
45W for all graphics cards
●
80W for all I/O devices
2PCIe2 - x16
3PCIe - x16(4)
4PCIe1 - x1
NOTE: The x1, x4, and x16 designators describe the mechanical length of the slot. The number in
parentheses lists the number of electrical PCIe lanes routed to the expansion slot. For example, x16(4)
means that the expansion slot is mechanically a x16 length connector, with four PCIe lanes connected.
Card configuration restrictions for power supplies
CAUTION: To prevent damage, the overall power consumption of the computer (including I/O
cards, CPU, and memory) must not exceed the maximum rating of the computer power supply. For
power supply information, see
Power supply specifications on page 9.
124 Chapter 5 Replacing components ENWW

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
