Some flat ribbon cables come prefolded. Never change the folds on these cables.
●
Do not bend any cable sharply. A sharp bend can break the internal wires.
●
Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.
●
Never crease a SATA data cable.
●
Do not rely on components like the drive cage, power supply, or computer cover to push cables
down into the chassis. Always position the cables to lay properly by themselves or in the cable
guides and chassis areas designed for cable routing.
When removing the power supply power cables from the connector on the system board, always follow
these steps:
1.
Squeeze on the top of the retaining latch attached to the cable end of the connector.
2.
Grasp the cable end of the connector and pull it straight up.
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could
damage the cable and result in a failed power supply.
Power connections
For help with identifying power cables, see the following figure and table. Ensure that all cables are
routed or tied so they cannot interfere with the processor heatsink fans.

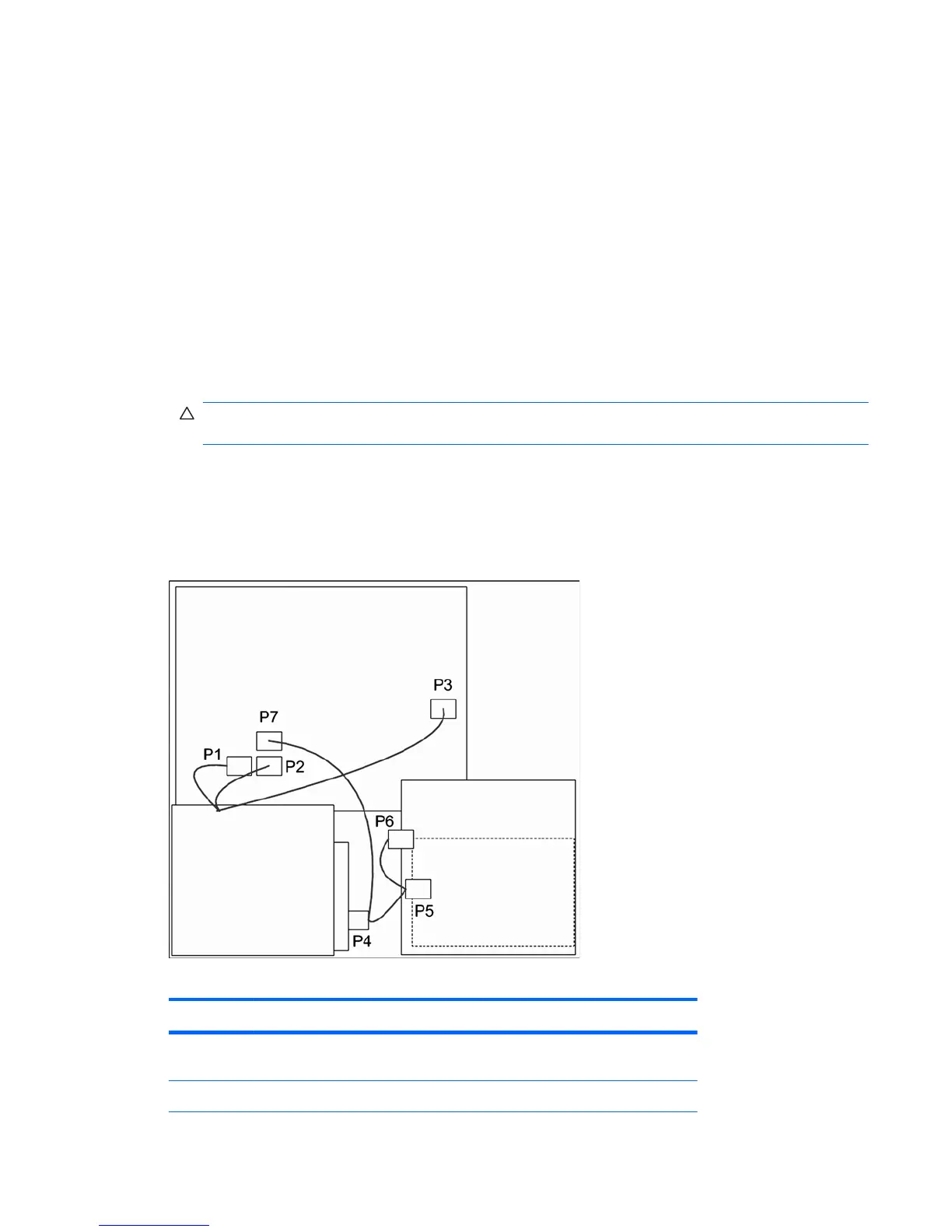

Figure 5-53 Power connector identification for a typical configuration
Table 5-7 Power connector description
Item Description Item Description
P1 Main power P5 4–pin connector for legacy
devices
P2 PWRCMD—Power command P6 (P9) Optical disk drive
ENWW
Removing and installing components
107

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
