HP Z200 User Manual

Installing a CPU
NOTE: HP recommends that you do not swap processors (CPUs) from one system board to another.
To install a CPU:
1.
Prepare the computer for servicing by following the
Predisassembly procedures on page 69.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or
data loss.
2.
Remove the access panel (see
Removing the access panel on page 72).
3.
Remove the airflow guide.
4.
If necessary, remove the CPU heatsink (see
Removing the CPU heatsink on page 132).
5.
Using extreme care, fully raise the CPU socket lever and cover.
CAUTION: The CPU socket contacts are delicate. To avoid bending the contacts, use extreme
care when installing the CPU in the socket.
6.
Align the notches in the CPU base with the tabs on the socket as shown in the figure below.
Seat the CPU into the socket. Ensure that the underside of the CPU is level with the top of the CPU
socket.

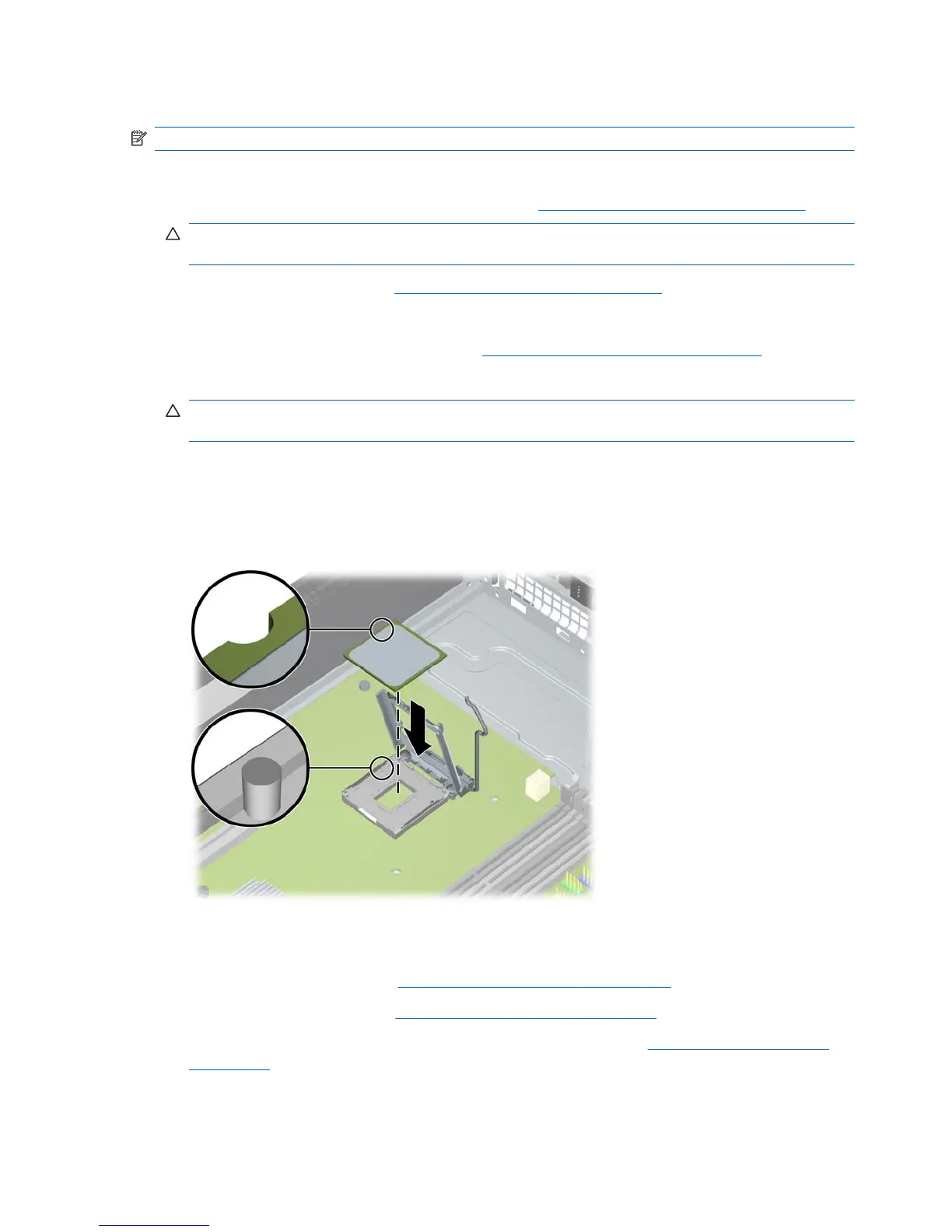

Figure 5-82 Seating the CPU
7.
Close the CPU cover plate by lightly pressing down on the CPU cover plate while closing the
socket lever.
8.
Replace the CPU heatsink (see
Installing the CPU heatsink on page 133),
9.
Replace the access panel (see
Installing the access panel on page 72).
10.
Restore all connections and equipment that you removed during the
Predisassembly procedures
on page 69.
136 Chapter 5 Replacing components ENWW

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
