HP Z200 User Manual

NOTE: For information about configuring SATA RAID devices, see Configuring RAID devices
on page 173.
Predisassembly for drives
Take these actions before you begin installing or removing a drive:
Follow all general predisassembly procedures
Prepare the computer for servicing by following the
Predisassembly procedures on page 69.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or data
loss.
Perform a data backup
CAUTION: Before removing a hard drive, make sure you back up all information on the drive up to
an external storage device. Failure to do so can result in data loss. After replacing the primary hard
drive, you must run the Restore Plus! CD to load the HP factory-installed files.
Gather required tools
You will need a Torx T-15 screwdriver to remove and install the guide screws on a drive.
Verify drive position and information
To verify the type, size, and capacity of the storage devices installed in the computer, run the Computer
Setup (F10) Utility. The following figure illustrates the physical position of the drives.

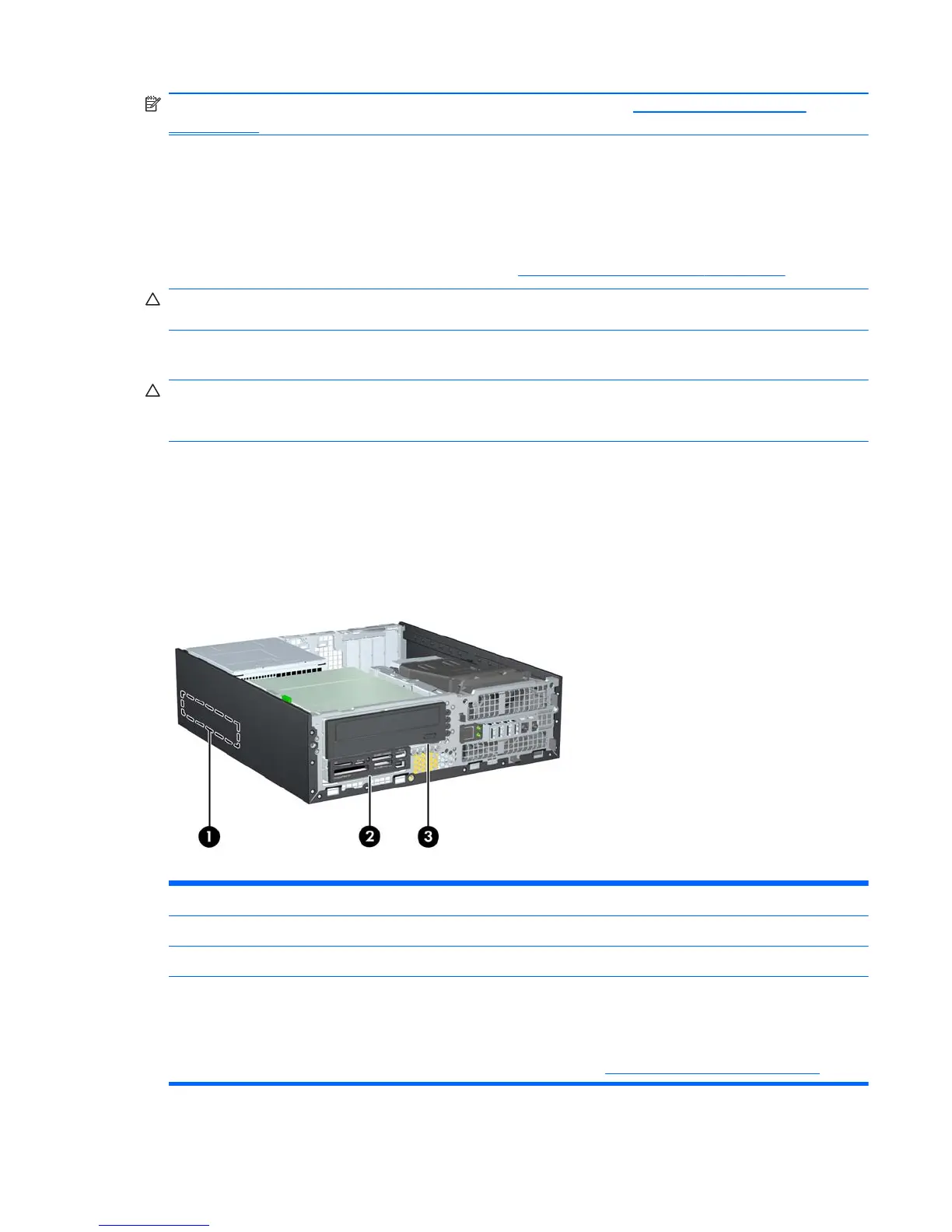

Table 5-4 Drive positions
1 3.5-inch internal hard drive bay
2 3.5-inch internal/external drive bay for optional drives (media card reader shown)
3 5.25-inch external drive bay for optional drives (optical drive shown)
NOTE: The drive configuration on your computer may differ from the drives shown above.
NOTE: You can install a maximum of two hard disk drives in the Z200 SFF.
NOTE: For additional information about configuring SATA RAID devices, see
Configuring RAID devices on page 173.
ENWW
Removing and installing components
79

HP Z200 Specifications

General

Tcase	69.1 °C
Bus type	DMI
Stepping	D2
FSB Parity	No
Processor cache	8 MB
Processor cores	4
Processor model	E3-1240
System bus rate	5 GT/s
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	8
Processor codename	Sandy Bridge
Processor frequency	3.3 GHz
Processor cache type	Smart Cache
Processor lithography	32 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	2.0
Processor boost frequency	3.7 GHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	33
Maximum number of PCI Express lanes	20
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066, 1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
Maximum internal memory supported by processor	32 GB
Audio system	HD
Product type	Workstation
Motherboard chipset	Intel® C206
Memory slots	4x DIMM
Internal memory	8 GB
Memory channels	Dual-channel
Memory clock speed	1333 MHz
Maximum internal memory	- GB
HDD speed	7200 RPM
RAID levels	0, 1
HDD capacity	1000 GB
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	-
Graphics card	Quadro 2000
Power supply type	AC
External drive bays	3 x 5.25\
Internal drive bays	3 x 3.5\
Networking features	Gigabit Ethernet (10/100/1000)
Graphics card family	NVIDIA
Maximum graphics card memory	1.024 GB
Modem (RJ-11) ports	0
PS/2 ports quantity	2
USB 2.0 ports quantity	14
Chassis type	Minitower
Product color	Black
Country of origin	China
Number of 3.5\" bays	3
Bundled software	HP ProtectTools
Operating system installed	Windows 7 Professional
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 85 %
Power supply	400 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Certification	ENERGY STAR 5.0
Processor code	SR00K
Processor ARK ID	52273
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Intel Identity Protection Technology version	1.00

Weight and Dimensions

Depth	455 mm
Width	178 mm
Height	447 mm
Weight	10400 g
