Access panel
Before accessing the internal components of the computer, you must remove the access panel.
This section describes how to remove and install the access panel.
Removing the access panel
WARNING! Power off the computer and disconnect the power cord from the electrical outlet before
you remove the computer access panel.
To remove the access panel:
1.
Prepare the computer for servicing by following the
Predisassembly procedures on page 69.
CAUTION: Failure to follow the predisassembly procedures can result in equipment damage or
data loss.
2.
Remove locks that are present such as a cable lock.
3.

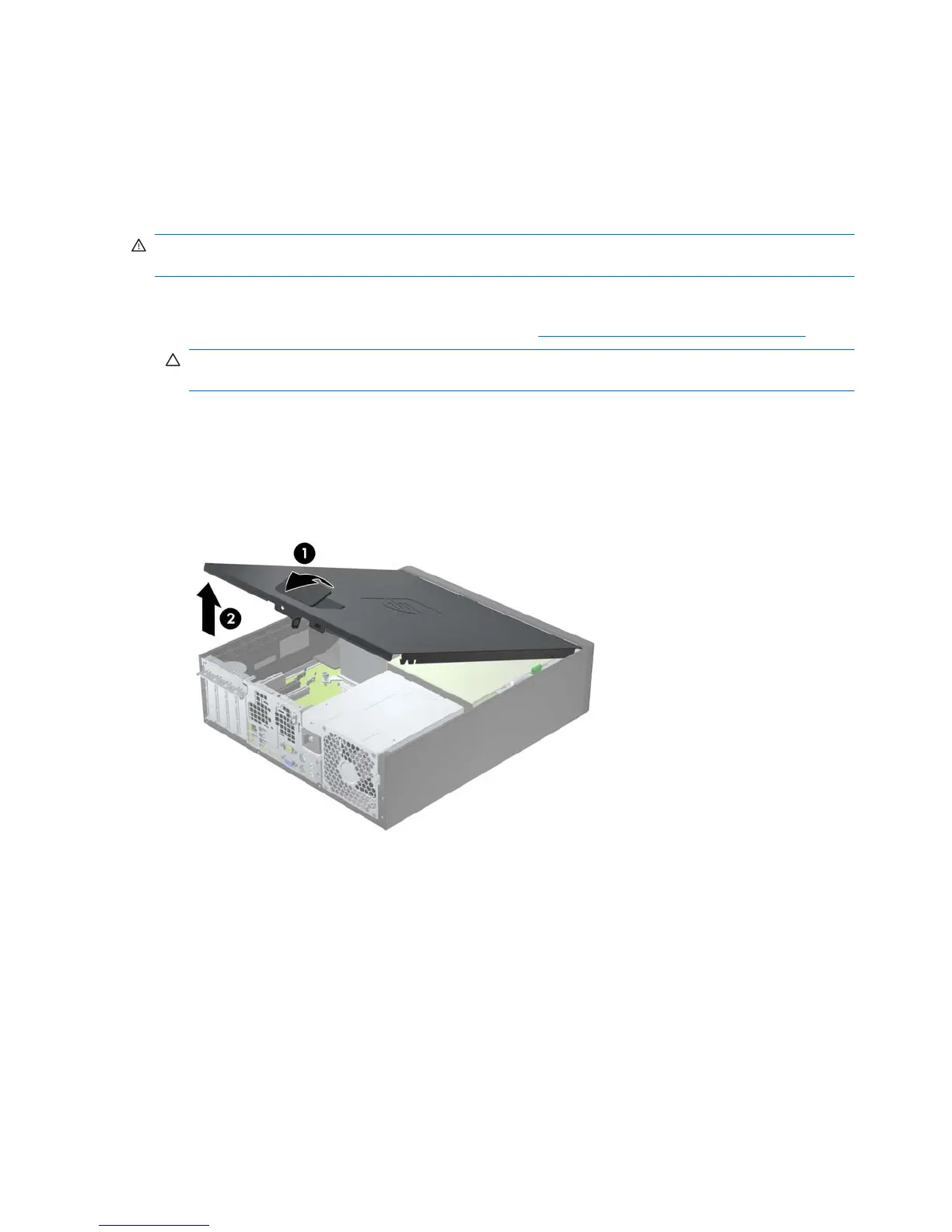

Pull up on the handle (1) and then rotate the panel away from the chassis (2), as shown in the
following figure.
Figure 5-3 Removing the access panel
Installing the access panel
To install the access panel:
1.
Align the front edge of the access panel with the slot on the front of the chassis.
2.
Rotate the back of the panel down onto the chassis, then press firmly until the latch engages.
Replacing the card hold-down bracket
The access panel has a hold-down bracket for PCIe cards mounted on the inside. If you have to replace
the bracket, follow these steps:
1.
Remove the protective strip from the adhesive strip on the bottom of the hold-down (1).
72 Chapter 5 Replacing components ENWW
