1.1 Physical Structure
The physical structure of the 2280 varies depending on the conguration of the
processors and drives. The following uses the server with 12 drives as an example.
When congured with Kunpeng 920 7260, 5250, 5230, 7265, or 5255 processors,
the server provides 32 DDR4 DIMM slots. Figure 1-2 shows the components of the
server.

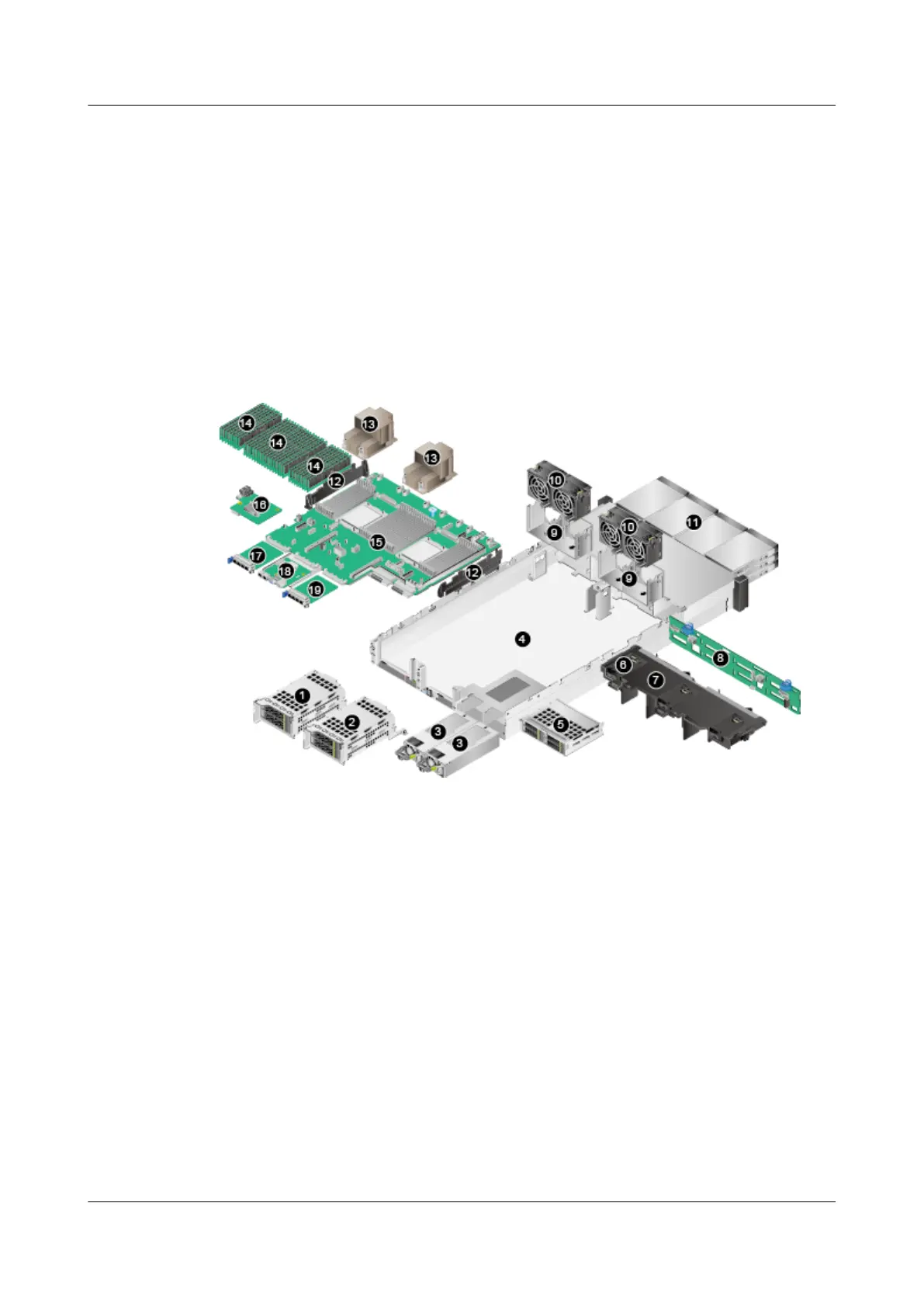

Figure 1-2 Components of the server with Kunpeng 920 7260, 5250, 5230, 7265,
or 5255 processors
1
I/O module 1 2 I/O module 2
3 PSUs 4 Chassis
5 I/O module 3 6 Supercapacitor holder
7 Air duct 8 Front-drive backplane
9 Fan module brackets 10 Fan modules
11 Front drives 12 Cable organizers
13 Heat sinks 14 DIMMs
15 Mainboard 16 RAID controller card
17 FlexIO card 1 18 iBMC card
19 FlexIO card 2 - -
When congured with Kunpeng 920 5220 or 3210 processors, the server provides
16 DDR4 DIMM slots. Figure 1-3 shows the components of the server.
TaiShan 200 Server (Model 2280)
User Guide 1 Overview
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 2
