Drive Activity
Indicator (Green
Indicator)
Drive Fault
Indicator (Yellow
Indicator)
Description
Steady on Steady on A member drive in the RAID array is
faulty.
2.6.3 NVMe SSD Indicators
Figure 2-23 shows the NVMe SSD indicators.

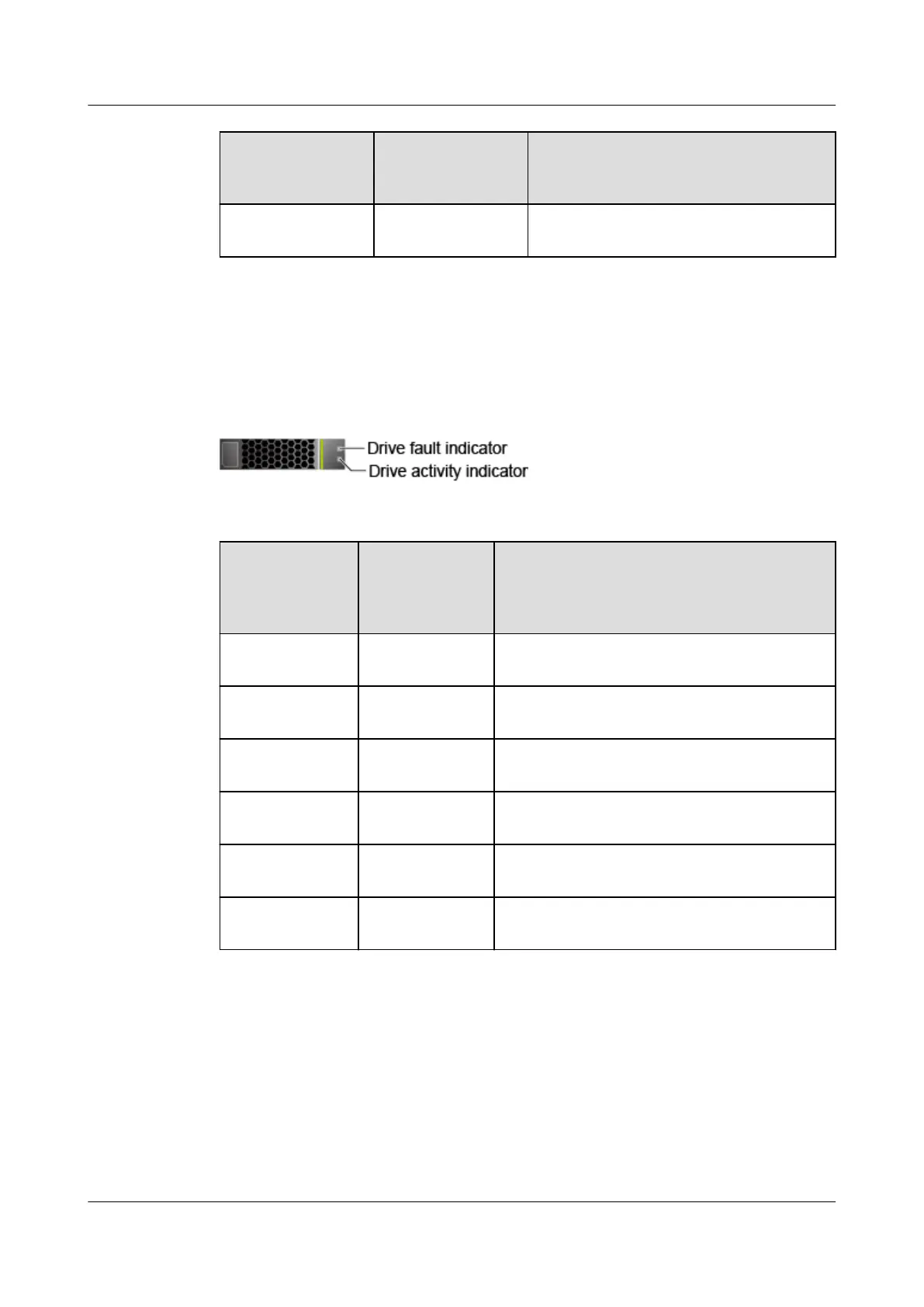

Figure 2-23 NVMe SSD indicators
Table 2-11 NVMe SSD indicators
Drive Activity
Indicator
(Green
Indicator)
Drive Fault
Indicator
(Yellow
Indicator)
State Description
O O The NVMe SSD cannot be detected or the
PCIe link is down.
Steady green O The NVMe SSD is detected and working
properly.
Blinking green
(2 Hz)
O Data is being read from or written to the
NVMe SSD.
O Blinking yellow
(2 Hz)
The NVMe SSD is being located or hot-
swapped.
O Blinking yellow
at 0.5 Hz
The NVMe SSD completes the hot removal
process and is removable.
Steady green or
o
Steady yellow The NVMe SSD is faulty.
2.7 Riser Cards and PCIe Slots
Figure 2-24, Figure 2-25, Figure 2-26, Figure 2-27, and Figure 2-28 show riser
cards supported by I/O modules 1 and 2 in a 2280.
● The riser card shown in Figure 2-24 can be installed in I/O module 1 or 2. It
provides PCIe slots 1 to 3 when installed in I/O module 1 and PCIe slots 4 to 6
when installed in I/O module 2.
TaiShan 200 Server (Model 2280)
User Guide 2 Components
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 25
