2.6.1 Drive Slot Numbers
● Figure 2-16 shows the drive slot numbers of a server with 12 x 3.5-inch drives
in Expander mode.

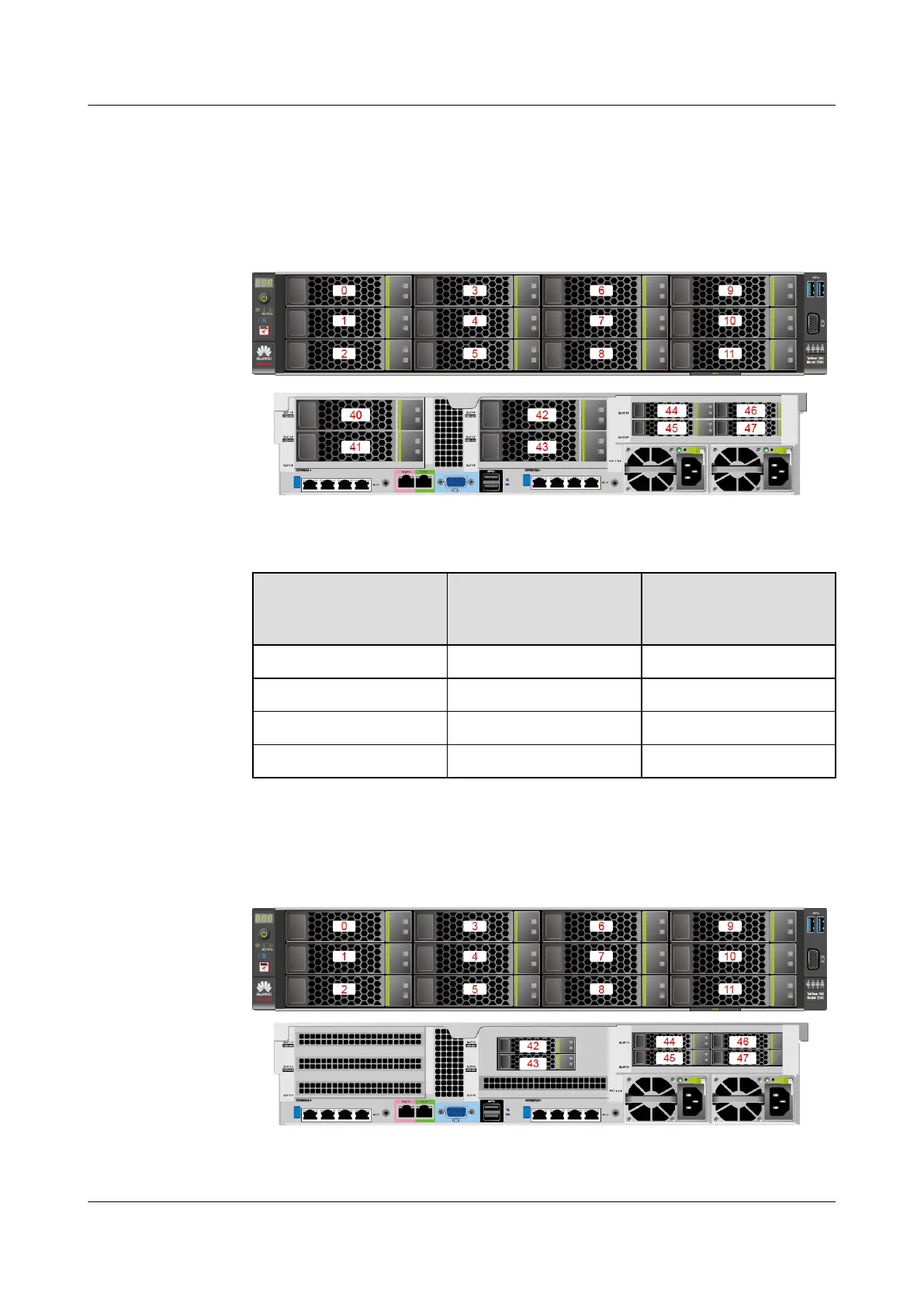

Figure 2-16 Server with 12 x 3.5-inch drives in Expander mode
Table 2-7 Drive slot numbers of a server with 12 x 3.5-inch drives in Expander
mode
Physical Slot Number
Slot Number
Identied by iBMC
Slot Number
Identied by RAID
Controller
40 Disk40 12
41 Disk41 13
42 Disk42 14
43 Disk43 15
● Figure 2-17 shows the drive slot numbers of a server with 12 x 3.5-inch drives
in pass-through mode.
Figure 2-17 Server with 12 x 3.5-inch drives in pass-through mode
● Figure 2-18 shows the drive slot numbers of a server with 25 x 2.5-inch drives
in Expander mode.
TaiShan 200 Server (Model 2280)
User Guide 2 Components
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 20
