2.3 Rear Panel Components

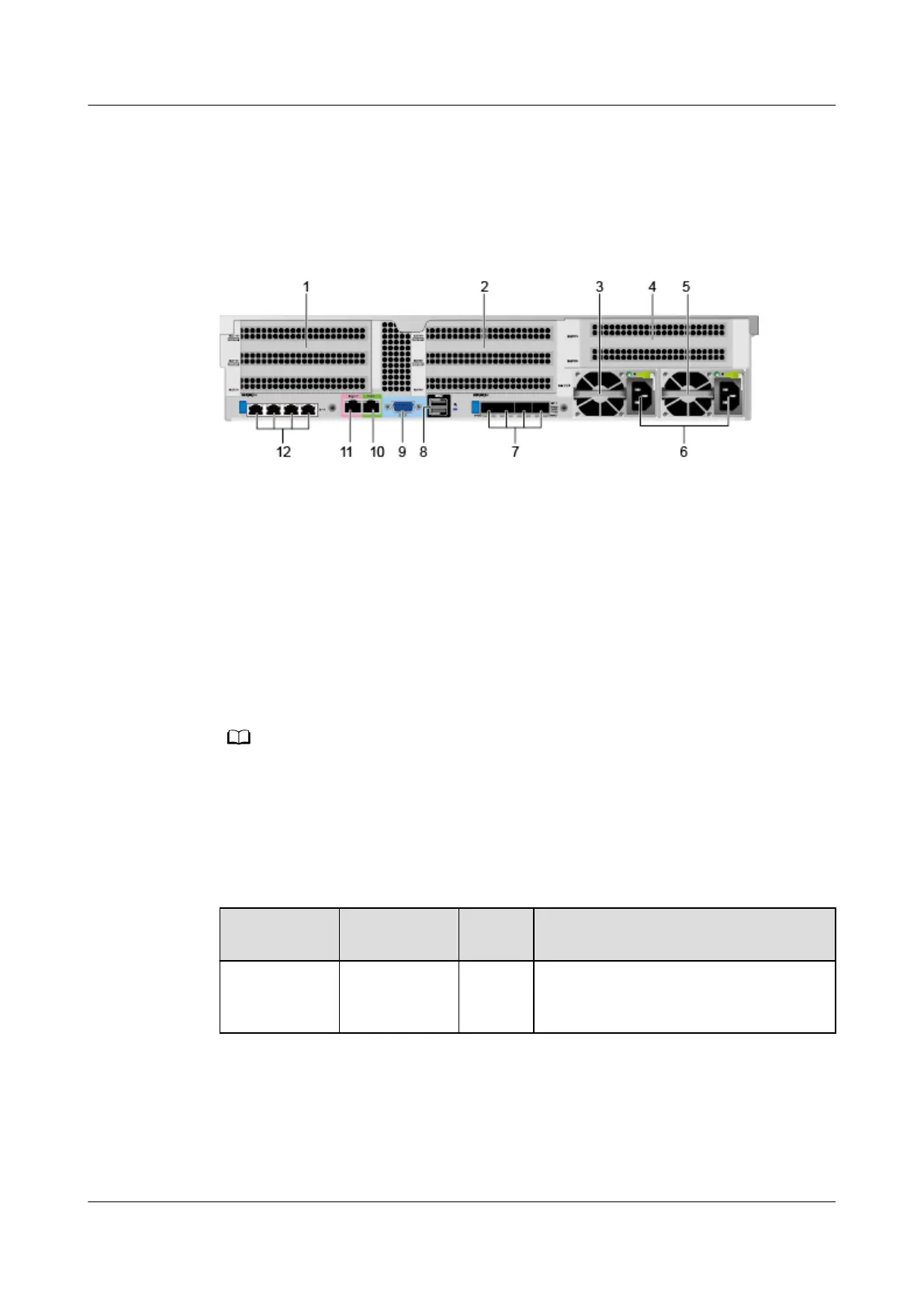

Figure 2-12 shows the components on the rear panel of the server.
Figure 2-12 Rear panel components
1 I/O module 1 2 I/O module 2
3 Power supply unit
(PSU) 1
4 I/O module 3
5 PSU 2 6 PSU socket
7 FlexIO card 2
(connected to CPU 2)
8 USB 3.0 port
9 VGA port 10 Serial port
11 Management network
port
12 FlexIO card 1
(connected to CPU 1)
● I/O modules 1, 2, and 3 can be drive modules or riser modules. The preceding gure is
for reference only.
● FlexIO cards 1 and 2 can use TM210 and TM280. The preceding gure is for reference
only.
● FlexIO card 1 or 2 is not hot-swappable. If you need to replace it, power
o the server.
Table 2-4 Ports on the rear panel
Port
Type Quanti
ty
Description
VGA port DB15 1 The VGA port is connected to a
terminal, such as a monitor or
physical KVM.
TaiShan 200 Server (Model 2280)
User Guide 2 Components
