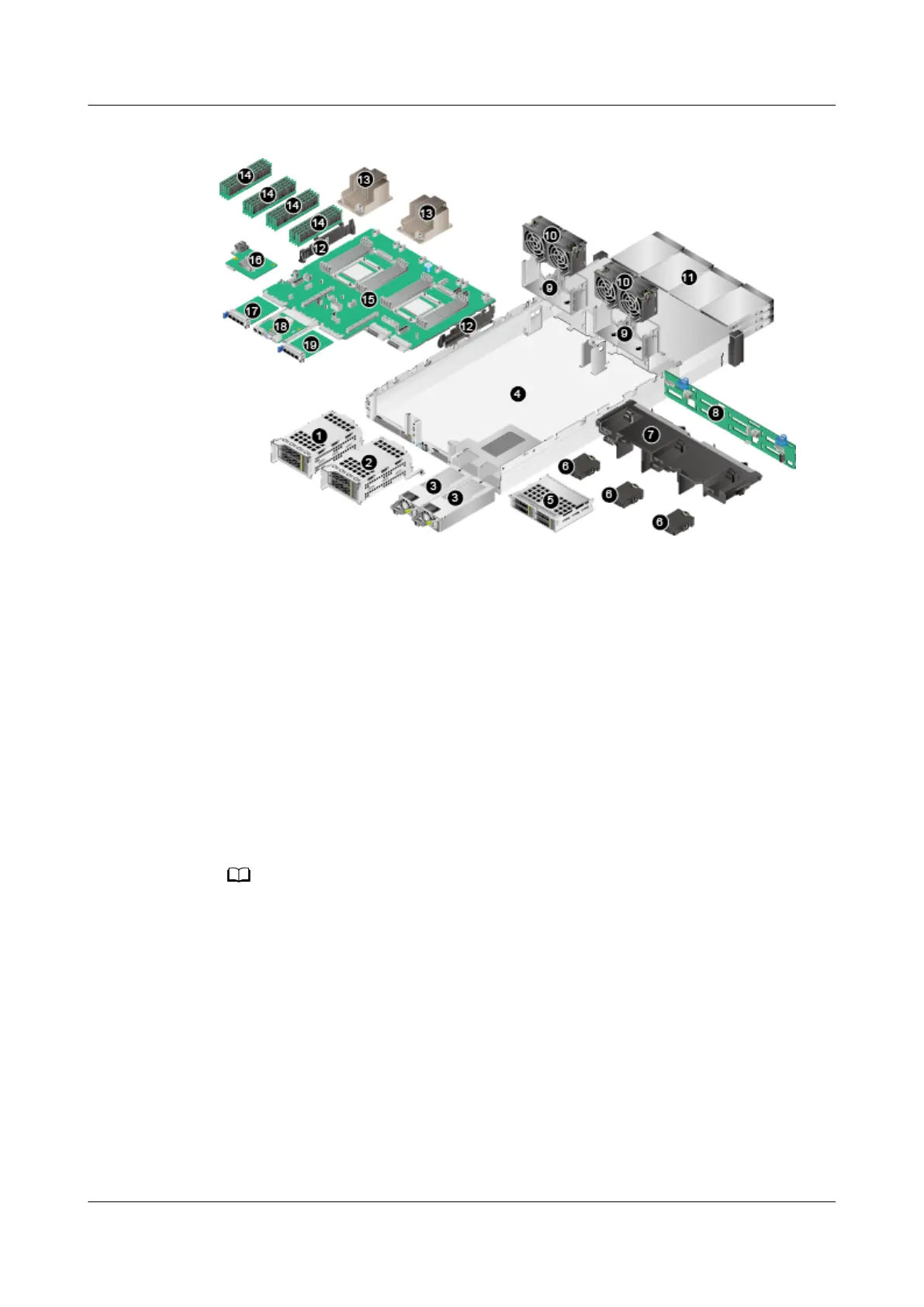

Figure 1-3 Components of the server with Kunpeng 920 5220 or 3210 processors
1 I/O module 1 2 I/O module 2
3 PSUs 4 Chassis
5 I/O module 3 6 Supercapacitor holders
7 Air duct 8 Front-drive backplane
9 Fan module brackets 10 Fan modules
11 Front drives 12 Cable organizers
13 Heat sinks 14 DIMMs
15 Mainboard 16 RAID controller card
17 FlexIO card 1 18 iBMC card
19 FlexIO card 2 - -
● I/O modules 1, 2, and 3 can be drive modules or riser modules. The preceding gure is
for reference only.
● CPUs are integrated on the mainboard and cannot be replaced independently.
● Use the Computing Product Spare Parts Checker to obtain information about the
spare parts.
1.2 Logical Structure
The server supports the Hi1710 or Hi1711 iBMC card, which provides ports such as
the VGA port, management network port, and commissioning serial port. This
document uses the Hi1710 card as an example.
Figure 1-4 shows the logical structure of the 2280 equipped with Kunpeng 920
7260, 5250, 5230, 7265, or 5255 processors.
TaiShan 200 Server (Model 2280)
User Guide 1 Overview
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 3
