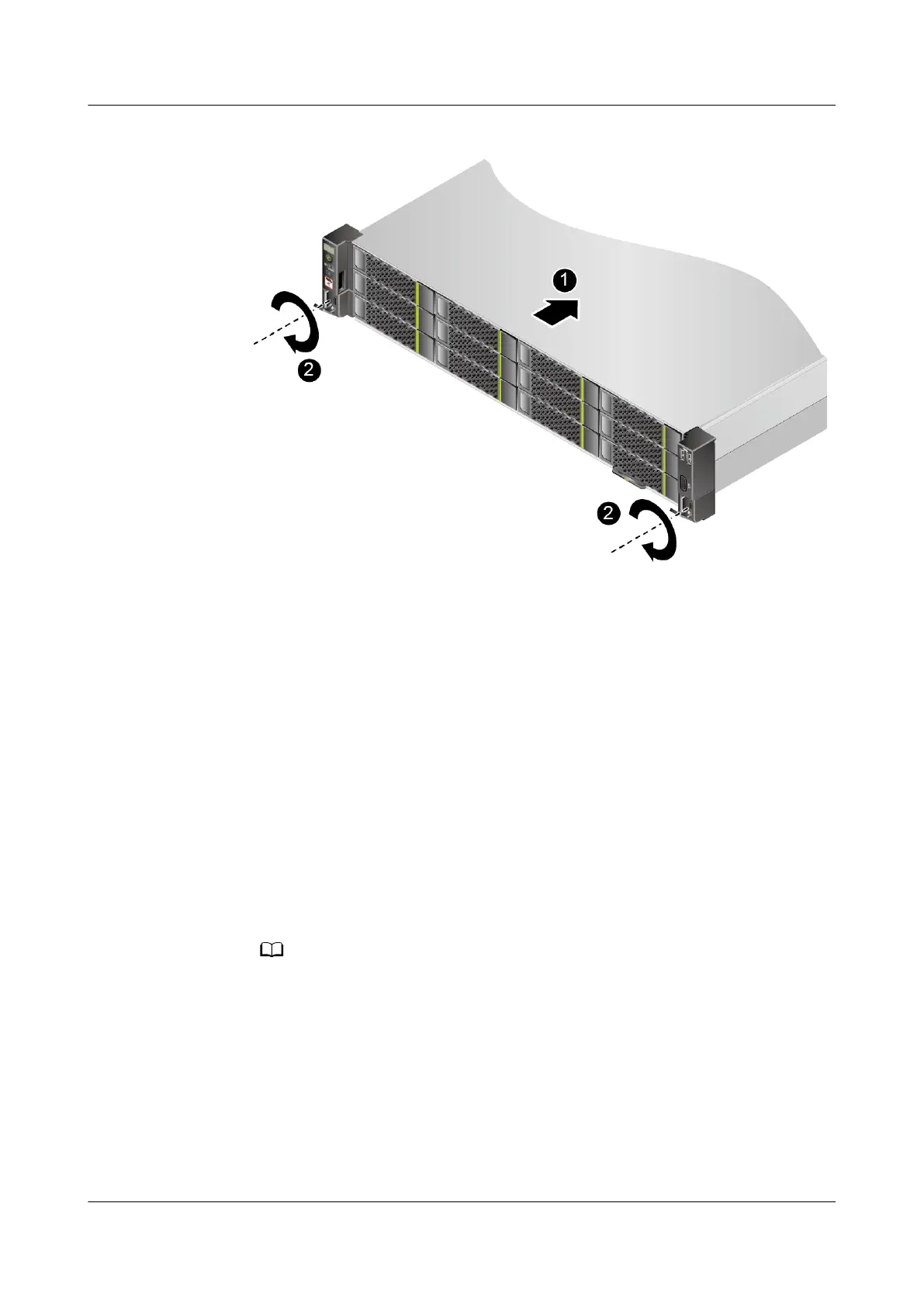

Figure 5-7 Installing the server
3. When the two mounting ears of the server come into contact with the
mounting bars on the cabinet, tighten their captive screws to secure the
server. See (2) in Figure 5-7.
Step 4 Connect the power cables, network cables, VGA cable, and USB device as required,
and power on the server.
----End
5.7.2 Installing with Adjustable Guide Rails
Adjustable guide rails are for a cabinet with a depth of 543.5 mm to 848.5 mm
(21.40 in. to 33.41 in.) between the front and rear mounting bars.
The servers are stackable onto adjustable guide rails.
Step 1 Install the adjustable guide rails.
1. Position a guide rail horizontally in contact with the mounting bars and hook
it onto the cabinet. See (1) in Figure 5-8.
The three holes in each mounting ear of a guide rail should be within 1U boundary
lines.
TaiShan 200 Server (Model 2280)
User Guide 5 Installation and Conguration
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 50
