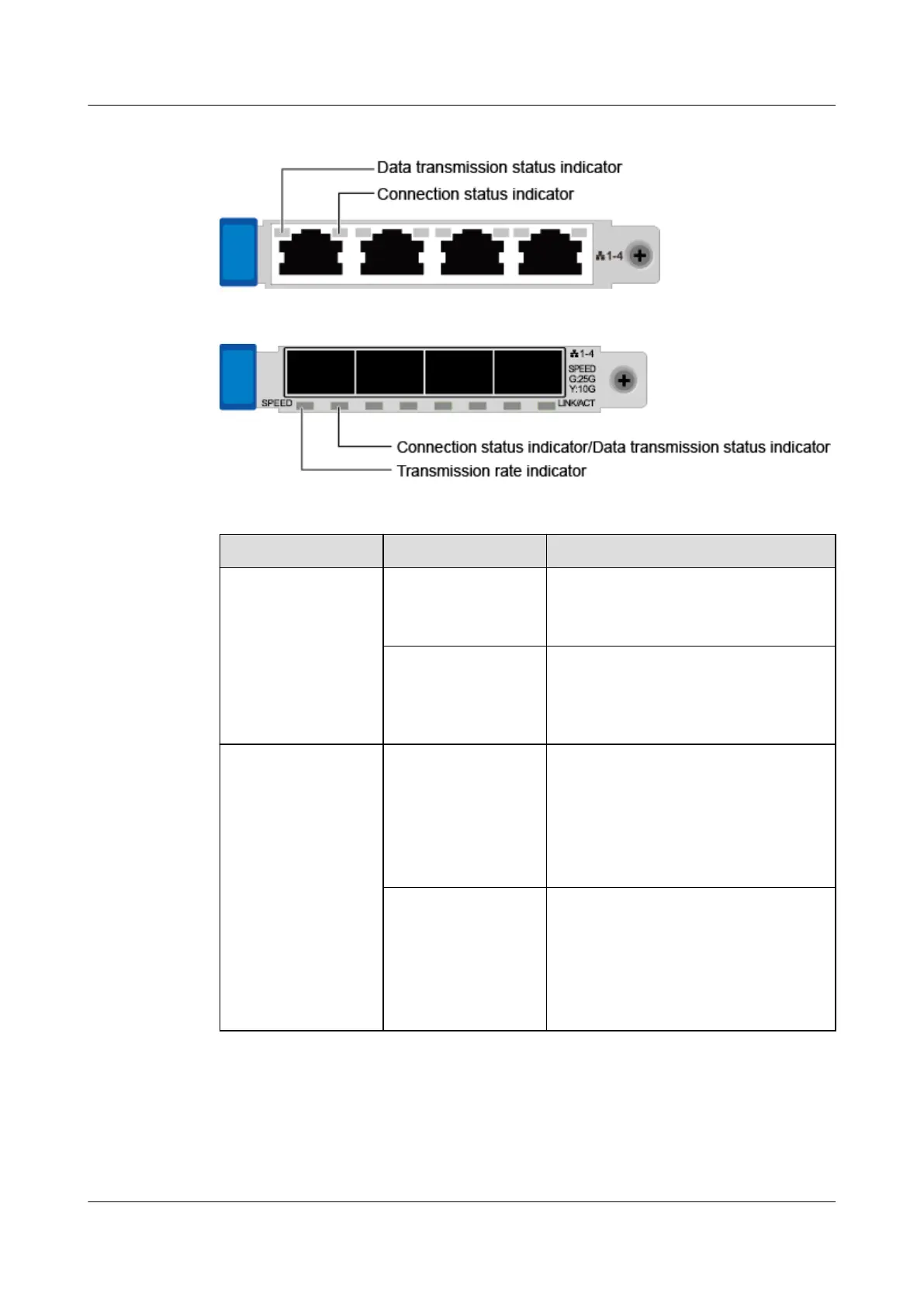

Figure 2-14 TM210 with four GE electrical ports
Figure 2-15 TM280 with four 25GE optical ports
Table 2-6 FlexIO card indicators
NIC Type Indicator State Description
FlexIO card with
four GE electrical
ports
Data transmission
status indicator
● Blinking yellow: Data is being
transmitted.
● O: No data is being transmitted.
Connection status
indicator
● Steady green: The network port
is properly connected.
● O: The network port is not
connected.
FlexIO card with
four 25GE optical
ports
Transmission rate
indicator
● Steady green: The data
transmission rate is 25 Gbit/s.
● Steady yellow: The data
transmission rate is 10 Gbit/s.
● O: The network port is not
connected.
Connection status
indicator/Data
transmission status
indicator
● Steady green: The network port
is properly connected.
● Blinking green: Data is being
transmitted.
● O: The network port is not
connected.
2.6 Drive Slot Numbers and Indicators
TaiShan 200 Server (Model 2280)
User Guide 2 Components
Issue 09 (2021-01-12) Copyright © Huawei Technologies Co., Ltd. 19
