16 TUNING THE ENGINE 103

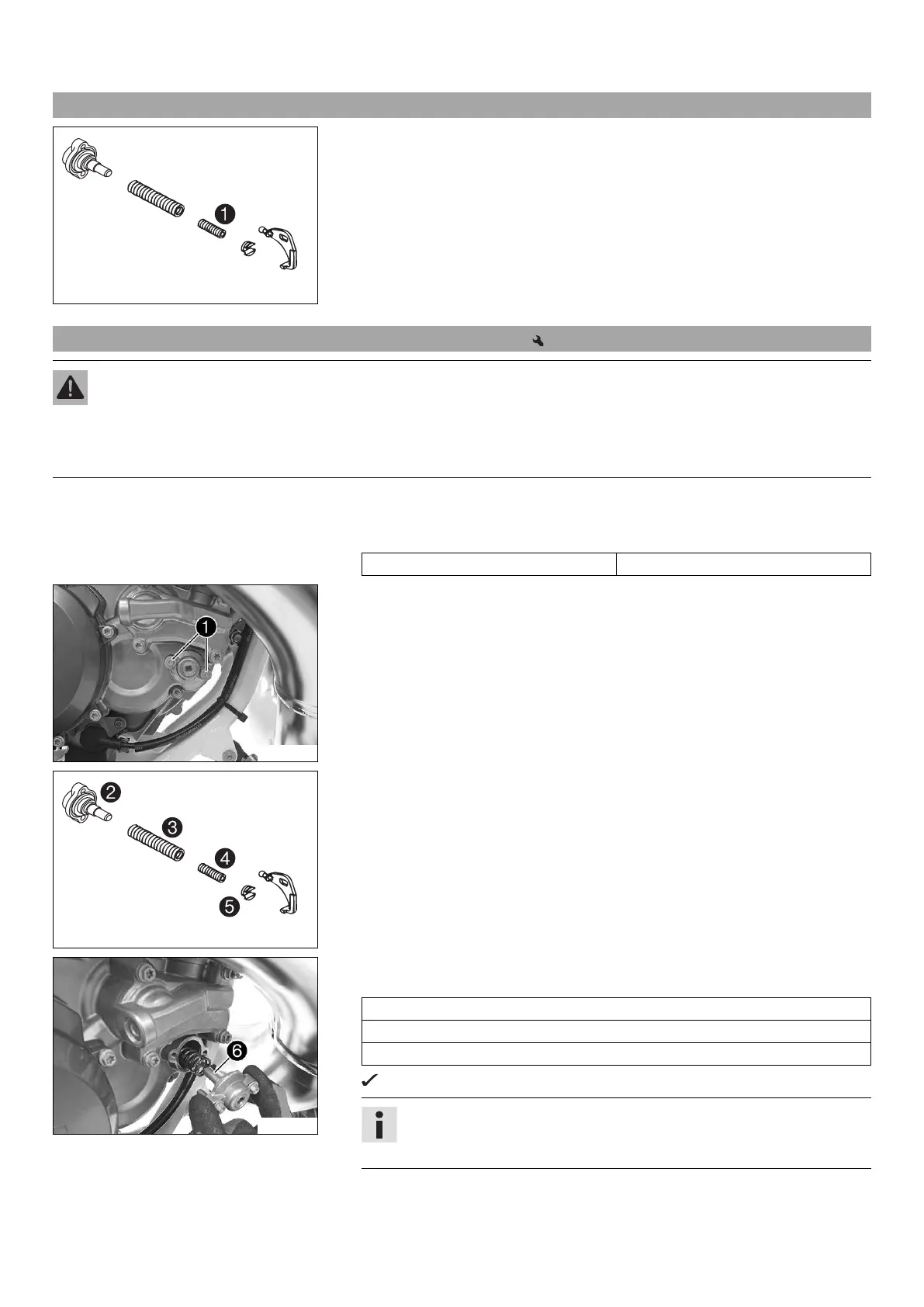

16.11 Engine characteristic – auxiliary spring (TC 250, TX 300)
B00056-10
The auxiliary spring is located on the right side of the engine below the water pump
cover.
Possible states
• Auxiliary spring with yellow marking – Auxiliary spring mounted at the factory
with medium tuning (standard) for good rideability.
• Auxiliary spring with green marking – Auxiliary spring for even softer
performance.
• Auxiliary spring with red marking – Auxiliary spring for aggressive performance.
The engine characteristic can be influenced by different spring strengths of auxiliary
spring
.
16.12 Engine characteristic – setting the auxiliary spring (TC 250, TX 300)
Warning
Danger of burns Some vehicle components become very hot when the vehicle is operated.
– Do not touch any parts such as the exhaust system, radiator, engine, shock absorber, or brake system before the vehicle
parts have cooled down.
– Let the vehicle parts cool down before you perform any work on the vehicle.
Preparatory work
– Tilt the motorcycle to the left and secure against falling in this position.
Guideline
Angle of title approx. 45°
S01281-10
Main work
–
Remove screws
.
B00056-11
–
Remove cap
, adjusting spring
, auxiliary spring
, and spring insert
from the clutch cover.
– Pull both springs off of the spring insert.
S01282-10
–
Mount the required auxiliary spring
and adjusting spring
and position
them together in the clutch cover.
Auxiliary spring with yellow marking (54637072300)
Auxiliary spring with green marking (54837072100)
Auxiliary spring with red marking (54837072000)
The recess in spring insert
engages in the angle lever.
Info
Screw
must not be turned as this would worsen the engine character-
istic.
– Check the O-ring in the cap.
– Position the cap.
