10 TUNING THE CHASSIS 40

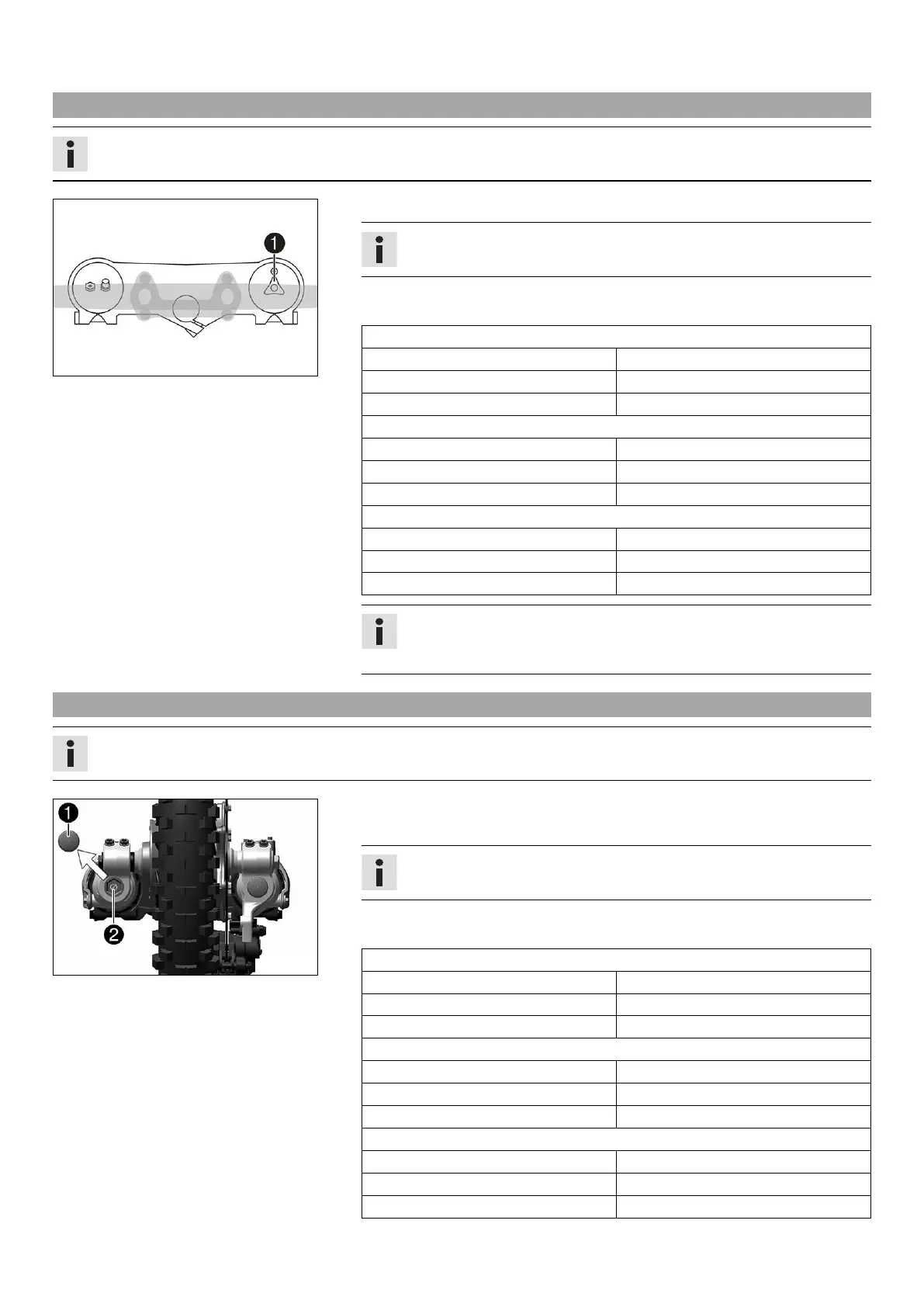

10.14 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
H01178-13
–
Turn adjusting screw
clockwise all the way.
Info
Adjusting screw
is located at the upper end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Compression damping (TC 125)
Comfort 15 clicks
Standard 12 clicks
Sport 9 clicks
Compression damping (TC 250)
Comfort 15 clicks
Standard 12 clicks
Sport 9 clicks
Compression damping (TX 300)
Comfort 15 clicks
Standard 12 clicks
Sport 10 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce
damping.
10.15 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01100-10
–
Remove protection cap
.
–
Turn adjusting screw
clockwise all the way.
Info
Adjusting screw
is located at the lower end of the right fork leg.
– Turn counterclockwise by the number of clicks corresponding to the fork type.
Guideline
Rebound damping (TC 125)
Comfort 20 clicks
Standard 17 clicks
Sport 14 clicks
Rebound damping (TC 250)
Comfort 20 clicks
Standard 17 clicks
Sport 14 clicks
Rebound damping (TX 300)
Comfort 15 clicks
Standard 12 clicks
Sport 10 clicks
