21 TECHNICAL DATA 121

21.3.7 TX 300

Carburetor type MIKUNI TMX 38

Carburetor identification number TMX 38 81

Needle position 3rd position from top

Jet needle 6BFY44-73 (6BFY43-73)

Main jet 430 (420, 440, 450, 460)

Idling jet 37.5 (35/40)

Starting jet 80

Needle jet R‑8

Idle air adjusting screw

Open 1.5 turns

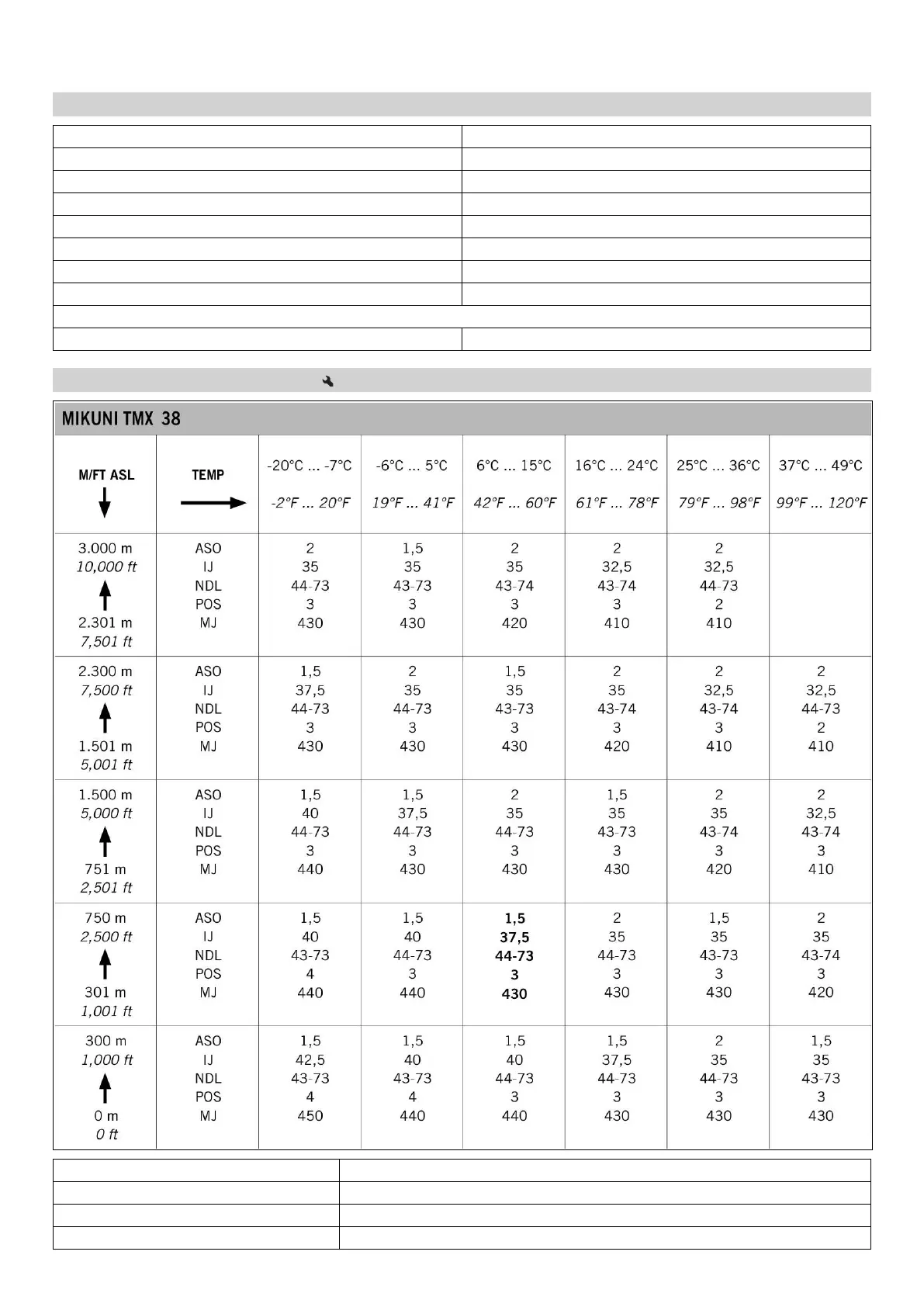

21.3.8 Carburetor tuning (TX 300)

402675-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet

Default Chapter4
- Table of Contents4
1 Means of Representation7
- Symbols Used7
- Formats Used7
2 Safety Advice8
- Use Definition - Intended Use8
- Degrees of Risk and Symbols8
- Tampering Warning8
- Safe Operation9
- Protective Clothing9
- Work Rules9
- Environment9
- Owner's Manual10
3 Important Notes11
- Manufacturer and Implied Warranty11
- Operating and Auxiliary Substances11
- Spare Parts, Accessories11
- Service11
- Figures11
- Customer Service11
4 View of Vehicle12
- View of Vehicle, Front Left (Example)12
- View of Vehicle, Rear Right (Example)13
5 Serial Numbers14
- Chassis Number14
- Type Label14
- Engine Number14
- Fork Part Number14
- Shock Absorber Article Number15
6 Controls16
- Clutch Lever16
- Hand Brake Lever16
- Throttle Grip16
- Kill Switch16
- Electric Starter Button (TX 300)16
- Opening the Filler Cap17
- Closing the Filler Cap17
- Fuel Tap (All TC Models)18
- Fuel Tap (TX 300)18
- Choke19
- Shift Lever19
- Kick Starter20
- Foot Brake Lever20
- Plug-In Stand (All TC Models)20
- Side Stand (TX 300)20
- Service Hour Counter21
7 Preparing for Use22
- Advice on First Use22
- Running in the Engine23
- Preparing the Vehicle for Difficult Riding Conditions23
- Preparing for Rides on Dry Sand23
- Preparing for Rides on Wet Sand25
- Preparing for Rides on Wet and Muddy Surfaces26
- Preparations for Riding at High Temperatures and Low Speeds26
- Preparing for Rides at Low Temperature or in Snow27
8 Riding Instructions28
- Checks and Maintenance Work When Preparing for Use28
- Starting28
- Starting off29
- Shifting, Riding29
- Braking29
- Stopping, Parking30
- Transport30
- Refueling31
9 Service Schedule32
- All TC Models32
- Additional Information32
- Required Work32
- Recommended Work33
- Additional Information33
- Required Work33
- Recommended Work34
10 Tuning the Chassis35
- Checking the Basic Chassis Setting with the Rider's Weight35
- Air Suspension AER 4835
- Compression Damping of the Shock Absorber35
- Adjusting the Low-Speed Compression Damping of the Shock Absorber36
- Adjusting the High-Speed Compression Damping of the Shock Absorber36
- Adjusting the Rebound Damping of the Shock Absorber37
- Measuring the Rear Wheel Dimension Unloaded38
- Checking the Static Sag of the Shock Absorber38
- Checking the Riding Sag of the Shock Absorber39
- Adjusting the Spring Preload of the Shock Absorber39
- Adjusting the Riding Sag40
- Checking the Basic Setting of the Fork40
- Adjusting the Fork Air Pressure41
- Adjusting the Compression Damping of the Fork42
- Adjusting the Rebound Damping of the Fork42
- Handlebar Position43
- Adjusting the Handlebar Position43
11 Service Work on the Chassis45
- Raising the Motorcycle with a Lift Stand45
- Removing the Motorcycle from the Lift Stand45
- Bleeding the Fork Legs46
- Cleaning the Dust Boots of the Fork Legs46
- Removing the Fork Legs46
- Installing the Fork Legs47
- Removing the Fork Protector47
- Installing the Fork Protector48
- Removing the Lower Triple Clamp48
- Installing the Lower Triple Clamp49
- Checking the Play of the Steering Head Bearing50
- Adjusting the Steering Head Bearing Play51
- Greasing the Steering Head Bearing51
- Removing the Start Number Plate52
- Installing the Start Number Plate52
- Removing the Front Fender52
- Installing the Front Fender53
- Removing the Shock Absorber53
- Installing the Shock Absorber54
- Removing the Seat55
- Mounting the Seat56
- Removing the Air Filter Box Cover57
- Installing the Air Filter Box Cover58
- Removing the Air Filter58
- Cleaning the Air Filter and Air Filter Box59
- Installing the Air Filter60
- Sealing the Air Filter Box60
- Removing the Main Silencer60
- Installing the Main Silencer61
- Changing the Glass Fiber Yarn Filling in the Main Silencer61
- Removing the Right Side Cover62
- Installing the Right Side Cover63
- Removing the Fuel Tank63
- Installing the Fuel Tank65
- Checking the Chain for Dirt66
- Cleaning the Chain66
- Checking the Chain Tension67
- Adjusting the Chain Tension67
- Checking the Chain, Rear Sprocket, Engine Sprocket, and Chain Guide68
- Checking the Frame70
- Checking the Swingarm70
- Checking the Throttle Cable Routing70
- Checking the Rubber Grip71
- Adjusting the Basic Position of the Clutch Lever71
- Checking/Correcting the Fluid Level of the Hydraulic Clutch72
- Changing the Hydraulic Clutch Fluid72
12 Brake System74
- Checking the Free Travel of the Hand Brake Lever74
- Adjusting the Basic Position of the Hand Brake Lever74
- Checking the Brake Discs74
- Checking the Front Brake Fluid Level75
- Adding Front Brake Fluid75
- Checking the Front Brake Linings76
- Changing the Front Brake Linings76
- Checking the Free Travel of Foot Brake Lever78
- Adjusting the Basic Position of the Foot Brake Lever78
- Checking the Rear Brake Fluid Level79
- Adding Rear Brake Fluid80
- Checking the Rear Brake Linings81
- Changing the Rear Brake Linings81
13 Wheels, Tires83
- Removing the Front Wheel83
- Installing the Front Wheel83
- Removing the Rear Wheel84
- Installing the Rear Wheel85
- Checking the Tire Condition86
- Checking the Tire Air Pressure86
- Checking Spoke Tension86
14 Electrical System88
- Removing the Battery (TX 300)88
- Installing the Battery (TX 300)88
- Recharging the Battery (TX 300)89
- Changing the Main Fuse (TX 300)90
15 Cooling System92
- Radiator Cover (TC 125)92
- Installing the Radiator Cover (TC 125)92
- Removing the Radiator Cover (TC 125)93
- Checking the Antifreeze and Coolant Level93
- Checking the Coolant Level94
- Draining the Coolant95
- Refilling with Coolant95
16 Tuning the Engine98
- Checking the Play in the Throttle Cable98
- Adjusting the Play in the Throttle Cable98
- Carburetor Setting99
- Carburetor - Idle101
- Carburetor - Adjusting the Idle Speed101
- Emptying the Carburetor Float Chamber102
- Plug-In Connector of Ignition Timing Map Adjustment103
- Changing the Ignition Timing Map104
- Checking the Basic Position of the Shift Lever104
- Adjusting the Basic Position of the Shift Lever104
- Engine Characteristic - Auxiliary Spring (TC 250, TX 300)105
- Engine Characteristic - Setting the Auxiliary Spring (TC 250, TX 300)105
17 Service Work on the Engine107
- Checking the Gear Oil Level107
- Changing the Gear Oil107
- Adding Gear Oil109
18 Cleaning, Care110
- Cleaning the Motorcycle110
19 Storage111
- Preparing for Use after Storage111
20 Troubleshooting112
21 Technical Data114
- Engine114
- Engine Tightening Torques115
- Tx 300115
- Tc 250116
- Carburetor119
- Carburetor - Basic Setting for Sandy Surfaces (TC 125)119
- Carburetor Tuning (TC 125)120
- Carburetor - Basic Setting for Sandy Surfaces (TC 250)121
- Carburetor Tuning (TC 250)122
- Carburetor Tuning (TX 300)123
- Capacities124
- Gear Oil124
- Coolant124
- Fuel124
- Chassis124
- Electrical System125
- Tires125
- Fork125
- Shock Absorber126
- Tc 250127
- Chassis Tightening Torques128
22 Substances130
23 Auxiliary Substances132
24 Standards133
25 List of Abbreviations134
- Index135
