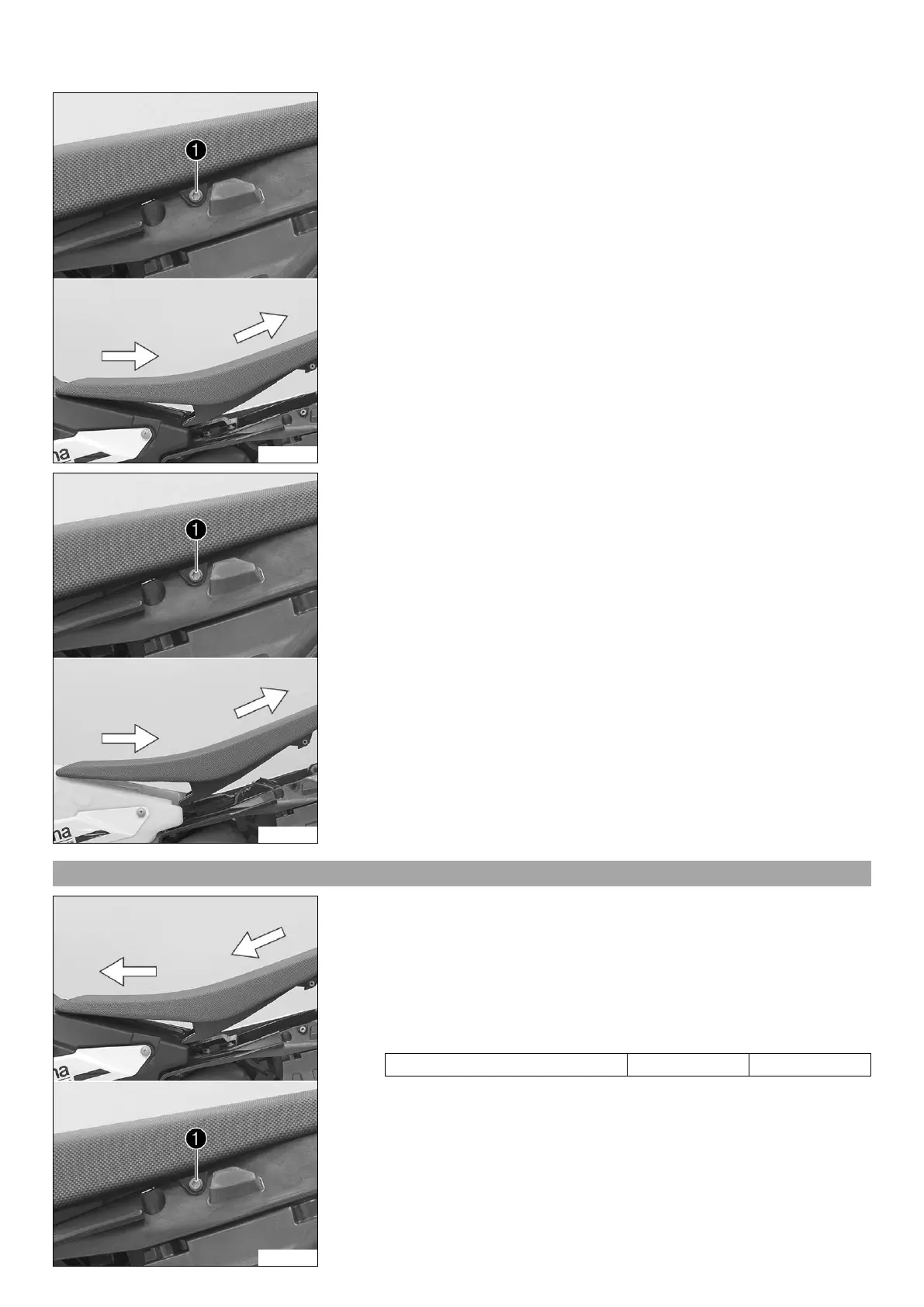

11 SERVICE WORK ON THE CHASSIS 54

F00237-10

Main work

(All TC models)

–

Remove screw



– Pull seat back and lift it off.

F00107-10

(TX 300)

–

Remove screw



– Pull seat back and lift it off.

11.21 Mounting the seat

F00238-10

Main work

(All TC models)

– Mount the front of the seat on the collar bushing of the fuel tank and the rear

in the bracket.

– Push the seat forward.

– Make sure that the seat is correctly locked in.

–

Mount and tighten screw



Guideline

Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
