21 TECHNICAL DATA 118

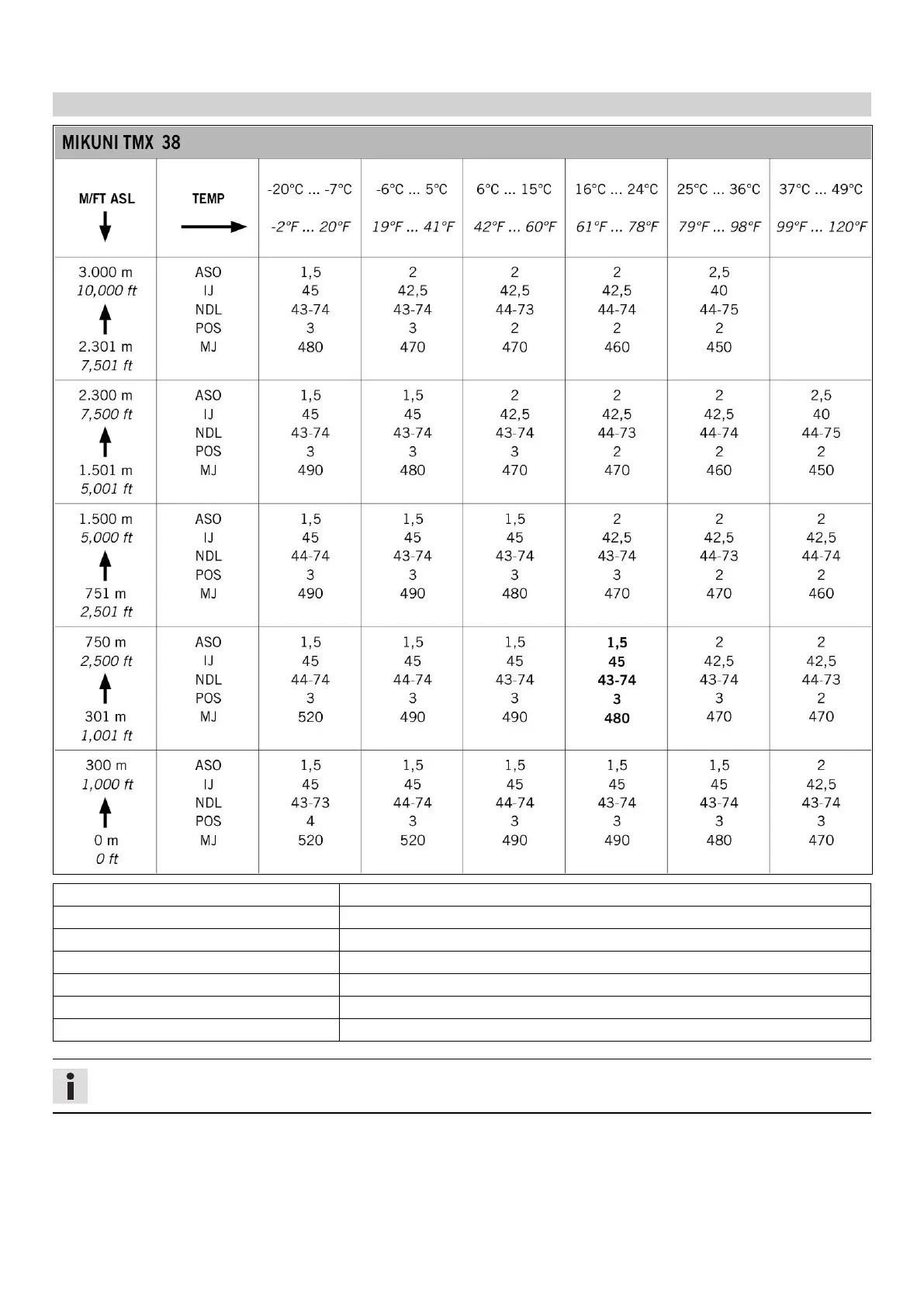

21.3.3 Carburetor tuning (TC 125)

402669-01

M/FT ASL Sea level

TEMP Temperature

ASO Idle air adjusting screw open

IJ Idling jet

NDL Needle

POS Needle position from top

MJ Main jet

Info

Do not use on sandy terrain.
