11 SERVICE WORK ON THE CHASSIS 46

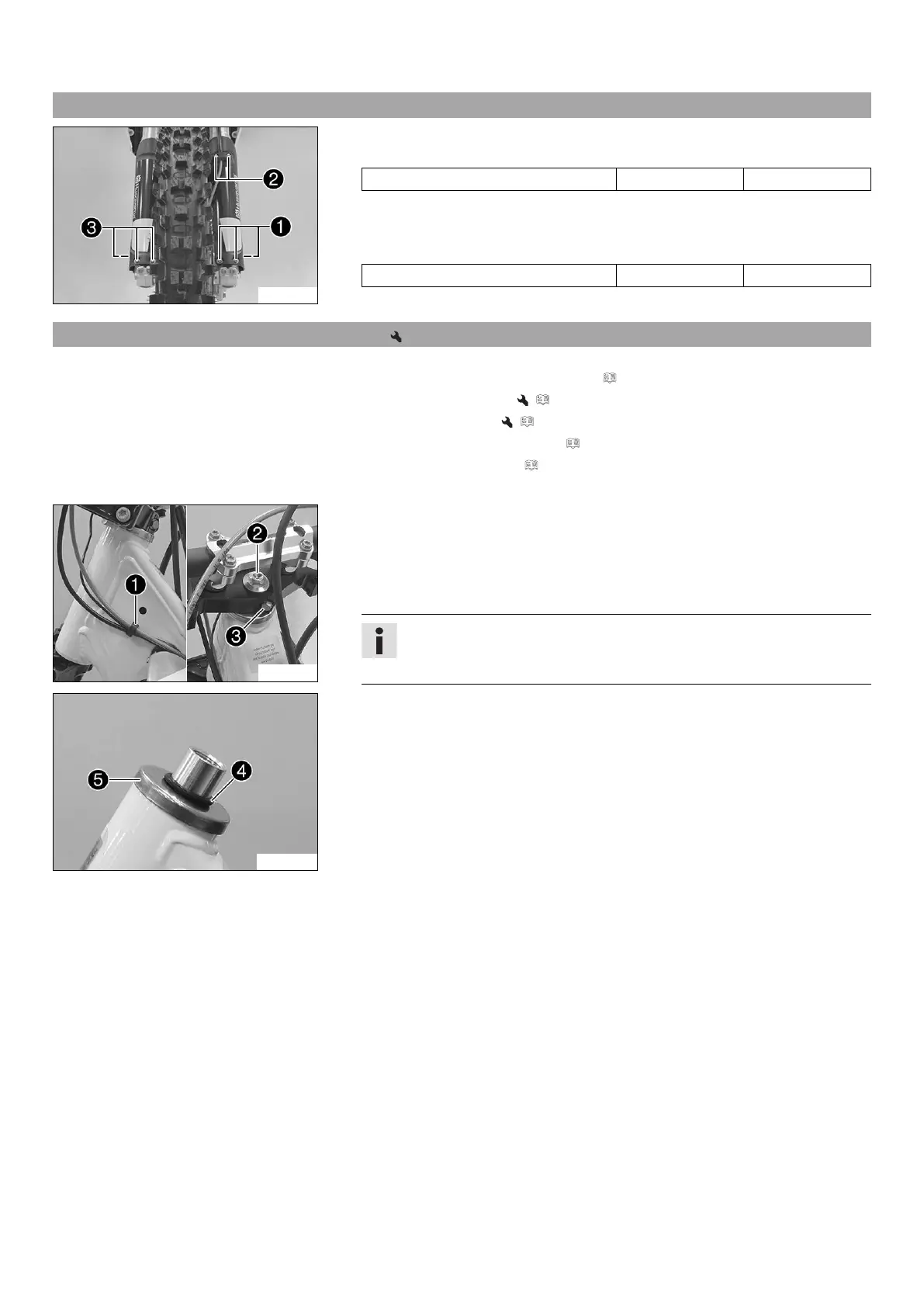

11.8 Installing the fork protector
F00047-11
–
Position the fork protector on the left fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
–
Position the brake line and clamp. Mount and tighten screws
.
–
Position the fork protector on the right fork leg. Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
11.9 Removing the lower triple clamp
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 43)
– Remove the front wheel. ( p. 81)
– Remove the fork legs. ( p. 44)
– Remove the start number plate. ( p. 50)
– Remove the front fender. ( p. 50)
– Remove the handlebar cushion.
F00236-10
Main work
–
Take off cable holder
in front of the left radiator.
–
Remove screw
.
–
Remove screw
.
– Take off the upper triple clamp with the handlebar and set it aside.
Info
Protect the components against damage by covering them.
Do not bend the cables and lines.
H01528-10
–
Remove O-ring
. Remove protective ring
.
– Take off the lower triple clamp with the steering stem.
– Remove the upper steering head bearing.
