T roubleshooting
if the figure K does not change pressing the key HAND, the probable malfunc-
tioning is due to the console key that does not deliver power when closed.

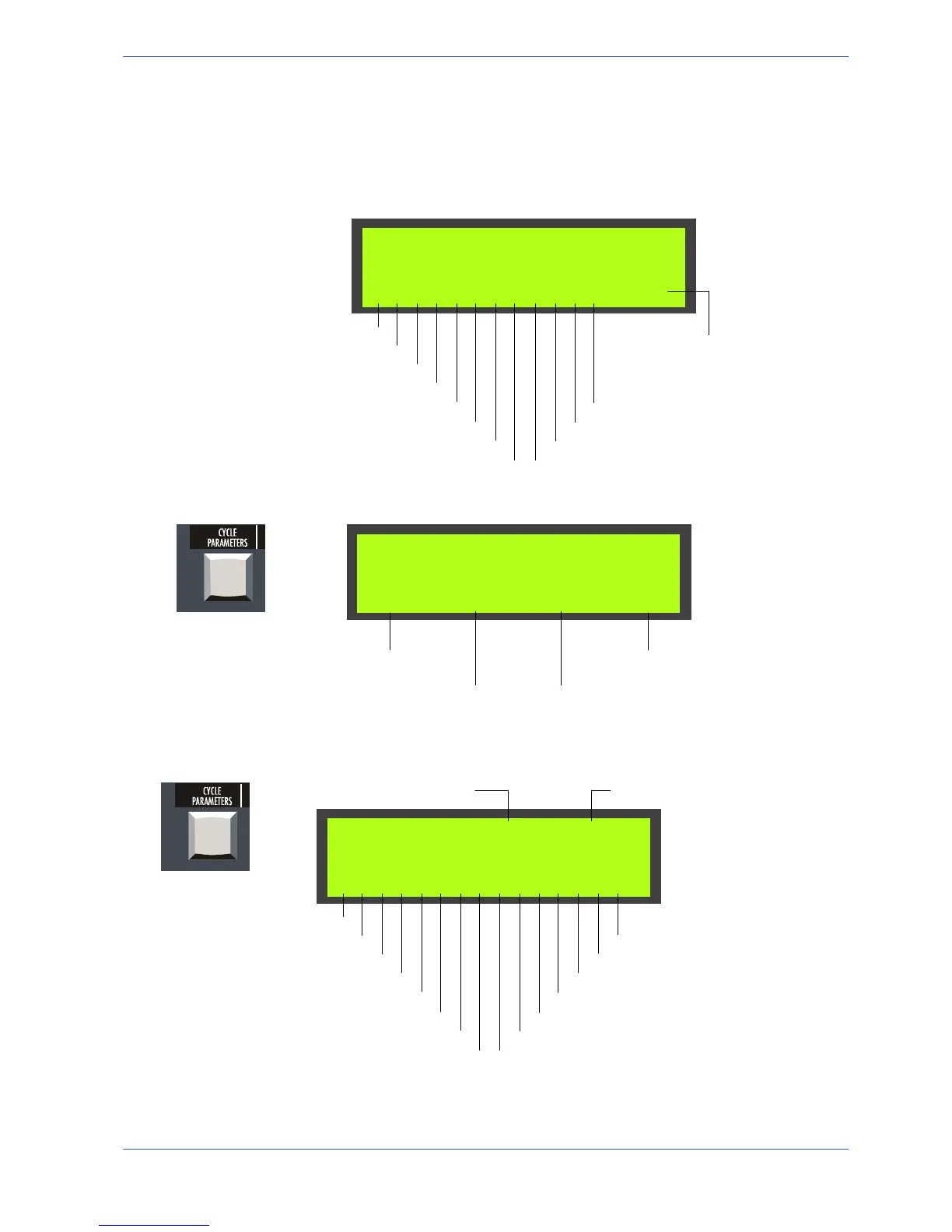

List of IUD- IUV card INPUTS
" the digits 0 and 1 shown in the display lower line indicate the status OFF (0)
or ON (1) of each single input;
010000000000 00
KEY:00 INGRESSI:
Foot pedal
Bladeguard L.S.
Head control lever handgrip
Foot pedal
Not used
Oil level
Not used
Speed switch
Inverter failure
Not used
Not used
Not used
Emergency (01)
Reset (11)
" Starting from the video page of the digital inputs, press the key “arrow up”
once to display the list of the analogic inputs of the board IUD/IUV:
IML
000
Blade tensioner
Analogic input no. 4 (not used)
Head position potentiometer
010 000
PT
TL
ia4
048
Blade motor current
List of IUD- IUV card OUTPUTS
" Starting from the video page of the digital inputs, press the key “arrow up”
once to display the list of the outputs of the board IUD/IUV:
Hydraulic control unit
Blade motor
Inverter start
010000000000000
USCITE: SI=0 L=1
Regenerator solenoid valve
Min. lubrication solenoid valve
Head Upstroke
Vice Closure
Coolant electric pump
Vice Opening
Head Downstroke
Not used
Not used
Bypass solenoid v.
Not used
Not used
Not used
Display backlighting
