Use and maintenance manual S20DSP

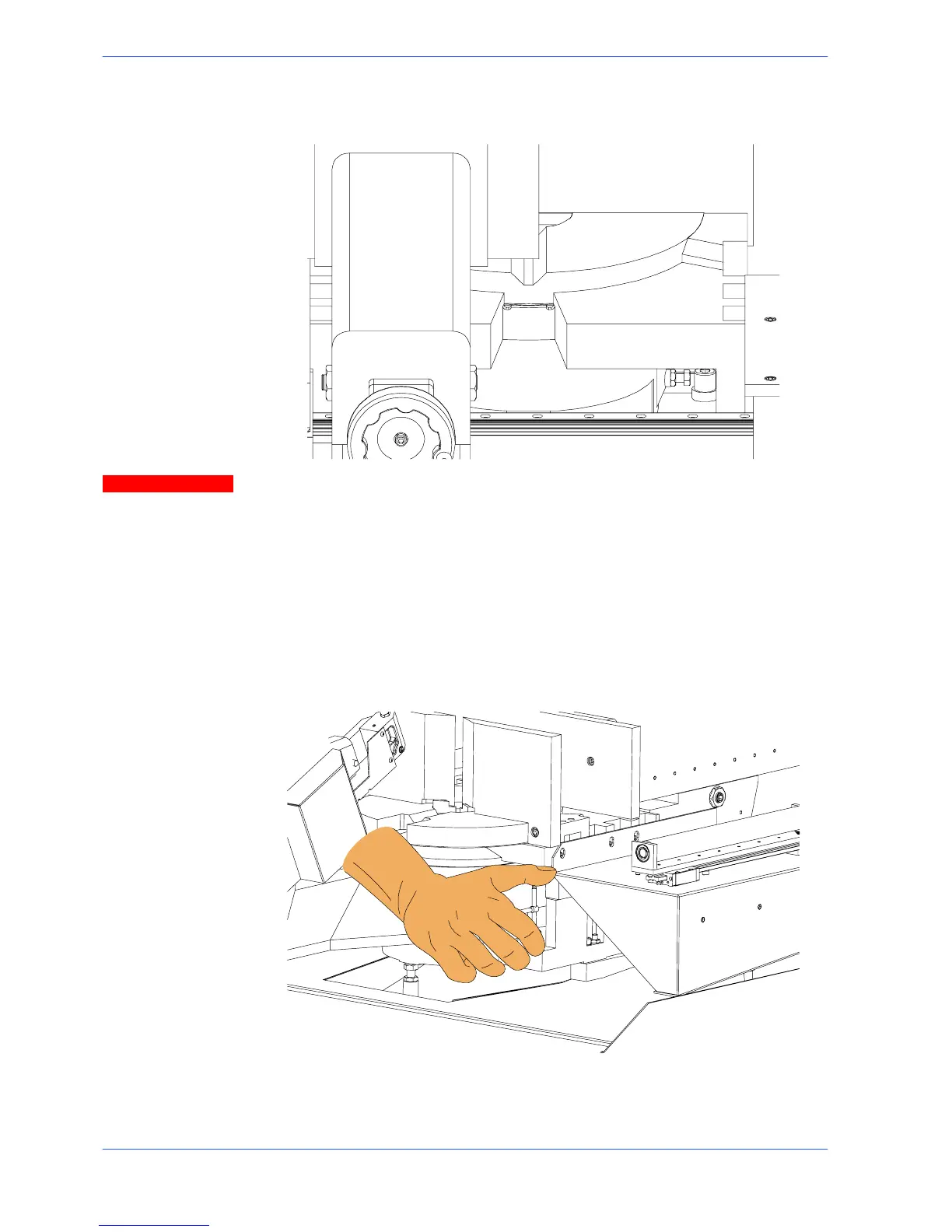

" Swing the head from left to right until it is positioned at the required angle, as
indicated by the graduated scale on the turntable.
Always rotate the head when it is in the upper position to avoid blade collision
with the moving jaw on the clamp.
" Relock the turntable lock/release lever.
" Perform the cut keeping in mind the preliminary safety i nstructions noted in
this chapter.
Angled cu ts 60˚ to the left
" Ensure that the vice is positioned on the left of the cutting slit at 05, see the
previous paragraph;
" Release the the block/unblock head rotating surface lever.
" remove the pre---set stroke to 45˚ left;
Attention
