Use and maintenance manual S20DSP
" make sure the workpiece dimensions do not exceed the machine’s cutting ca-
pacity;
" make sure the piece is correctly supported on both sides of the machine;

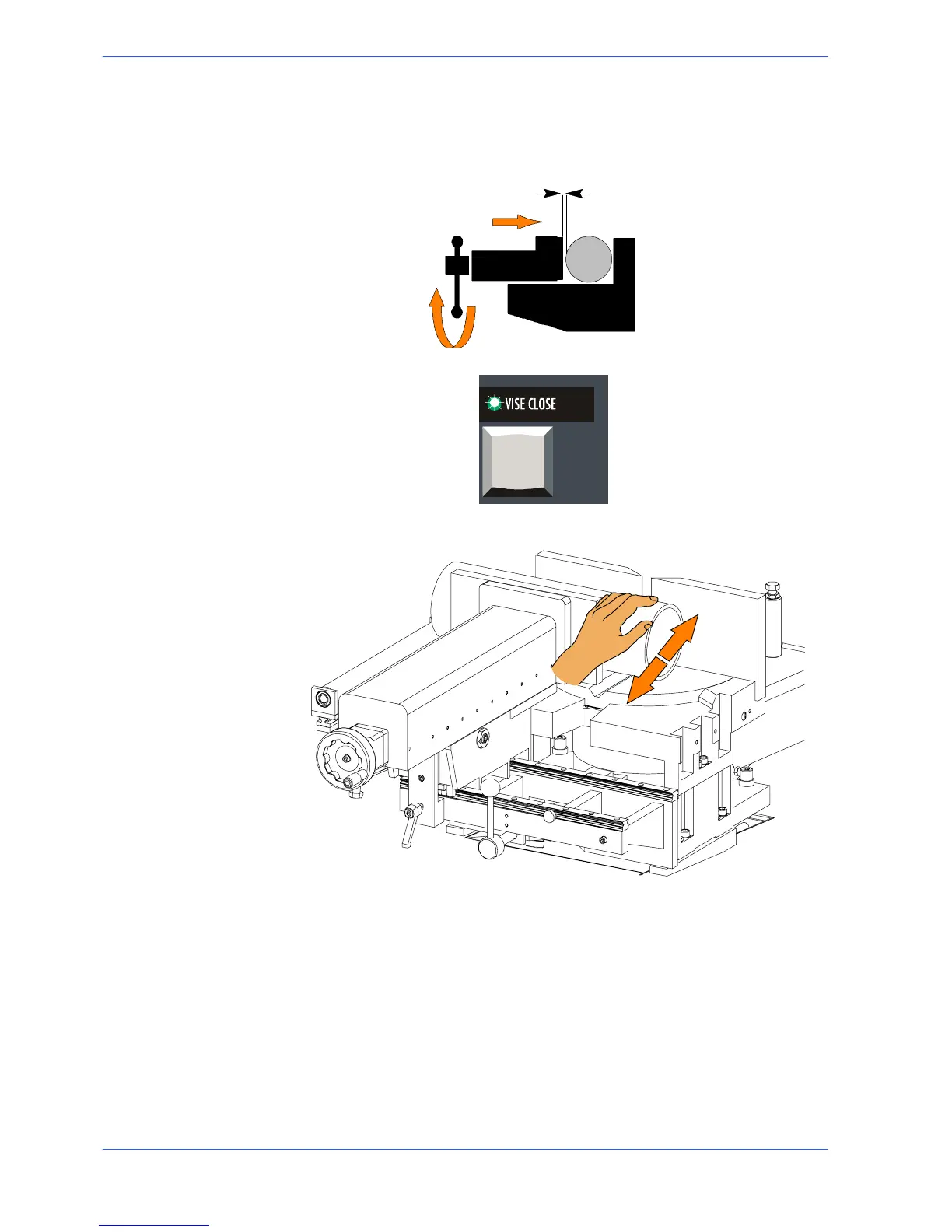

" move the vice to within 2÷3 mm of the workpiece using the handwheel.
2/3 mm
" Turn the selector for the closure of the vice;
" make sure the workpiece is securely clamped in the vice by trying to move it
manually.
Rapid vice positioning
By means of a simple device the vice can be slid back and forth to accelerate vice
opening and closing operations.
