7--5
88
Adjustments

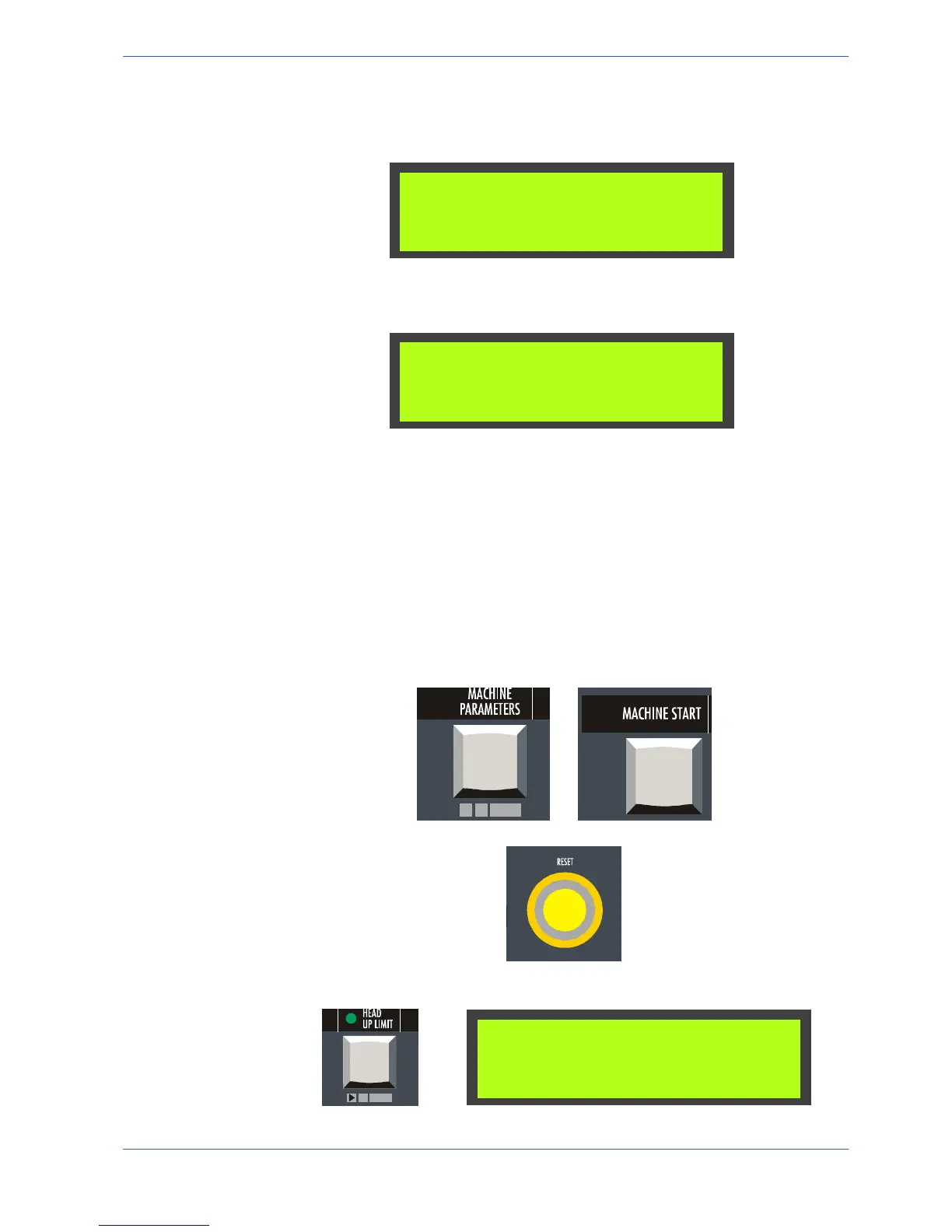

Setting minimum blade tensioning
The machine will enter emergency mode if the band is not tensioned correctly.
This parameter allows to set the minimum blade tension threshold (Kg 600);
TIGHTENING = 0600
MIN. BLADE
Display backlightin g t ime setting
" Press the " key to display the LCD backlighting time parameter, then press
the Y and " keys to set the time expressed in minutes.
TIME = 10
LCD BACKLIGHTING
Cutting head stroke
The cutting head crosses the space between the forward and backward position
definable in the SET---UP with the CUTTING HEAD POSITION parameter. A
value between 000 and 300 must be set. Check that the bow, really and not
virtually, crosses the amplitude of the cut between the structural limits of cutting
head backward end run and cutting head forward end run. The scope of adjust-
ment is to set the value of the real cutting head position both at FCTI (backward
limit 275÷300) and at FCTA (forward limit 008÷012). Two adjustments are
performed to obtain this result: one on the cutting head cylinder and the other on
the IUD/IUV layout of the M30 controller. Operation sequences:
" Power the machine r otating the main switch on the left side of the console;
" Press simultaneously and in sequence the keys MAC HINE PARAMETERS
and MACHINE START;
" Press the RESET.
" scroll the machine parameters with the key indicated in the figure till reach-
ing the following video page:
HEAD POSITION = 150
FCTI/FCTA LIMIT
