Use and maintenance manual S20DSP
Anchoring the machine

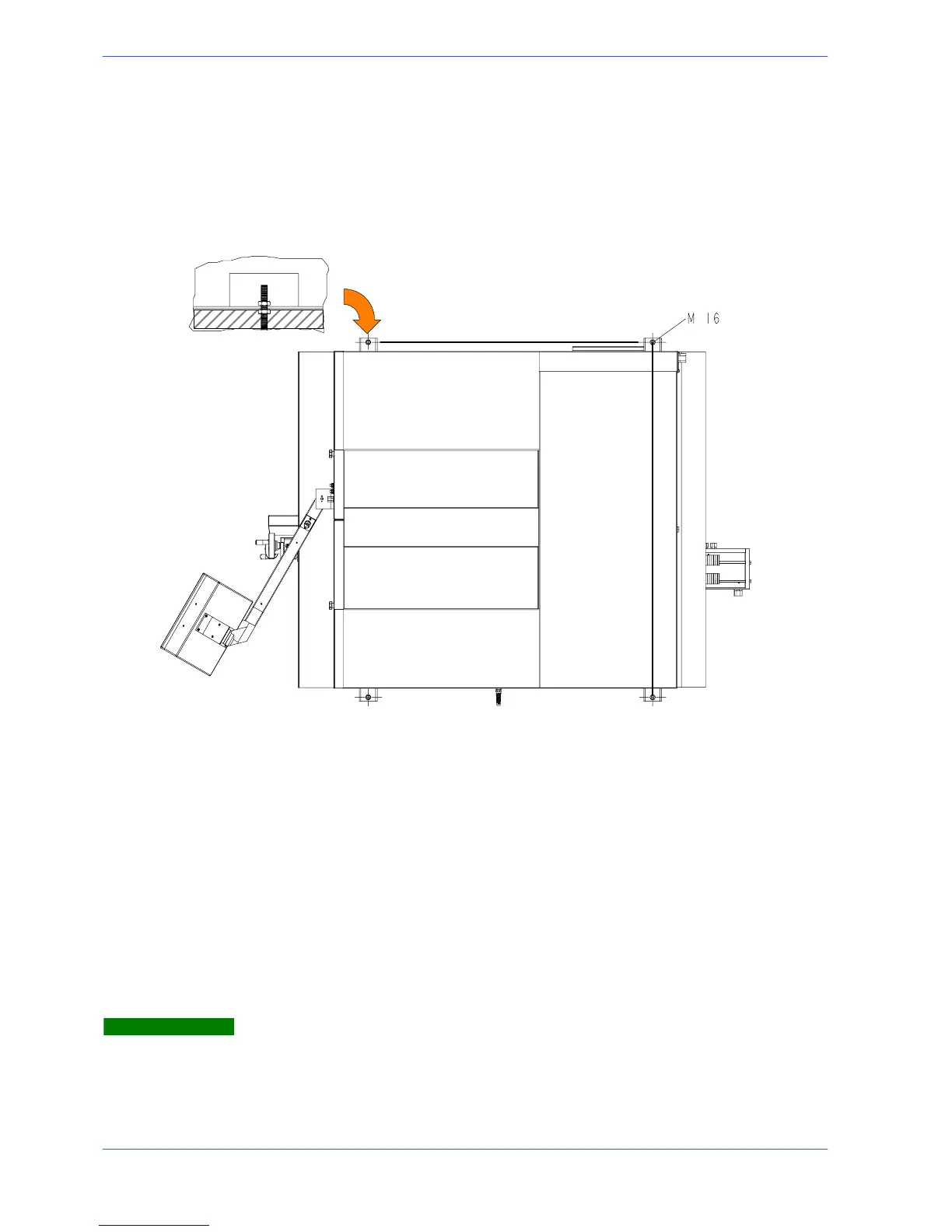

The base of the machine is anchored to the floor by two permanent studs located
on the sides of the base. The studs are screwed into nuts previously sunk into the
concrete, and tightened from above with lock nuts. The schematic specifications
set out in Chapter 1 should be taken into account when positioning the machine.
BASE
1138
1296
Minimum requirements
For the machine to function correctly, the room in which it is to be installed must
satisfy the following requirements:
H power supply voltage/frequency: refer to the values on the rating plate;
H pneumatic operating pressure: not less than 6 Bar and not more than 8 Bar;
H temperature of machine location: from -- 10 to + 50ٛ C;
H relative humidity: not more than 90%
H lighting: not less than 500 Lux.
The machine is already protected against voltage variations, but will only run
trouble--free if the variations do not exceed ± 10%.
