1--1
Introduction and
technical
specifications
Foreword
Hyd---Mech in response to modern production techniques, has developed the new
S20DSP.
This work tool has been designed to satisfy the wide range of cutting needs of a
modern workshop with simplicity and reliability, while at the same time comply-
ing with all EEC safety standards.
The S20DSP is structurally rigid, silent and safe: it produces a minimum of waste
while its great versatility makes it suitable for cutting various materials such as
stainless steel light alloys, aluminium, copper and bronze at high speed and with
high precision.
Its high cutting capacity, combined with the possibility of making inclined cuts
from 60˚ left to 60˚ right, make this model the ideal solution for satisfying the
wide strange of cutting needs of machine shops, turneries, structural steel shops
and engineering workshops.
We congratulate our clients on having chosen this product, which will give
effective and faithful service for many years, especially if the instructions
contained in this use and maintenance manual are carefully followed.
This band saw has been exclusively designed to cut metals.
Machine presentation
Functioning is SEMI---AUTOMATIC.
In Semi---automatic mode, after setting the head cutting stroke on the control
panel and the head downstroke speed, the operator positions the vice 2÷3 mm
from the workpiece and presses the start button (or optional foot pedal if fitted)
on the control panel to start up the band saw. The vice then clamps the material,
the head lowers, cuts the piece and returns to its start position and the vice opens
again.

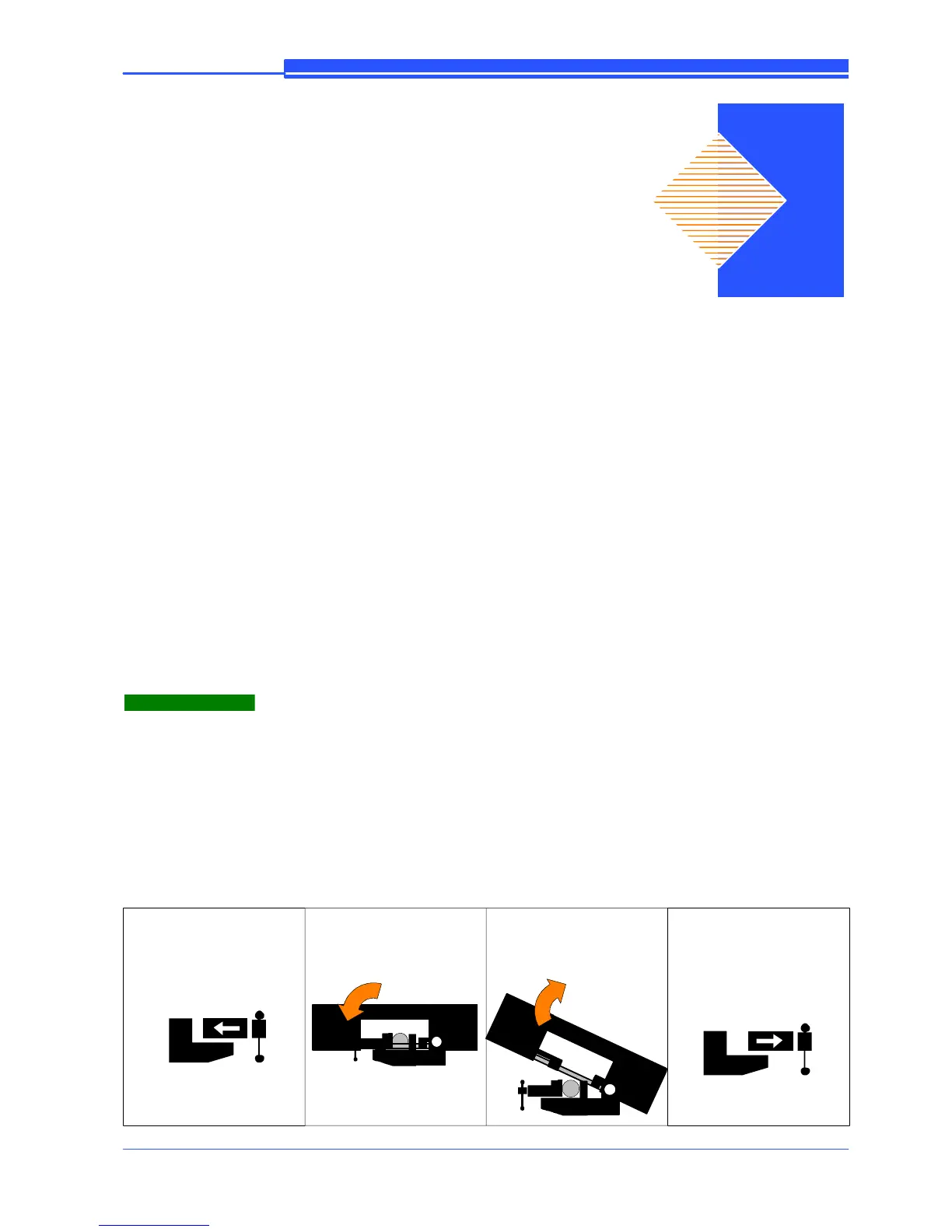

1.Thecuttervicecloses
2. The head lowers un-
til the cut is made
(FCTA)
3. The head returns to
start position (FCTI)
4. The cutter vice
opens
Warning
1
