MAINTENANCE
5-28 HPR130 Manual Gas Instruction Manual
5

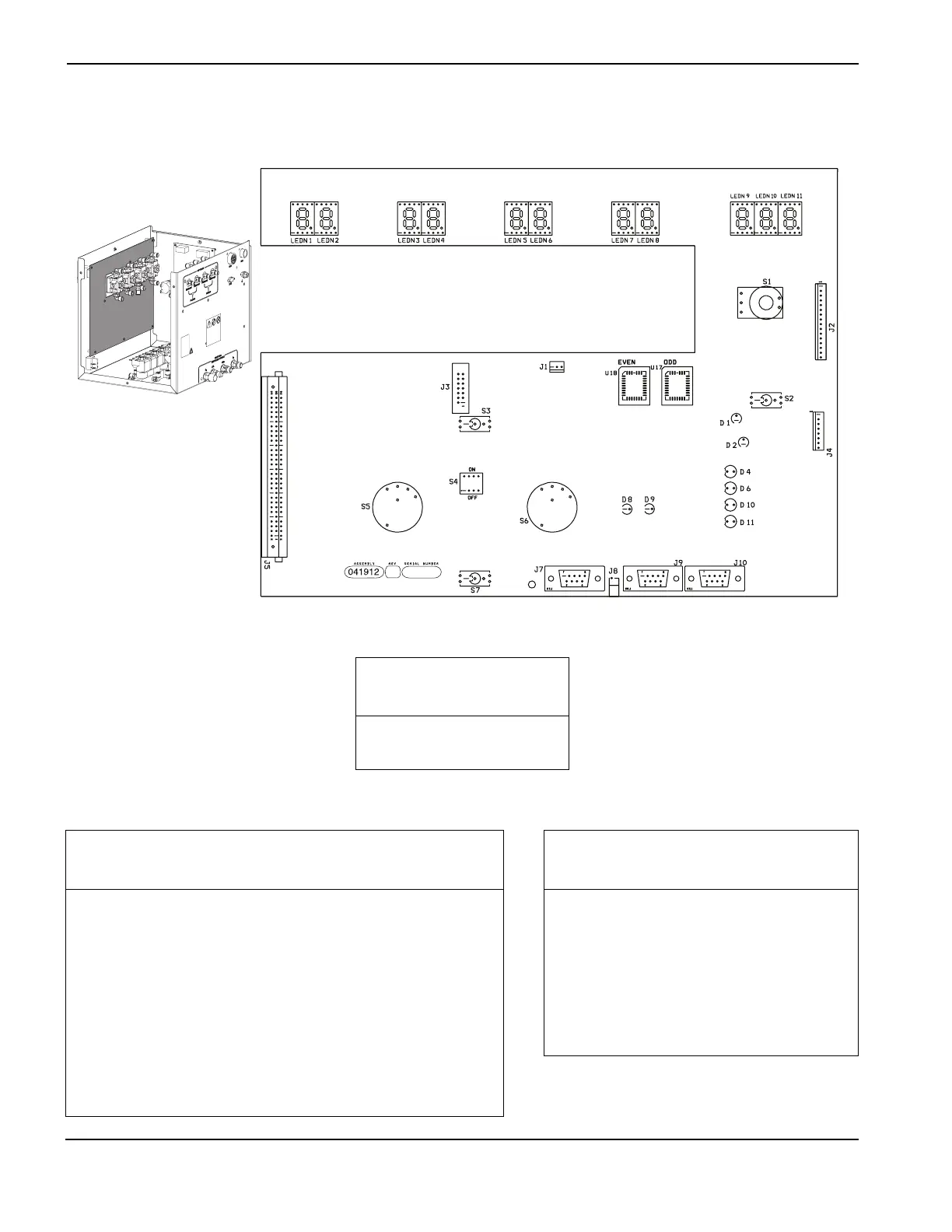

Gas console control board PCB2
Gas console control board LED list
LED Signal name Color
D1 + 5 VDC Green
D2 + 3.3 VDC Green
D4 Coolant error Yellow
D6 Pressure error Yellow
D8 CAN- TX Green
D9 CAN- RX Green
D10 Voltage error Yellow
D11 Temperature error Yellow
Gas console control board LEDN list
LEDN Signal name Color
LEDN1 Plasma preflow, left digit Red
LEDN2 Plasma preflow, right digit Red
LEDN3 Plasma cutflow, left digit Red
LEDN4 Plasma cutflow, right digit Red
LEDN5 Shield preflow, left digit Red
LEDN6 Shield preflow, right digit Red
LEDN7 Shield cutflow, left digit Red
LEDN8 Shield cutflow, right digit Red
LEDN9 Current, left digit Red
LEDN10 Current, center digit Red
LEDN11 Current, right digit Red
Control PCB2 firmware list
Item Part Number
U17 081093 ODD
U18 081093 EVEN
