INSTALLATION
3-12 HPR130 Manual Gas Instruction Manual
5

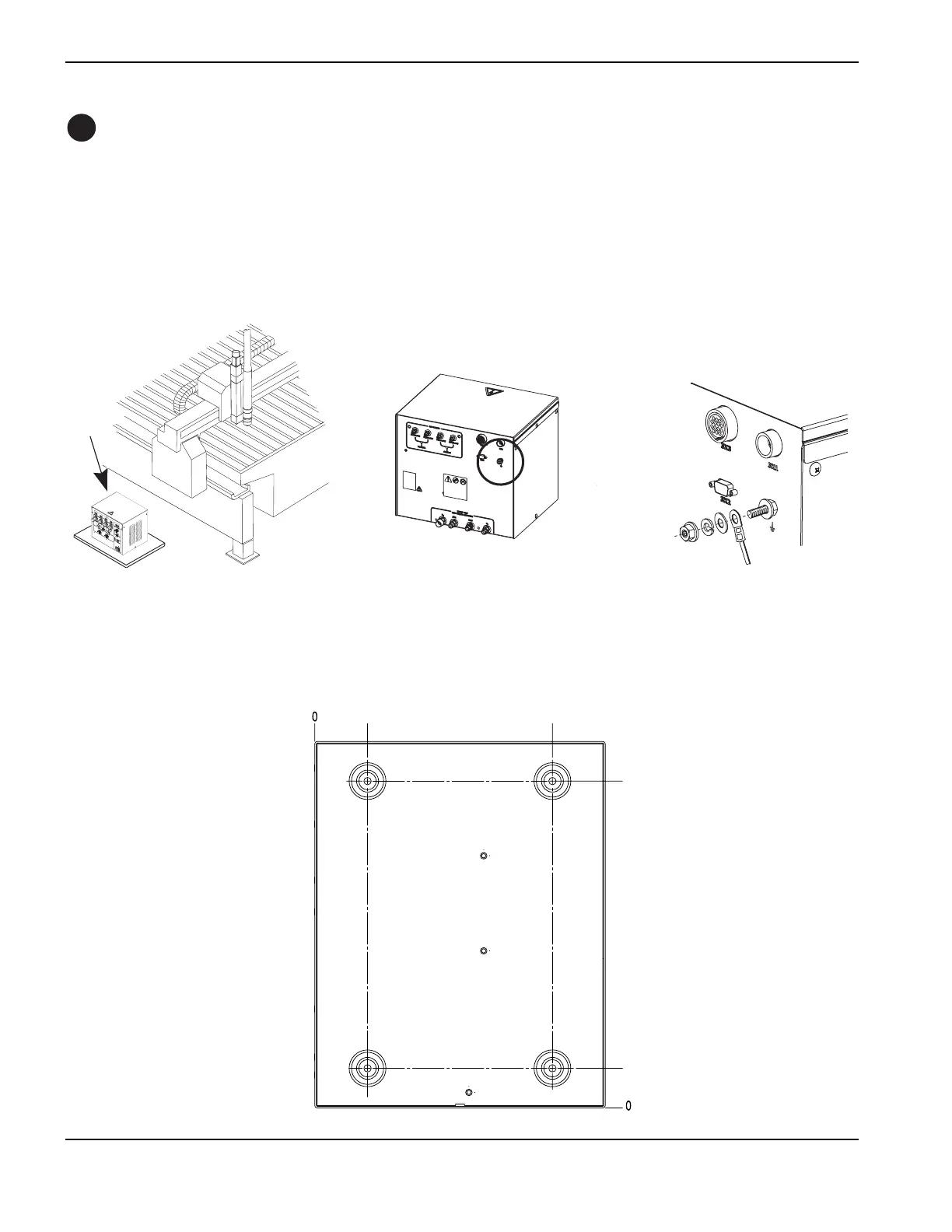

Placement of the gas console
• Position the gas console near the cutting table. Allow room to remove the top and right side cover for
servicing. Preferred orientation is shown in the figure below. The maximum length of cables between the
power supply and gas console is 75 m (250 ft). The maximum length of cables and hoses between the gas
console and the off-valve assembly is 20 m (65 ft).
C
Preferred gas console orientation
38.1 mm
1.5"
314.5 mm
12.38"
228.6 mm
9.0"
50.8 mm
2.0"
Gas console grounding
