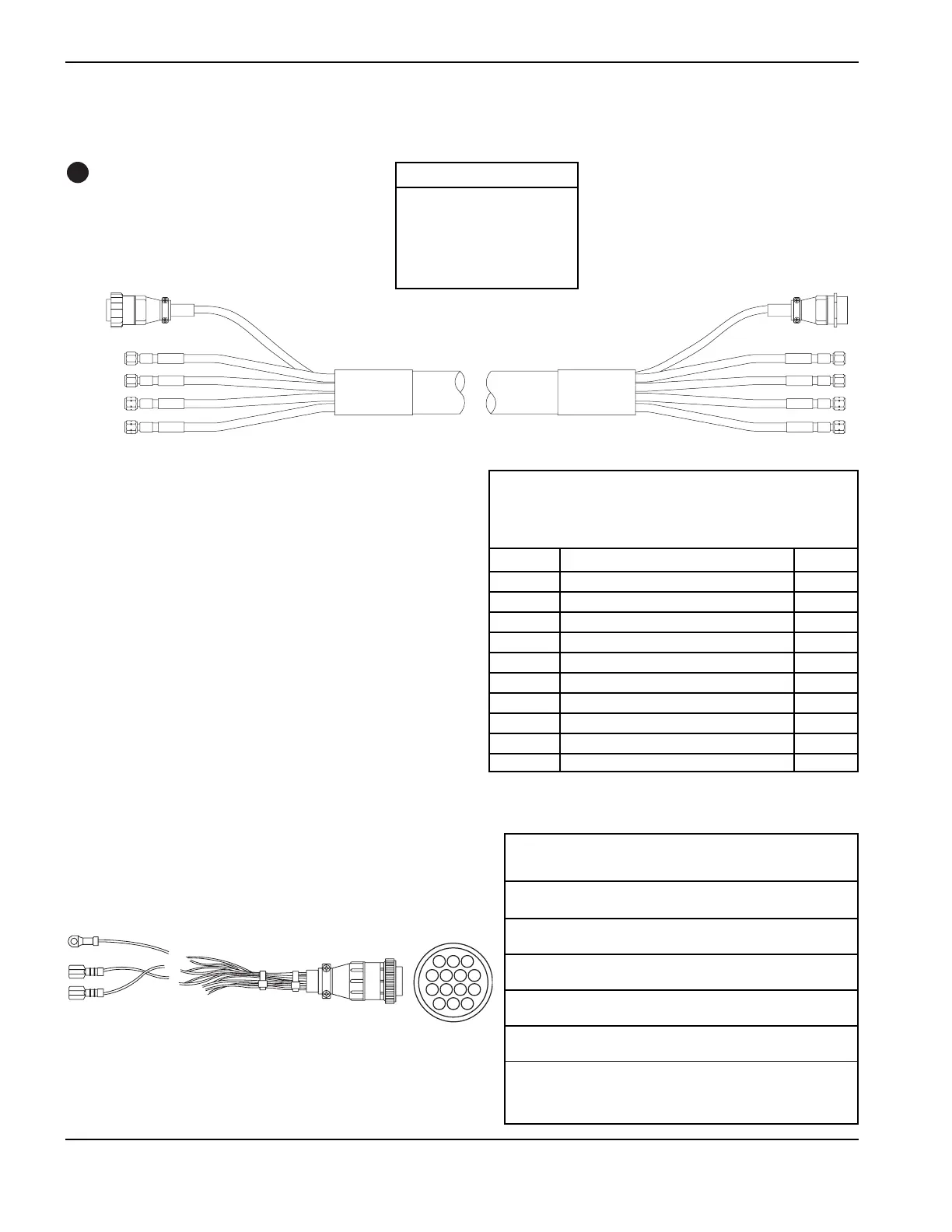

INSTALLATION
3-20 HPR130 Manual Gas Instruction Manual
5
Cable and gas hose assembly
7
Gas console to off-valve cable
Off-valve cable
1
10
9
8
6
547
23
11
12 13 14
End B
End A ( male/pins)
Gas console to off-valve connections
CABLE RUN LIST
Function End B Color End A
Shield S Red/Black 1
Preflow P Red 2
Shield S Red/Black 3
Cutflow C Red 4
Plasma P Red/Black 5
Preflow P Red 6
Plasma P Red/Black 7
Cutflow C Red 8
Vent V Red/Black 9
V Red 10
Ground GND Green/Yellow 11
GND 12
GND 13
GND 14
Female end at off-valve Male end at gas console
CABLE SIGNAL LIST – gas console to off-valve cable
Gas console end Off-valve end
Pin # Description Pin #
1 120Vac Hot – Shield preflow 1
2 120Vac Return – Shield preflow 2
3 120Vac Hot – Shield cutflow 3
4 120Vac Return – Shield cutflow 4
5 120Vac Hot – Plasma preflow 5
6 120Vac Return – Plasma preflow 6
7 120Vac Hot – Plasma cutflow 7
8 120Vac Return – Plasma cutflow 8
9 120Vac Hot – Plasma vent 9
10 120Vac Return – Plasma vent 10
11 Ground 11
Part no. Length
128989 3 m (10 ft)
128990 4.5 m (15 ft)
128782 7.5 m (25 ft)
128967 10 m (35 ft)
128786 15 m (50 ft)
128991 20 m (65 ft)
