INSTALLATION
3-26 HPR130 Manual Gas Instruction Manual
5

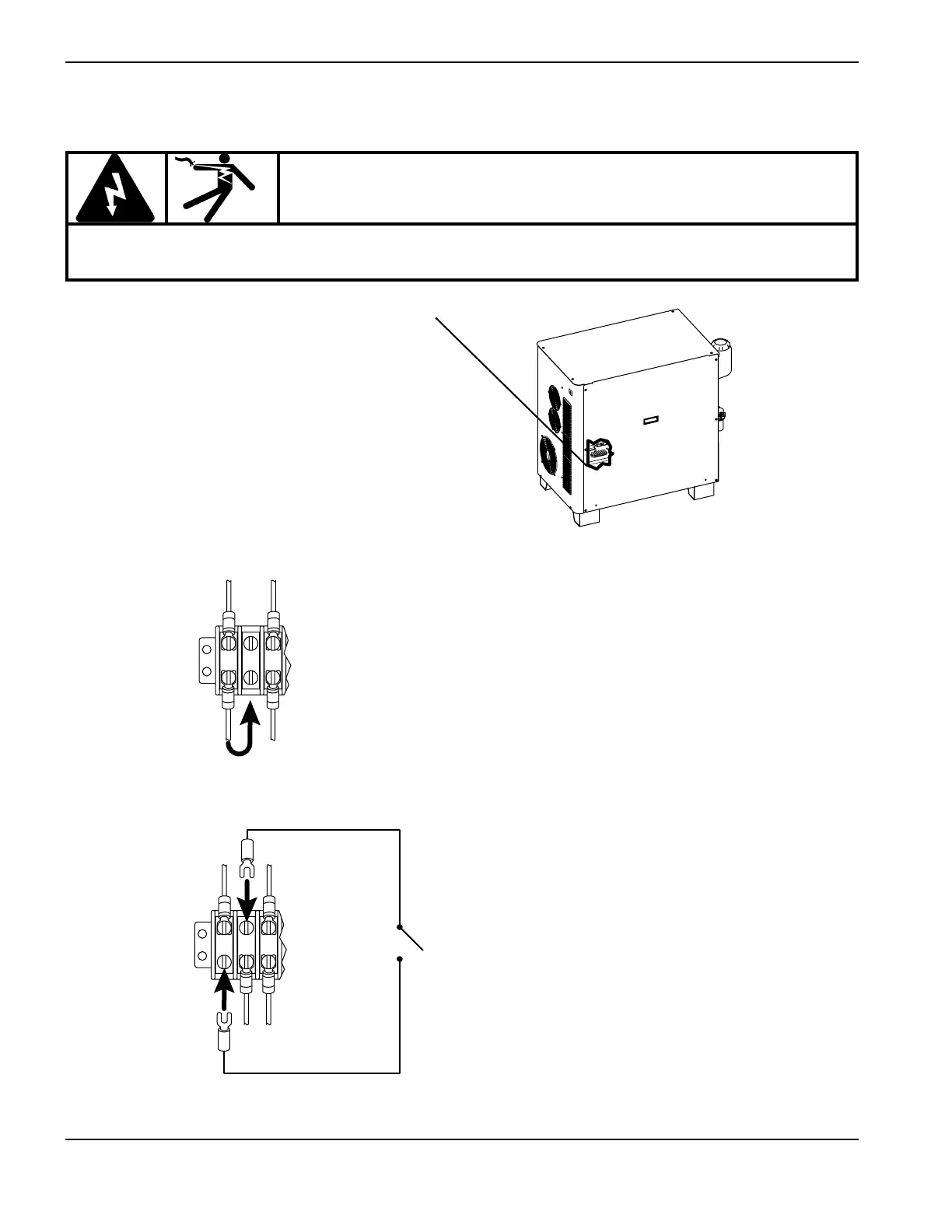

1. Locate terminal block 2 (TB2) in the power supply.
2. Remove wire 1 as shown and connect it to terminal 2.
3. Connect switch to terminals 1 and 2 as shown.
Note: The main power switch on the gas console must be in the ON position for the remote switch to function.
TB2 location
Note: Use a switch, relay or solid state relay that is
compatible with 24VAC @ 100mA. It should be a
maintained contact switch, not a momentary contact
switch.
WARNING
ELECTRIC SHOCK CAN KILL
Disconnect electrical power before performing any maintenance.
See the
Safety
section of the instruction Manual for more safety precautions.
Remote on/off switch (provided by customer)
