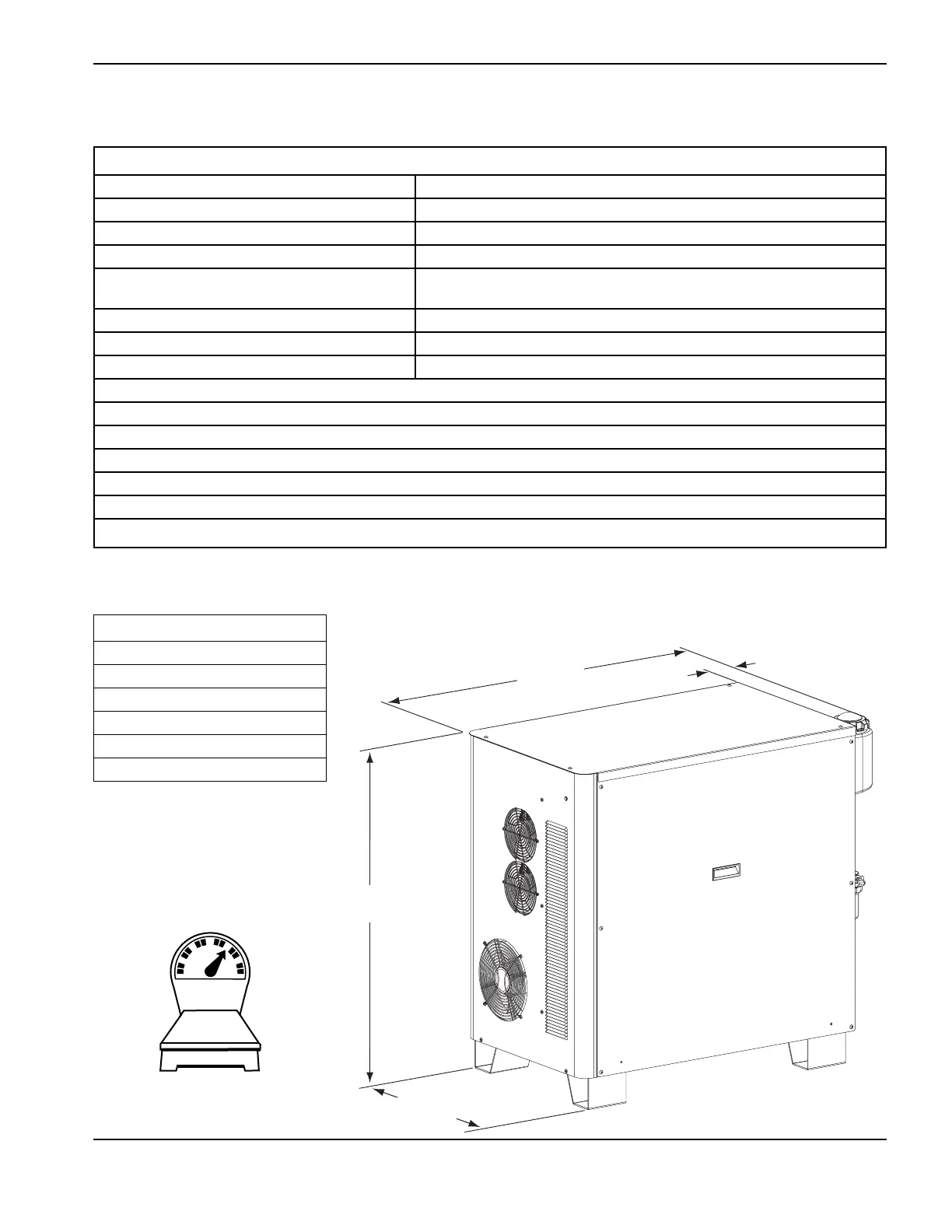

SPECIFICATIONS
HPR130 Manual Gas Instruction Manual 2-5
5
Power supply
General
Maximum OCV (U
0
) 311 VDC
Maximum output current (I
2
) 130 Amps
Output voltage (U
2
) 50 – 150 VDC
Duty cycle rating (X) 100% @ 19.5 kw, 40° C (104° F)
Ambient temperature/Duty cycle Power supplies will operate between -10° C and +40° C
(+14° and 104° F)
Power factor(cosϕ) 0.88 @ 130 ADC output
Cooling Forced air (Class F)
Insulation Class H
Input power (input voltage (U
1
) X input current (I
1
X 1.73) (+/- 10%)
200/208 VAC, 3-PH, 50/60 Hz, 62/58 amps
240 VAC, 3-PH, 60 Hz, 52 amps
400 VAC CE, 3-PH, 50/60 Hz, 32 amps
440 VAC, 3-PH, 60 Hz, 28 amps
480 VAC, 3-PH, 60 Hz, 26 amps
600 VAC, 3-PH, 60 Hz, 21 amps
Part numbers
200/208 VAC – 078177
240 VAC – 078179
400 VAC – 078180
440 VAC – 078182
480 VAC – 078181
600 VAC – 078183
317.5 kg
700 lb
154.9 mm
6.1"
1079.5 mm
42.5"
967.7 mm
38.1"
566.4 mm
22.3"

Hypertherm HPR130 Manual Gas Specifications

General

Brand	Hypertherm
Model	HPR130 Manual Gas
Category	Welding System
Language	English
