MAINTENANCE
5-30 HPR130 Manual Gas Instruction Manual
3

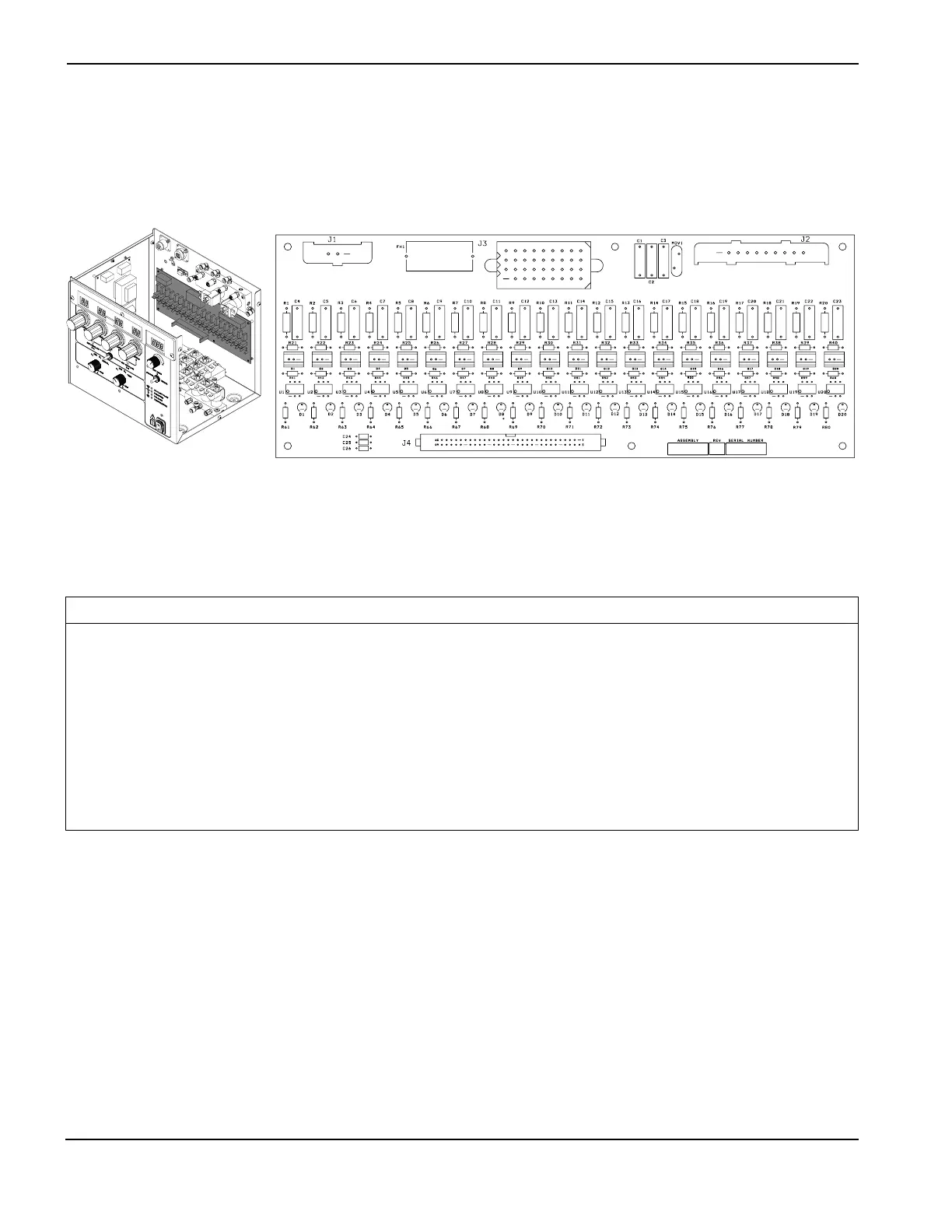

Gas console, AC valve-driver PCB3
LED Signal Name Color LED Signal Name Color
D1 SV1 Red D11 SV11 Red
D2 SV2 Red D12 SV12 Red
D3 SV3 Red D13 SV13 Red
D4 SV4 Red D14 SV14 Red
D5 SV5 Red D15 SV15 Red
D6 SV6 Red D16 SV16 Red
D7 SV7 Red D17 SV17 Red
D8 SV8 Red D18 SV18 Red
D9 SV9 Red D19 SV19 Red
D10 SV10 Red D20 SV20 Red
