MAINTENANCE
HPR130 Manual Gas Instruction Manual 5-33
5
Phase-loss detection test

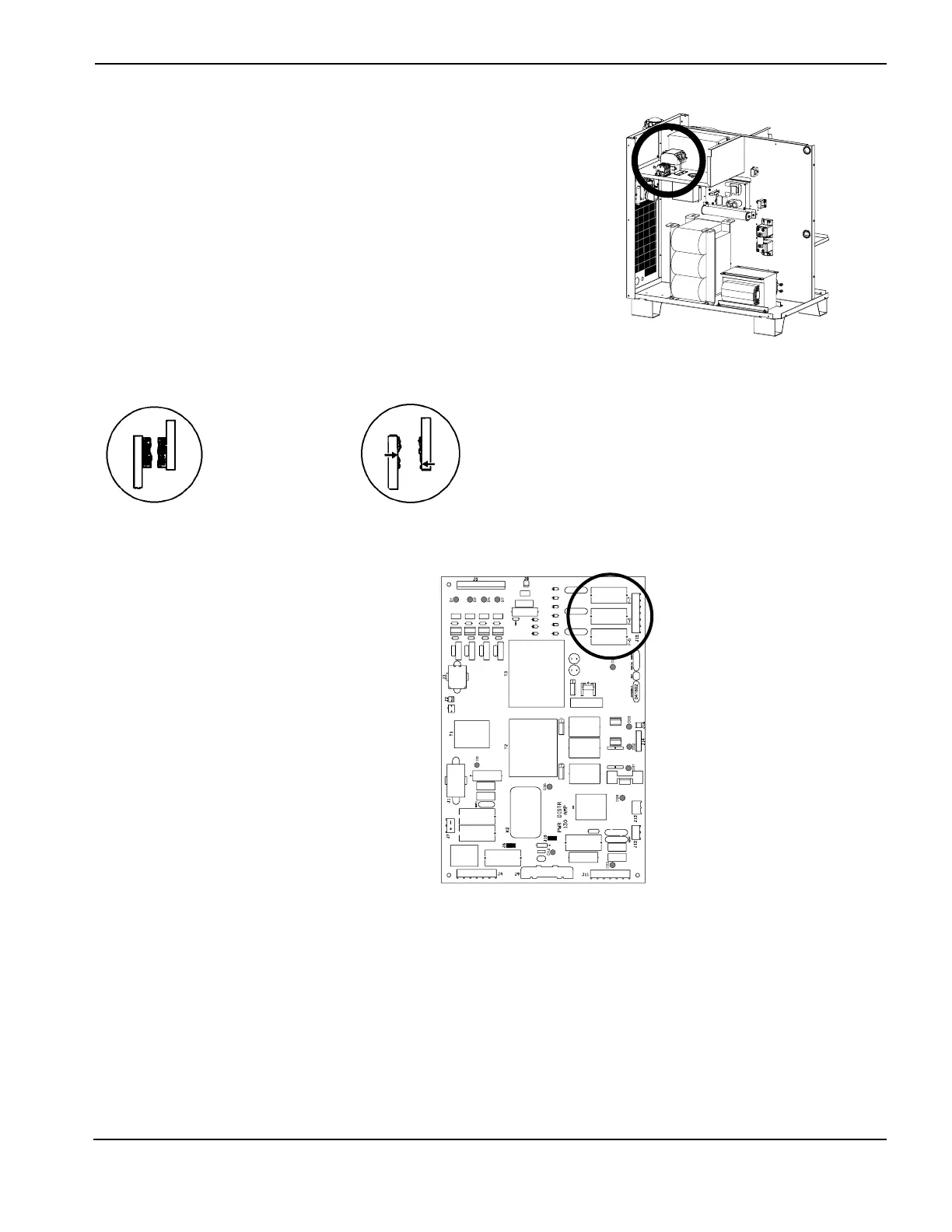

1. Turn OFF all power to the system and remove the cover from CON1.
2. Inspect the condition of the 3 contacts for excessive wear. If one or more of the contacts are worn excessively,
replace CON1 and restart the system. If the error remains, perform the following steps.
3. Test the fuses F5, F6, and F7 on the power
distribution board (PCB2). If any of the fuses
are blown, replace PCB2.
4. Remove J2.8 from PCB2 and place a jumper between pins 1 and 2 on the cable connector.
a. Make a test cut. If the phase-loss error continues, verify wiring between J2.8 on PCB2 and J3.302 on
PCB3 by verifying the continuity between
– J2.8 pin1 to J3.302 pin14
– J2.8 pin2 to J3.302 pin15.
b. If the wiring is ok replace PCB3. If any wiring is damaged repair or replace damaged wires.
c. If the phase-loss error goes away while the jumper is on J2.8, make another cut and measure the phase-
to-phase voltage across the fuses, F5, F6, and F7. The voltage should be 220 VAC +/-15%. If one of the
3 voltage readings is less than 187 VAC, check the contacts to the contactor, and check for loose
connections between the power cord – contactor – power transformer – and the chopper.
OK
Excessive wear
To Next Page
