INSTALLATION
HPR130 Manual Gas Instruction Manual 3-3
5
Upon receipt
• Verify that all system components on your order have been received. Contact your supplier if any items
are missing.
• Inspect the system components for any physical damage that may have occurred during shipping. If there is
evidence of damage, refer to
Claims.
All communications regarding claims must include the model number
and serial number located on the back of the power supply.
Claims
Claims for damage during shipment – If your unit was damaged during shipment, you must file a claim with the
carrier. Hypertherm will furnish you with a copy of the bill of lading upon request. If you need additional assistance,
call Customer Service listed in the front of this manual, or your authorized Hypertherm distributor.
Claims for defective or missing merchandise – If any of the merchandise is defective or missing, contact your
supplier. If you need additional assistance, call Customer Service listed in the front of this manual, or your
authorized Hypertherm distributor.
Installation requirements
All installation and service of the electrical and plumbing systems must conform to national or local
electrical and plumbing codes. This work should be performed only by qualified, licensed personnel.
Direct any technical questions to the nearest Hypertherm Technical Service Department listed in the front of this
manual, or your authorized Hypertherm distributor.
Noise levels
Acceptable noise levels as defined by national or local codes may be exceeded by this plasma system. Always
wear proper ear protection when cutting or gouging. See also
Noise protection
in the
Safety
section of this manual.
Data was taken while cutting at 130A using an O
2
/Air process on a dry cutting table.
The decibel readings at 12 m (39.4 ft) from the front of torch, 1.4 m (4.6 ft) from the floor and 0.34 m (1.12 ft) above
the arc are: 119.2 Max Level, dBC (MaxP) and 99.6 Lav5, dBA.
Placement of system components
• Place all system components in position prior to making electrical, gas and interface connections. Use the
diagram in this section for component placement guidelines.
• Ground all system components to earth. See
Grounding requirements
in this section for details.
• To prevent leaks in the system, tighten all gas and water connections as shown below:

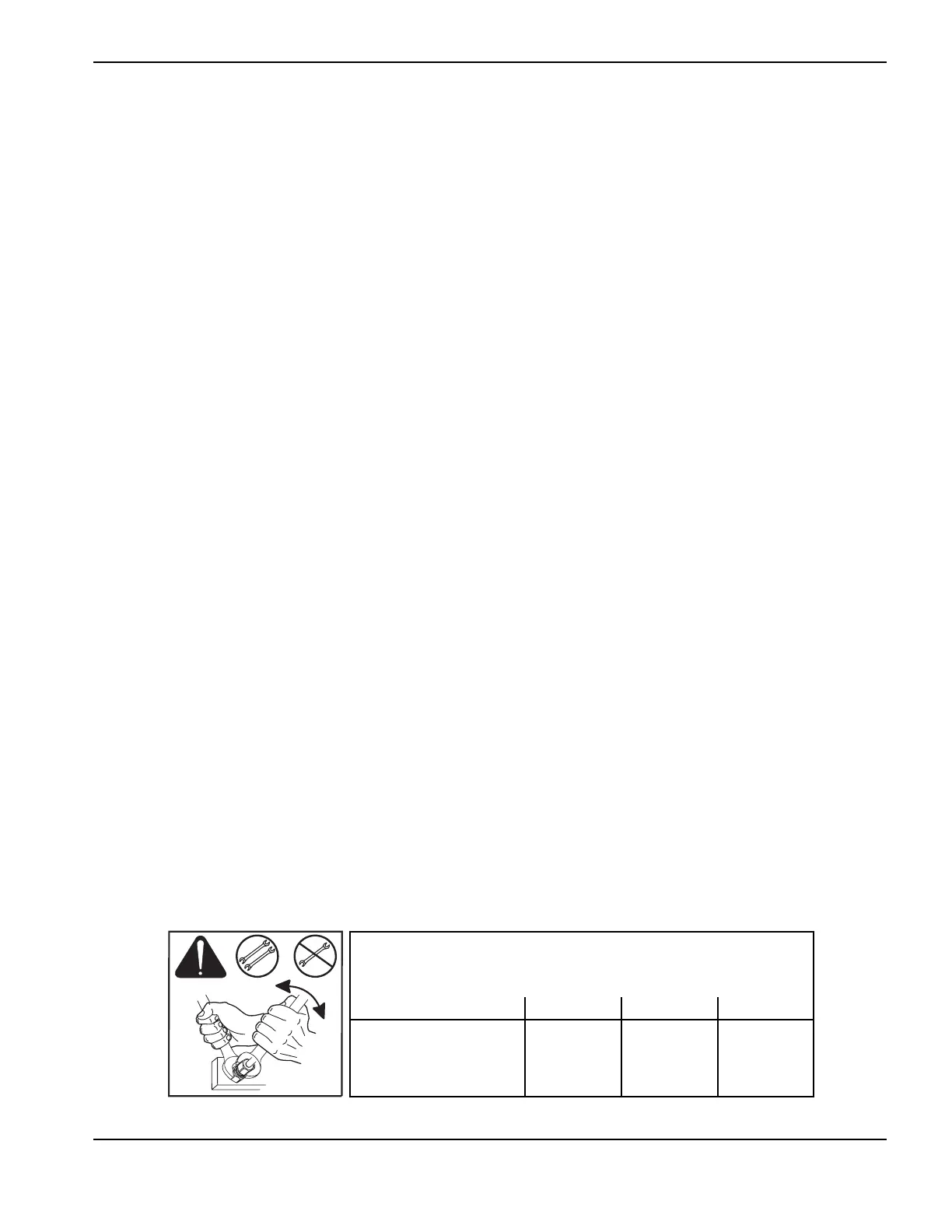

Torque specifications
Gas or water
hose size kgf-cm lbf-in lbf-ft
Up to 10 mm (3/8") 8.6-9.8 75-85 6.25-7
12 mm (1/2") 41.5-55 360-480 30-40
