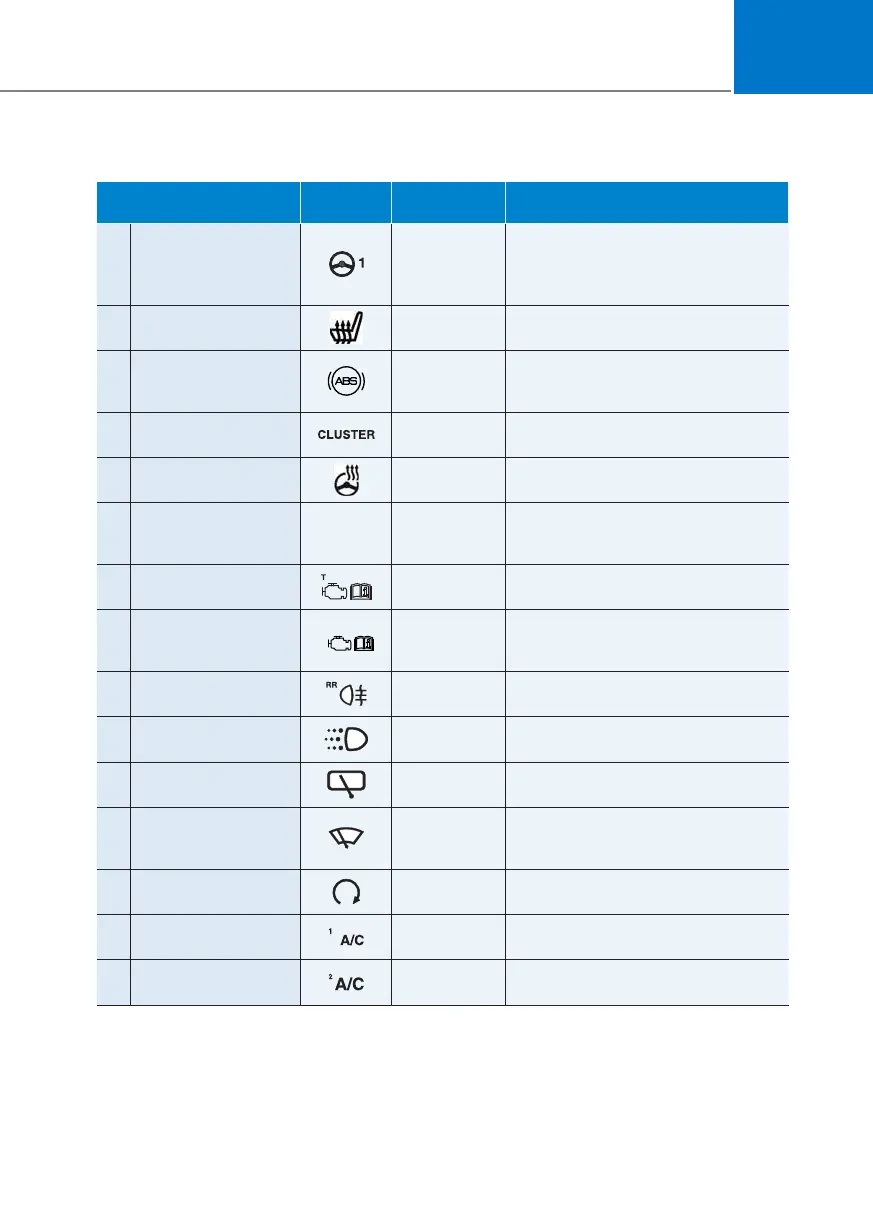

Driver’s side fuse panel
FUSE NAME
SYMBOL
FUSE
RATING (A)
CIRCUIT PROTECTED
17
MOTOR
DRIVEN
POWER
STEERING
7.5
MDPS
18
SEAT
HEATER
20
SEAT WARMER LH/RH
19
ANTI-LOCK
BRAKE
SYSTEM
7.5
ABS
20
CLUSTER
7.5
CLUSTER
21
HEATED
STEERING
15
STEER’G HEATED
22
E-CALL
(EMERGENCY
CALL)
lTjhss
7.5
E-CALL
23
TRANSMISSION
CONTROL UNIT
15
CLUTCH SW,
TGS_LEVER, B/UP SW
24
ELECTRONIC
(ENGINE)
CONTROL UNIT
E
10
ECU
25
REAR FOG LAMP
10
REAR FOG LAMP
26
DAYTIME
RUNNING LIGHT
10
DRL LAMP
27
WIPER
SYSTEM RR
15
MF_SW, REAR WIPER MOTOR
28
WINDSCREEN
WIPING SYSTEM
(CONTINUOUS)
20
MF_SW, FRONT WIPER
MOTOR
29
START
7.5
START RLY
30
AIR
CONDITIONER 1
7.5
MTC/FATC, BLOWER RLY
31
AIR
CONDITIONER 2
7.5
FATC, BLOWER MOTOR
