7. Place the Base Module on a flat, level surface, such as a table.
8. Remove the top library cover plate, if present.
a. Unlock the top cover with two small screwdrivers.
b. Remove the cover from the module.
Removing the accessor and spooling mechanism from the Base Module
1. Remove the left and right magazines by using the magazine release levers (circled in Figure 71 on
page 136). Push up on the lever, then pull the magazine out.

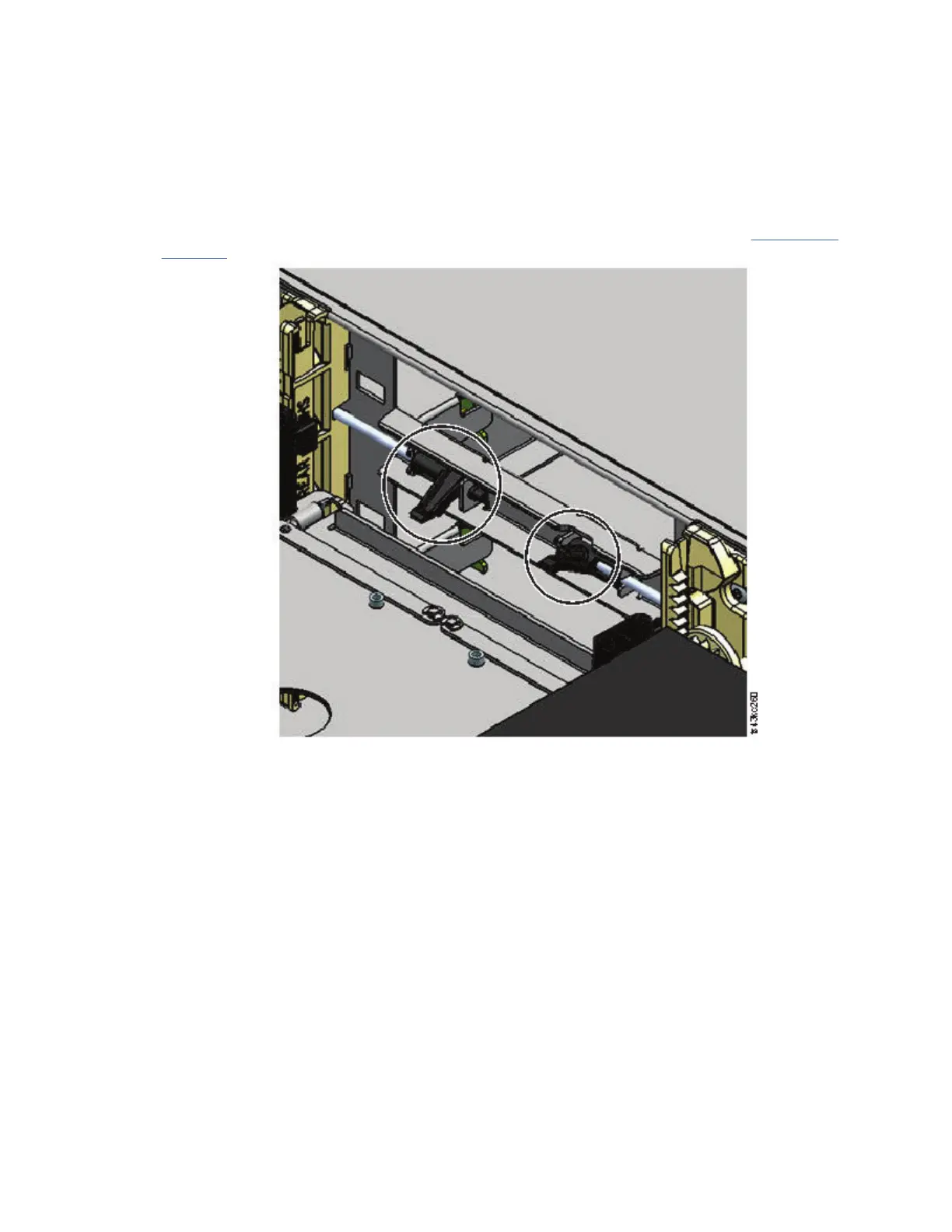

Figure 71. Magazine release levers
2. Slide the cartridge carrier toward the center of the accessor to access the robot-locking lever.
3. Standing at the front of the module, unlock the robot by moving the blue lever to the left, then toward
you, then to the right.
136
IBM TS4300 Tape Library Machine Type 3555: User's Guide
