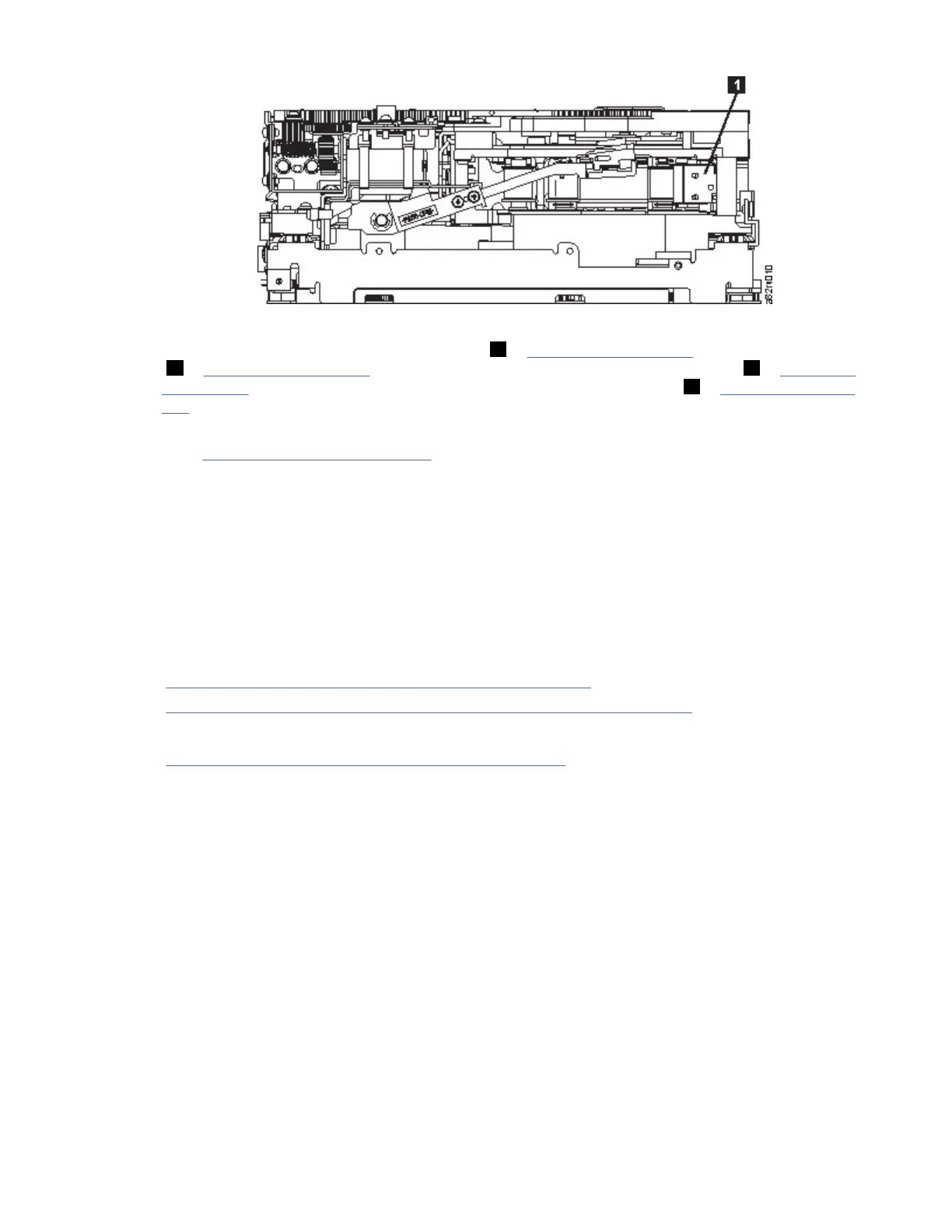

Figure 115. Leader Block Assembly (LBA)
11. Continue rotating the loader motor worm gear ( 1 in Figure 114 on page 190) until the rotator stub
( 3 in Figure 114 on page 190) is positioned as shown. Notice that the rotator stub ( 3 in Figure 114
on page 190) is nearly aligned with the cartridge loader tray guide bearing ( 2 in Figure 114 on page
190).
12. Remove the cartridge from the cartridge loader tray.
13. Go to “Ending procedure” on page 197.
Half height drive: Tape tangled along tape path
Note: If the cartridge in the drive is an INPUT tape that contains ACTIVE or 'ONLY COPY' data (there is no
backup), eject commands that are issued at the host fail to unload the tape, and power-cycling the drive
fails to eject the cartridge, make no further attempts to unload this tape. Call Technical Support and
open a PMR if one is not already open, to initiate the process of sending the drive with the loaded
cartridge in for recovery.
1. Carefully pull out excess tape and untangle.
Note: If you nd the tape to be broken, go to one of the following appropriate procedures:
• “Half height drive: Tape spooled off supply reel” on page 182
• “Half height drive: Tape pulled from or broken near leader pin” on page 185
–OR–
• “Half height drive: Tape broken in mid-tape” on page 187
2. Set the drive on its left side with the head and tape path facing up.
Appendix D. Manual cartridge removal procedure
191
