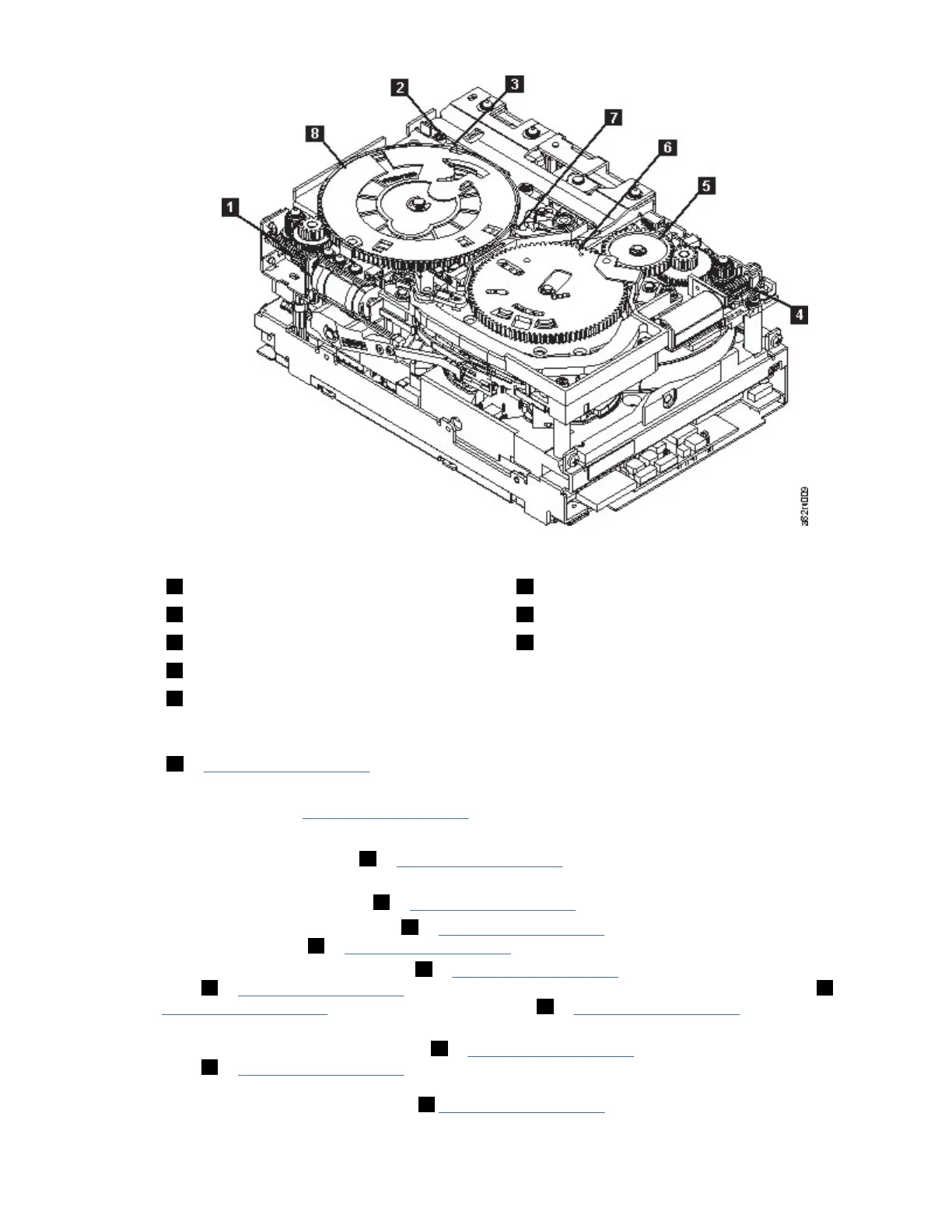

Figure 114. Drive with cover removed to reveal gear train.
1
Loader motor worm gear 6 Threader mechanism gear
2 Cartridge loader tray guide bearing 7 Lever
3 Rotator stub 8 Loader mechanism gear
4 Threader motor worm gear
5 Threader intermediate gear
7. As the tape leader block assembly (LBA) is secured in the cartridge, you hear the LBA retention spring
clips click into place. If you do not hear the click, continue rolling until the threader motor worm gear
( 4 in Figure 114 on page 190) stops. The LBA is in the correct position.
Note: Be sure to keep tension on the tape as the LBA is drawn into the cartridge by using a hex
wrench as shown in Figure 113 on page 189.
8. Notice these mechanisms:
a) Loader mechanism gear ( 6 in Figure 114 on page 190) nearest the front of the drive that actuates
the cartridge loader mechanism.
b) Position of the rotate stub ( 3 in Figure 114 on page 190).
c) Front loader motor worm gear ( 1 in Figure 114 on page 190). Rotating this gear allows the loader
mechanism gear ( 8 in Figure 114 on page 190) to turn.
9. Rotate the loader motor worm gear ( 1 in Figure 114 on page 190) to turn the threader mechanism
gear ( 6 in Figure 114 on page 190) counterclockwise. Continue turning until the rotator stub ( 3 in
Figure 114 on page 190) loses contact with the lever ( 7 in Figure 114 on page 190). This action
releases the LBA leader pin.
10. Rotate the threader motor worm gear ( 4 in Figure 114 on page 190) to turn the threader mechanism
gear ( 6 in Figure 114 on page 190) counterclockwise. This action moves the LBA out of the cartridge
and past the read/write head. Stop this rotation when the LBA is near the tape guide roller nearest
the rear of the drive that is shown as 1 Figure 115 on page 191.
