IDEAL SecuriTest IP User Manual

171810.01 SecuriTEST® IP 18
SecuriTEST® IP User Manual

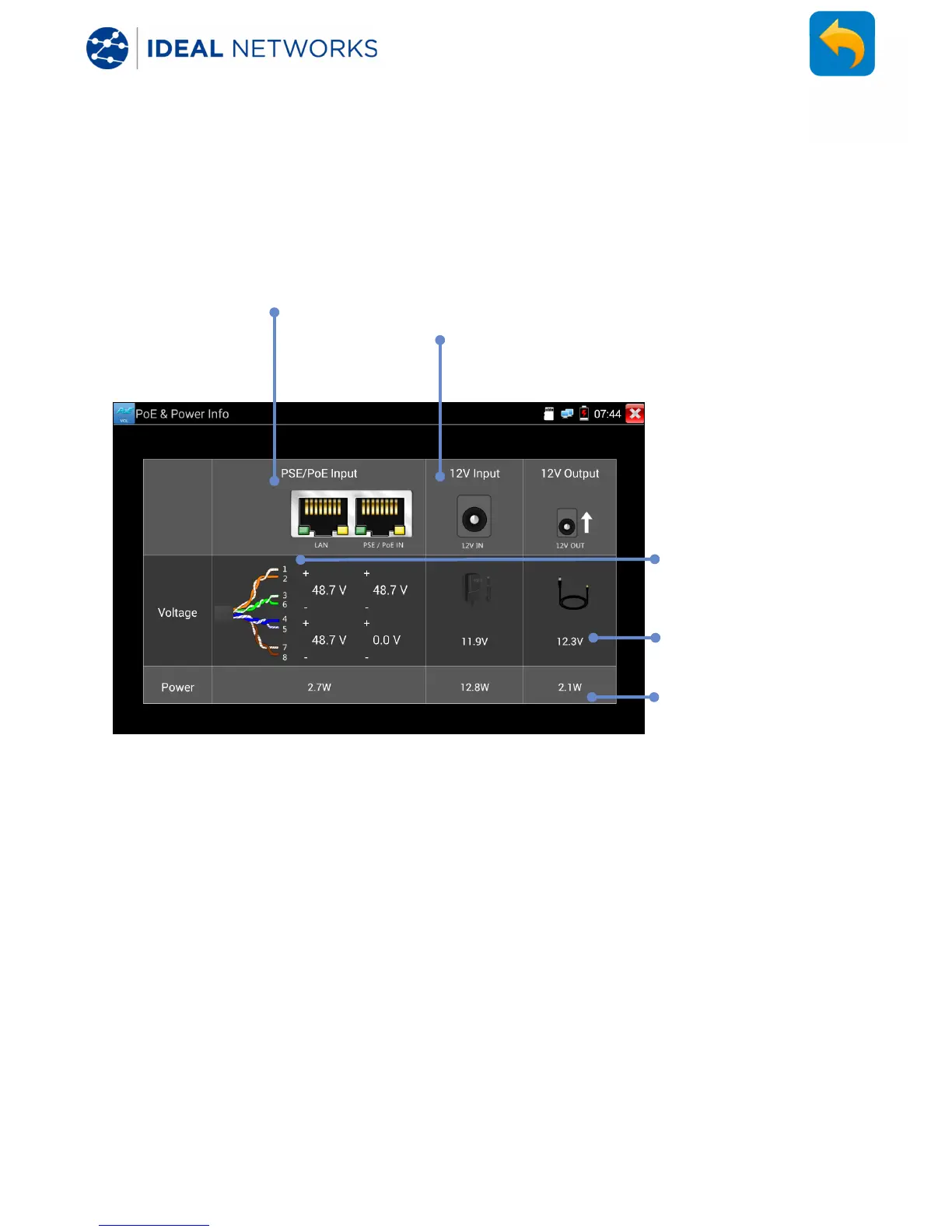

POWER - PoE and Power Info
TOOLS >> PoE & Power Info
(Note – when this screen is displayed, the PoE output is switched off if the tester is
running on battery power. At the same time the PoE Input power and data will be
passing through to the LAN/Network port.)
Indicates PoE input status
Use the 12 v input for testing
camer
a power supplies
Indicates the pin numbers
of the PoE
input voltages.
The
PSE voltage will pass
through to LAN/Network
port while data will not
pass through.
Indicates the power
consumed by the
load or provided by
the camera or PoE
supply
Indicates the PoE / DC
voltages present
