171810.01 SecuriTEST® IP 40

SecuriTEST® IP User Manual

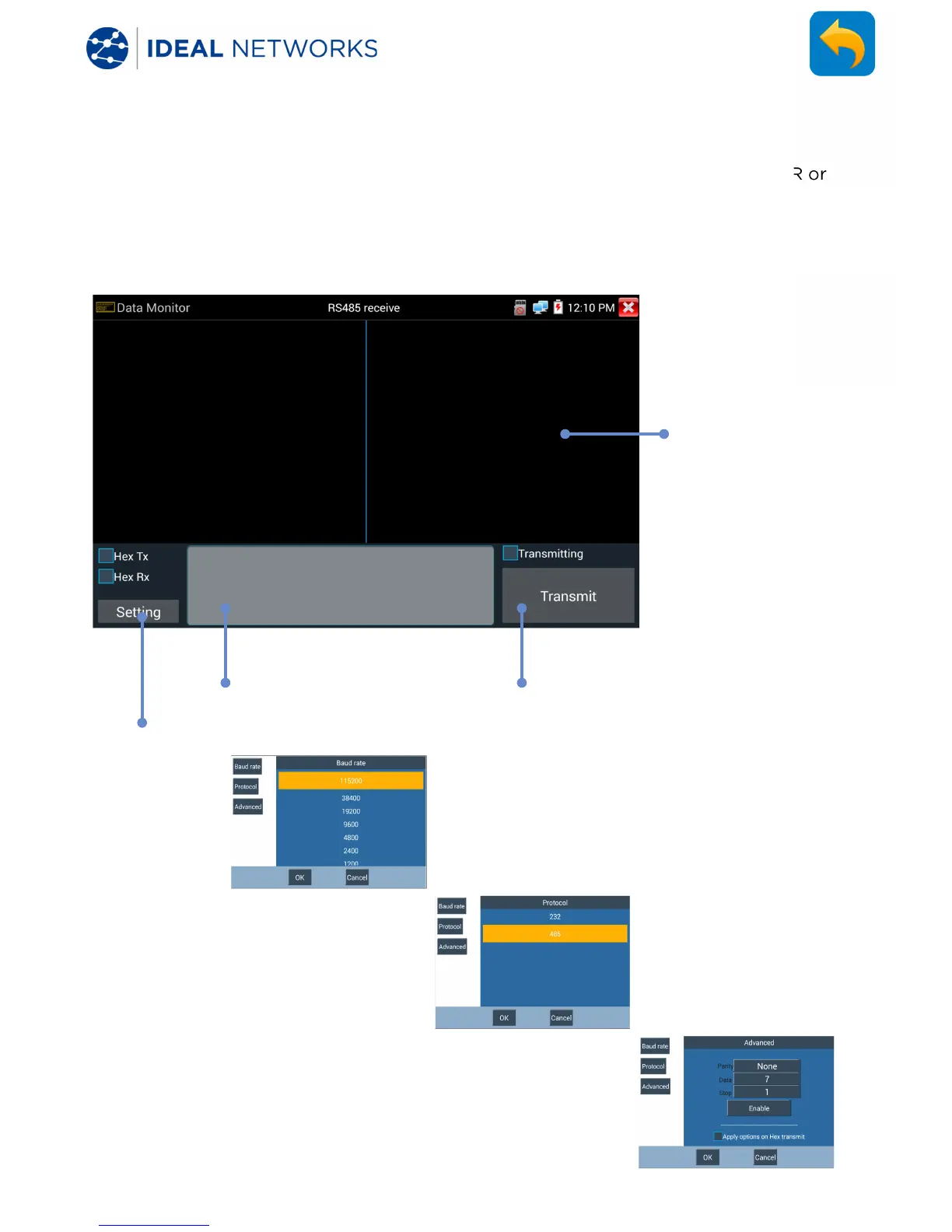

IP NETWORK TEST - Data Monitor (RS485)

This tool is used to check the RS485 communication codes transmitted by a DVR or

control keyboard.

TOOLS >> Data Monitor

Transmit the message

Edit the message

Adjust the port settings:

Transmitted and

received messages

General3
Interface and Status Indication3
Settings3
Power3
Ip Camera Test4
Hd Coax and Analog Camera Test4
Cable Testing4
Ip Network Test5
Results and Transfer5
My Apps5
Software Update5
Tools6
Technical Specification6
GENERAL - Introduction7
GENERAL - Safety8
GENERAL - Battery Handling8
To Remove the Battery8
To Replace the Battery8
Interface and Status Indication - Keypad9
INTERFACE and STATUS INDICATION - Electrical Interface10
Top Panel Connectors and Indicators10
Bottom Panel Connectors and Indicators10
INTERFACE and STATUS INDICATION - Wi-Fi Interface11
INTERFACE and STATUS INDICATION - LED Indicators12
INTERFACE and STATUS INDICATION - Screen Functions13
Status Indications13
Quick Access Menu13
Shortcut Menu13
IP Settings14
Wi-Fi Setup15
FTP Server17
Storage (SD Card)18
HDMI out19
Remote View20
System21
Date & Time21
Factory Reset21
Poe Output22
DC 12V Output23
Poe & Power Info23
Poe and Power Info24
IP CAMERA TEST - IP Camera Test Flow25
Ip Set25
Access25
IP Discovery / DIRECT IP CAMERA26
Quick IP Device Discovery26
Ip Camera Test – Onvif / Network Camera27
ONVIF Camera Test27
Onvif Camera Test - Ptz28
IP CAMERA TEST - Chrome29
IP CAMERA TEST - Non ONVIF IP Camera Test30
Analog Camera Test - Cvbs31
Analog Camera Test - Ptz32
ANALOG CAMERA TEST - PTZ Address Scanning33
ANALOG CAMERA TEST - Video out34
Analog Camera Test – Hd Tvi35
Analog Camera Test – Hd CVI36
Analog Camera Test - Ahd37
CABLE TESTING - Cable Test38
CABLE TESTING - RJ45 Cable TDR39
CABLE TESTING - Tone Generator40
IP NETWORK TEST - Ping41
IP NETWORK TEST - IP Scan42
IP NETWORK TEST - DHCP Server43
IP NETWORK TEST - Available IP44
IP NETWORK TEST - Network IP Scan45
IP NETWORK TEST - Data Monitor (RS485)46
RESULTS and TRANSFER - Test Report47
Results and Transfer - Jobs48
RESULTS and TRANSFER - File Explorer49
To Copy a File to Another Folder in the Tester49
RESULTS and TRANSFER - File Transfer50
Removable Microsd Card50
File Transfer Protocol (FTP) Server50
Internet50
MY APPS - Rapid Video51
My Apps - Hik (Hikvision)52
My Apps - Dh (Dahua)53
MY APPS - RTSP Player54
SOFTWARE UPDATE - Local Update55
TOOLS - Notepad56
TECHNICAL SPECIFICATION - Interfaces57
TECHNICAL SPECIFICATION – Camera Test Functions58
Analog (CVBS) Camera Test58
HD Coax (TVI, CVI, AHD) Camera Test58
TECHNICAL SPECIFICATION – Electrical Test Functions59
Power Output59
Poe & Voltage Test59
Ethernet Cable Test59
TECHNICAL SPECIFICATION – General Test Functions60
Image Capture60
Audio60
TECHNICAL SPECIFICATION – Results, Upgrade and Help61
File Management61
TECHNICAL SPECIFICATION – General62
