Image Access WideTEK 25 Setup And Assembly Manual

Setup and Assembly Manual Page 53
C.2.1 Assembling the Glass Plate Cover
The glass plate cover has two adjustable hinges. These hinges avoid an undamped
moving of the glass plate cover.
The middle screw allows to set the damping force of the hinge.
Position the hinges of the glass plate cover over the threaded holes. Assemble each hinge
by using two Phillips head screws in the left and right borehole.
Fasten the screws by hand. Do not use an electric tool!
At next insert the countersunk Allen head s crews in the middle borehole. Use an A llen
head screw driver, size 2.5 mm, to fasten the screws.

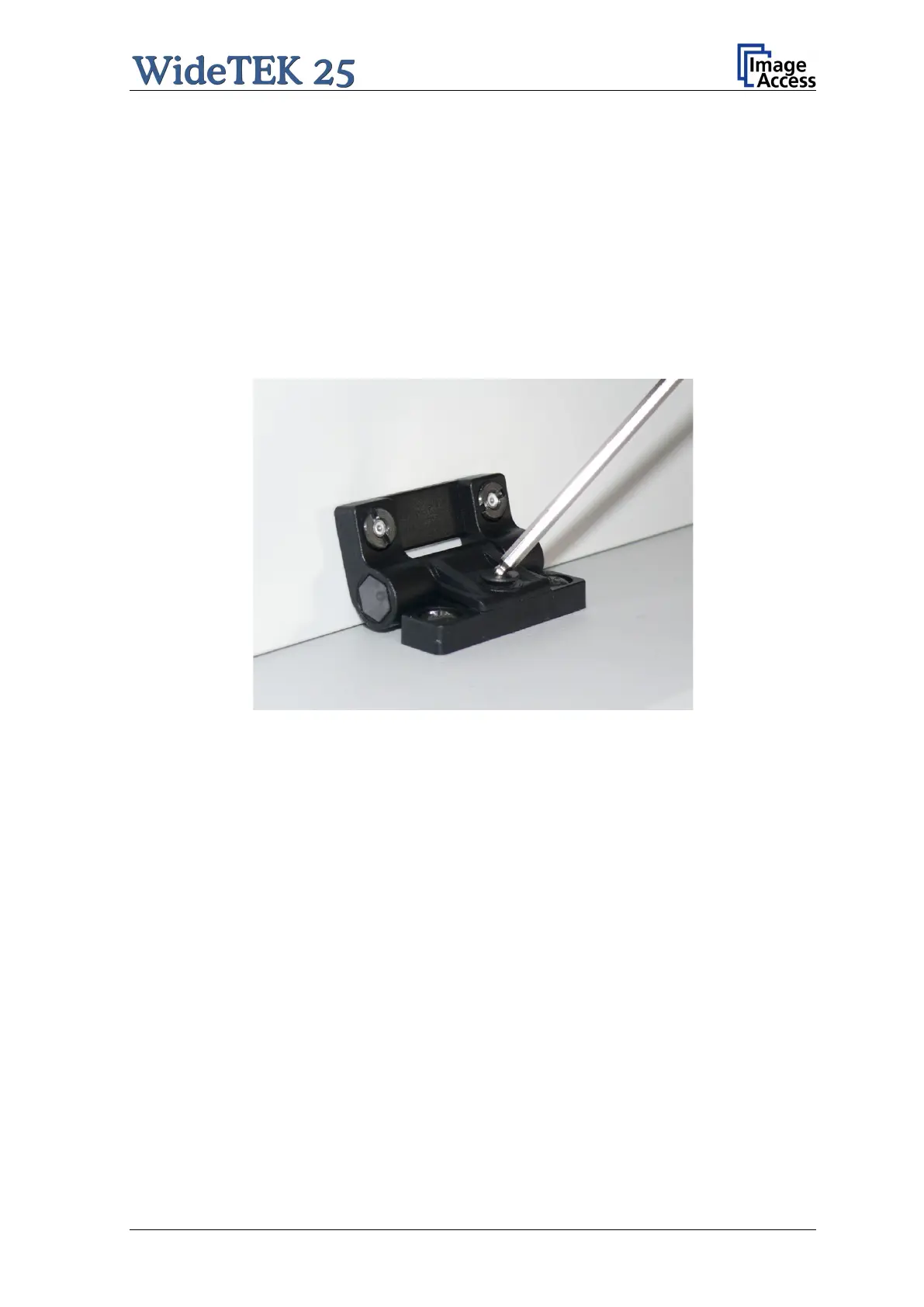

Picture 52: Setting the damping force of the hinge
Fasten the Allen head screws with normal manual strength. Move the glass plate cover
slowly up and down while fastening the Allen head screws.
Intention of this is, that the glass plate cover should move easily, but damped.
