Image Access WideTEK 25 Setup And Assembly Manual

Setup and Assembly Manual Page 55
C.4 Scan Test Targets
With the help of this function, the user can scan either a CSTT target or an IT8 target. The
targets are used to analyze specific features of the scanner’s camera and i nternal
parameters.
Some CSTT test target are delivered with the scanner.
In the Poweruser main menu screen find the section Adjustments & Support. Select
here Scan Test Targets . Another screen opens.
Select here either Scan CSTT Test Target or Scan IT8 Test Target .
C.4.1 Scan CSTT Test Target
When Scan CSTT Test Target is selected, the next screen shows how to position the
target on the document table.
Note: Place the CSTT test target with the printed side on the glass plate.
The picture on the screen shows the target with the printed side up. This is only to help
identifying the test target.

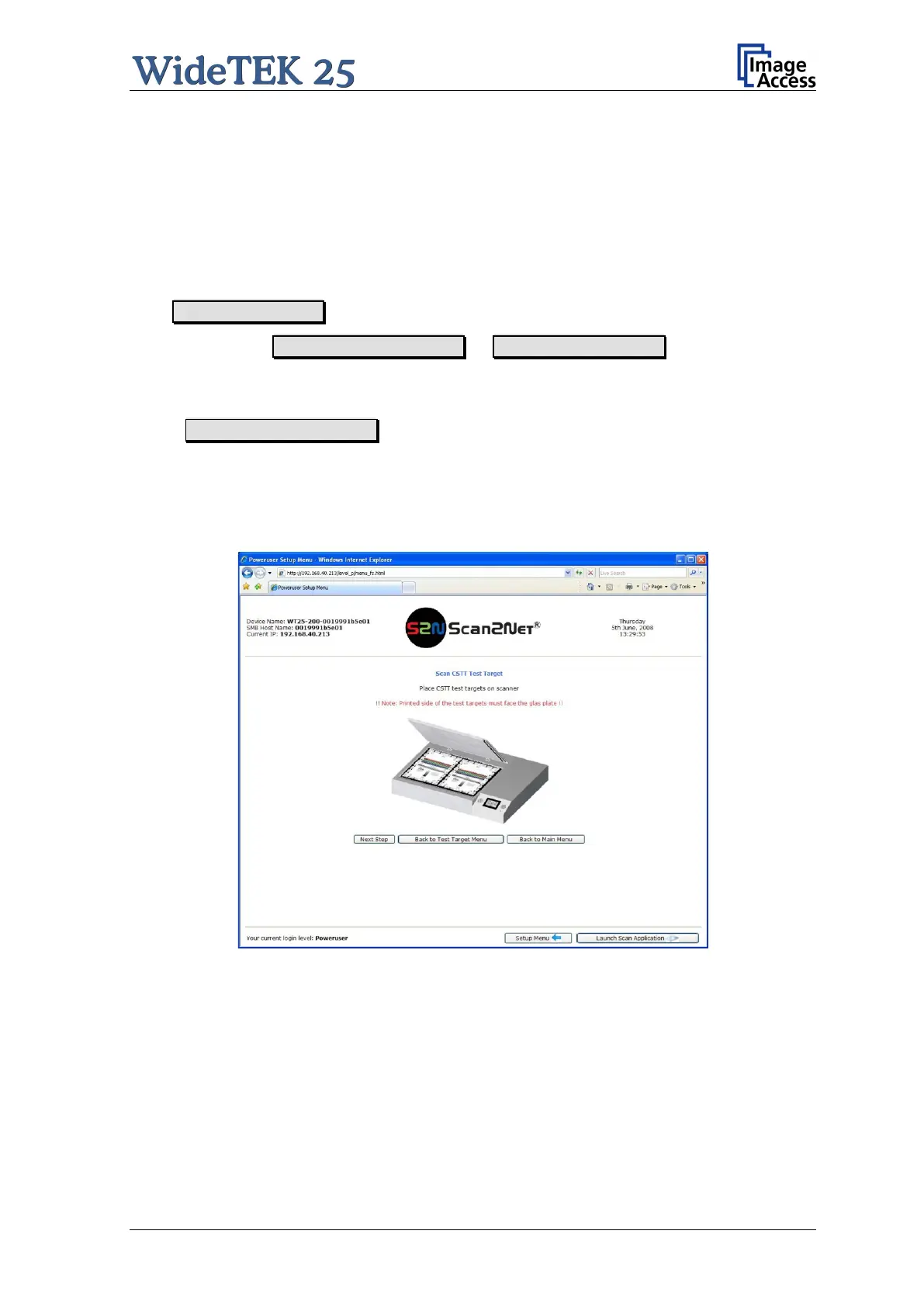

Picture 53: Position of CSTT test target on the glass plate
The test targets will be s canned and the image will be s aved to a di rectory which is
defined by the user. The saved image can be used for support purposes.
