Intel® Server Board SE7520BD2 Technical Product SpecificationPlatform Management Architecture
Revision 1.3 Intel Confidential
113
15. Status
Reset button
Power button
Sleep button
16. Hidden NMI switch
17. USB port
18. Chassis intrusion
19. SMBus
The Server Board SE7520BD2 can also be converted into a rack installation in which the
following are also supported on the front panel but are not accessible/visible in the pedestal
chassis.
An Identification Switch
An Identification LED
Additionally, the front panel has a built-in temperature sensor (DS1621) that communicates via
the SMB port at Address 9A.
While the Server Board SE7520BD2 complies with SSI-EEB, the front panel does implement all
of the recommended features in SSI-EEB and adds some additional features not covered in the
specification.

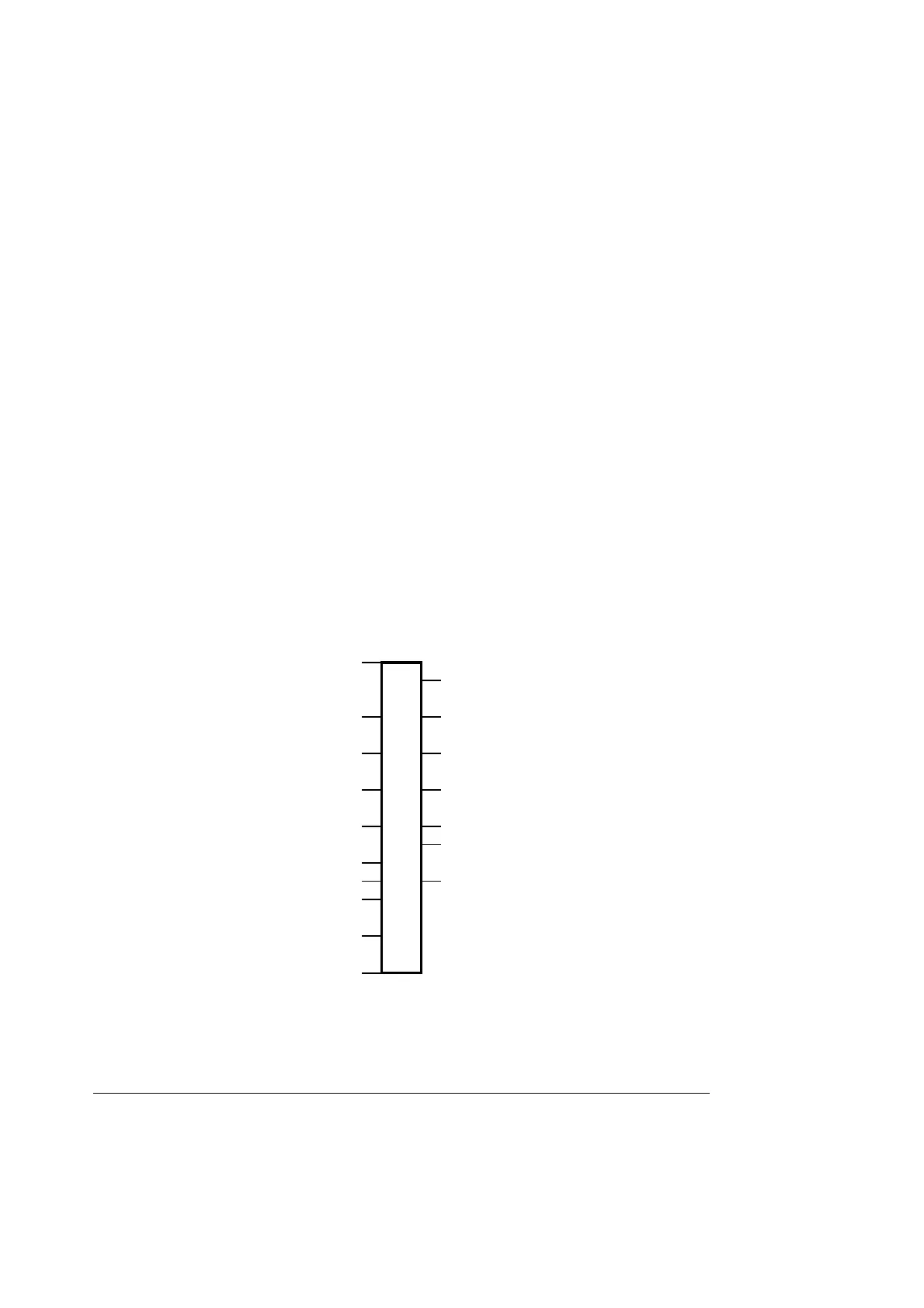

Figure 15. Front Panel Pinout
OO
O
OO
OO
OO
OO
OO
OO
OO
OO
Intruder
OO
NMI
OO
OO
OO
OO
OO
SMBus
LAN A
Link/ Act
System
Fault
Front Panel Pinout
Sleep
Button
ID LED
ID Button
Power
LED Cool Fault
HDD
LED
Power
Button
Reset
Button
LAN B
Link/ Act
