Configuration Arbitrary Waveform
Copyright ©ITECH Electronic Co., Ltd. 93
Open: import waveform data.
Save: Save the user-define wave.
Delete: select a row and click Delete.
Clean: delete all of data
Back: return back upper menu.
7.4 Voltage Signals Simulation
In AC mode or AC+DC mode, users can import TDMS waveform curve files for
simulation, and set parameters such as repetition times and waveform offset for
imported waveform.
By default, the open waveform is only for real-time simulation. If you remove the
USB disk, the waveform disappears. Users can also permanently save the open
waveform to the power supply memory.

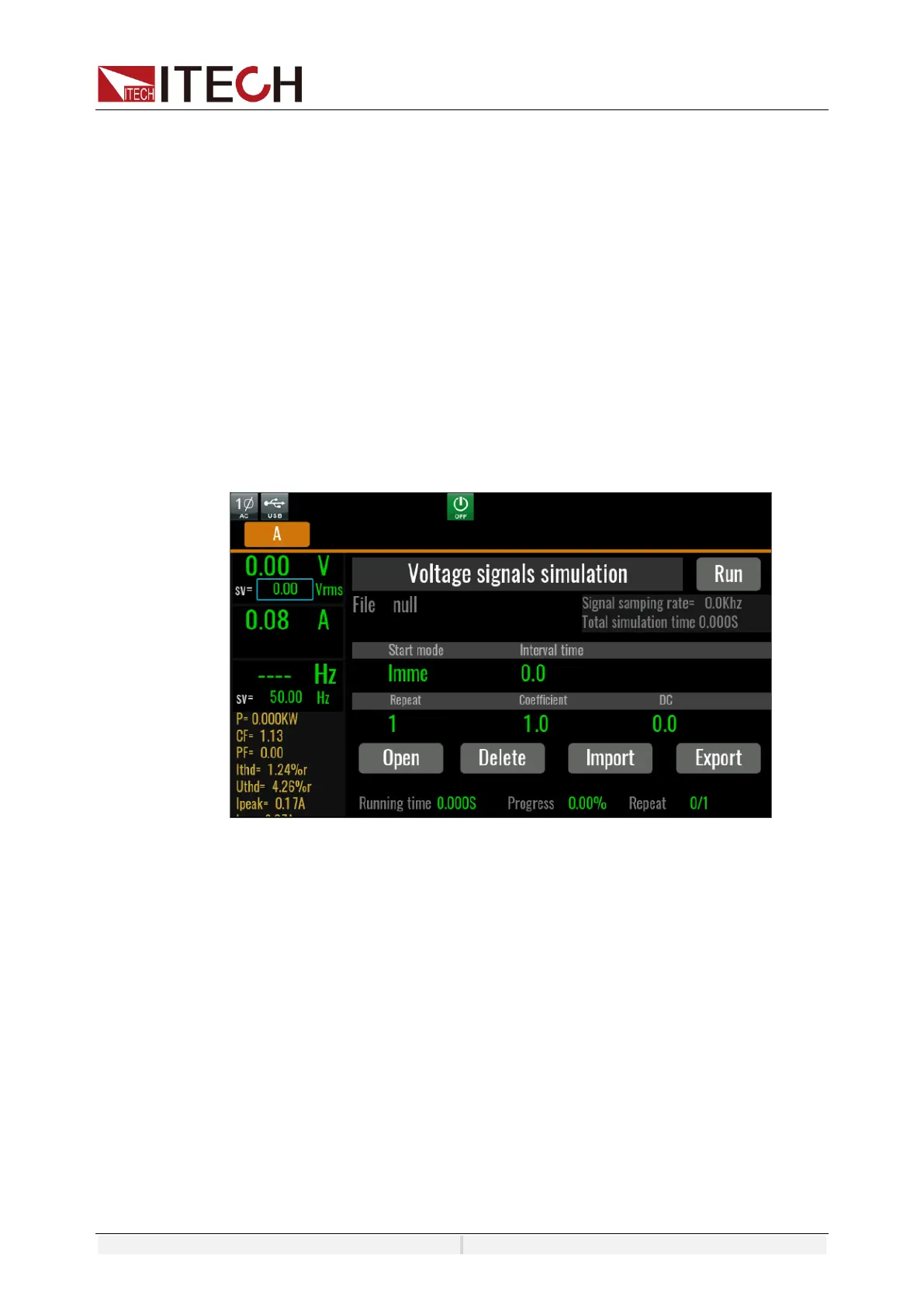

Directly click Simulation in the Menu to enter the voltage signal Simulation
interface, as shown below:
Start mode: can be selected as immediate execution or trigger execution.
Interval time: The interval between waveform repeats.This parameter is
displayed only when start mode is selected for Imme.
Repeat: Number of repeated execution of waveform
Coefficient: Waveform amplification Coefficient
DC: DC offset
Open: Open the waveform file.
Delete: Delete the waveform file.
Import: Import and save the waveform file to the power supply memory.
Export: Export the waveform file to the U disk.
Run: Start running waveform. Power output should be turned on before
operation.
