5 CONTROLS

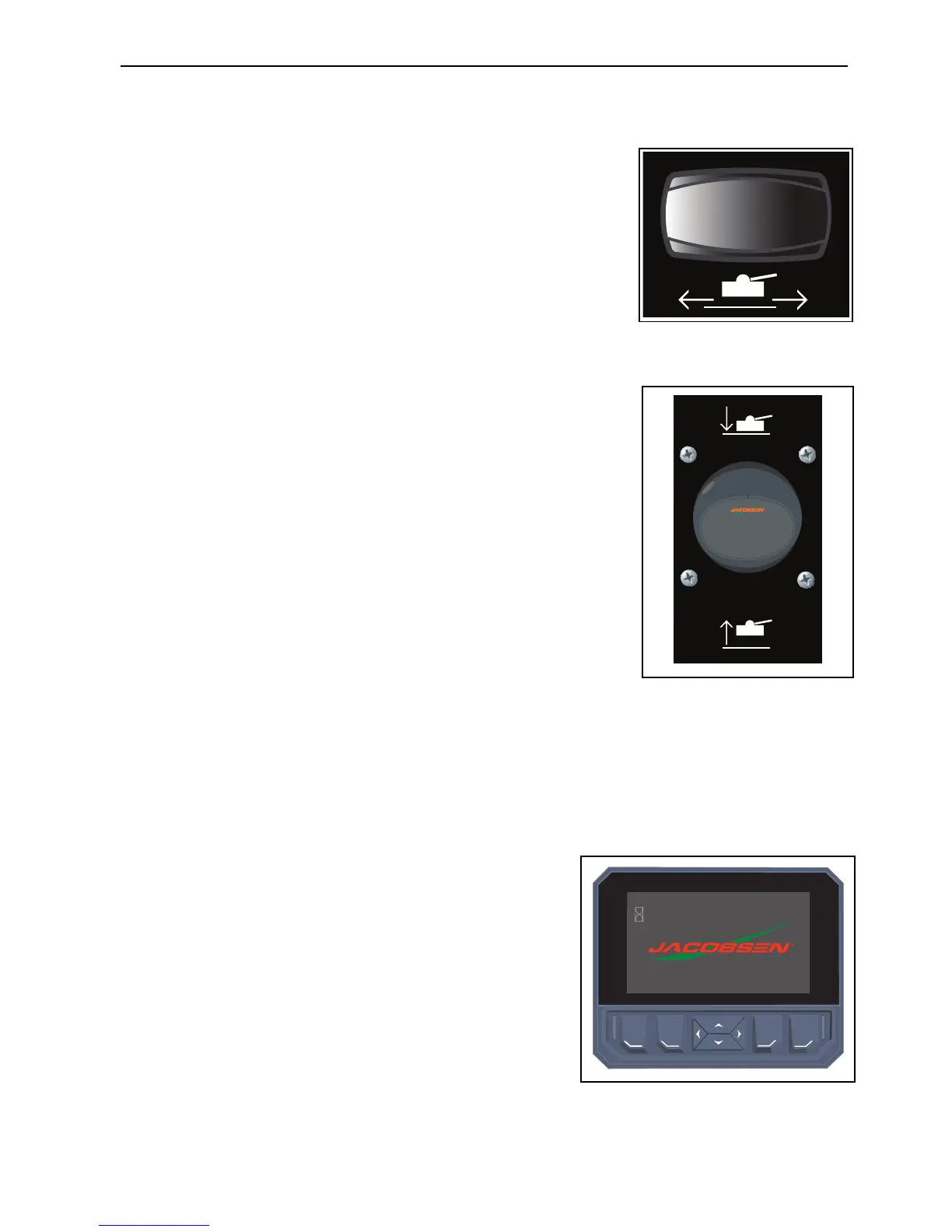

5.2.E SIDE SHIFT SWITCH __________________________________________________
The side shift switch shifts the all cutting units to either the left or right.
Push the lever to the left to shift the front cutting units to the left.
Push the lever to the right to shift the front cutting units to the right.
NOTE. The cutting units MUST be raised into the “Cross Cut” position
before using this function.
5.2.F LIFT LOWER JOYSTICK _______________________________________________
The lift/lower joystick controls the cutting units lift and lower. The lift/lower
joystick operates in One-Touch or manual mode. Push the lift/lower joystick to
lower the cutting units or pull the lift/lower joystick to lift the cutting units.
The One-Touch or manual mode is set on the display.
Manual Mode - When One-Touch is disabled, the cutting units will lift or lower
only while the lift / lower joystick is either pulled or pushed.
One-Touch Mode – With One-Touch mode enabled and the Mow Switch on,
push and release the lift / lower joystick to lower the cutting units to the ground
and start the cutting unit reels.
5.2.G VISUAL DISPLAY UNIT ________________________________________________
The visual display is activated when the key switch is turned to the ‘Run’ position
5.2.H.1 STARTUP SCREEN
____________________________________________________
When the key switch is turned to the ‘Run’ position, this screen is
shown.
The hour meter will show total hours of engine operation.
