7 ADJUSTMENTS

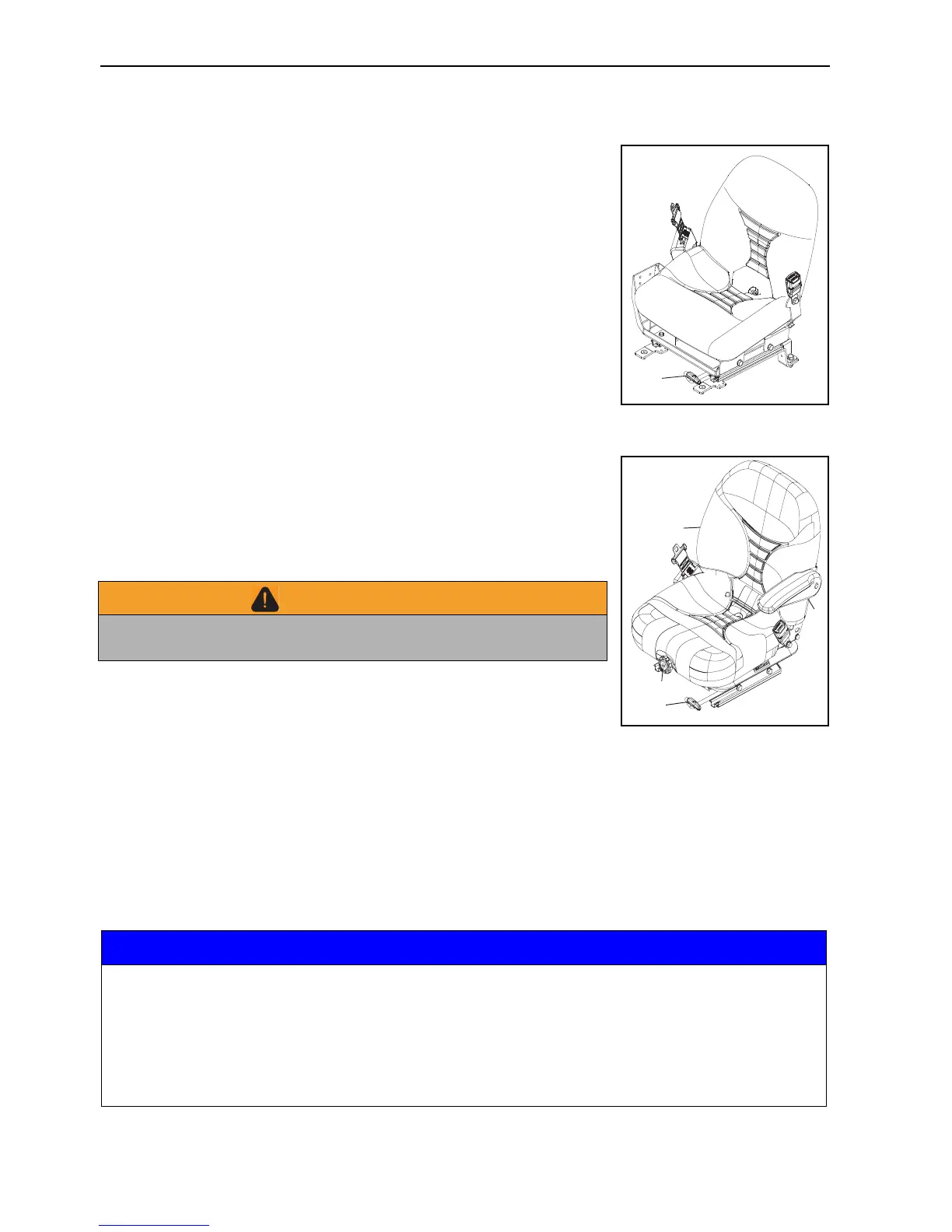

7.11 SEAT (MILSCO V-2853) ________________________________________________
Adjust the seat to the best location based on leg reach.
A. FORE AND AFT ADJUSTMENT.
To Adjust.
The adjusting lever is on the left hand side of the seat below the seat cushion
(B). By moving the lever upwards, the seat can slide backwards and forwards.
When in the desired position release the lever to lock the seat into one of the
pre-set positions.
7.12 SEAT (MICHIGAN V-5300) ______________________________________________
Adjust the seat to the best location based on leg reach.
A. ADJUSTMENT FOR OPERATOR WEIGHT
To Adjust.
Whilst standing in front of the machine, rotate knob (A) clockwise or
anticlockwise to move the red indicator to the approximate operator weight.
B. FORE AND AFT ADJUSTMENT.
To Adjust.
The adjusting lever is on the left hand side of the seat below the seat cushion
(B). By moving the lever upwards, the seat can slide backwards and forwards. When in the desired position
release the lever to lock the seat into one of the pre-set positions.
C. BACKREST ADJUSTMENT.
To Adjust.
Rotate the adjuster (C) clockwise or anticlockwise until a comfortable position is achieved.
D. ARM REST ADJUSTMENT.
To Adjust.
Raise the arm rest to the vertical position and rotate the adjustable stop to achieve a comfortable position.
WARNING
The Operator Weight must be set to the actual weight of the Operator.
Safety Systems will be compromised if this is not done.
NOTICE
Adjust the seat to make sure all controls are within reach and will operate through the
full range of movement.
1. The seat has a microswitch fitted to sense that the operator is in the seat, therefore it is important to set
the seat to match the operators weight.
2. Set the seat position for distance from the traction pedal, check that you can reach all the controls.
3. Set the seat so that you can see the cutting units and area around them.
