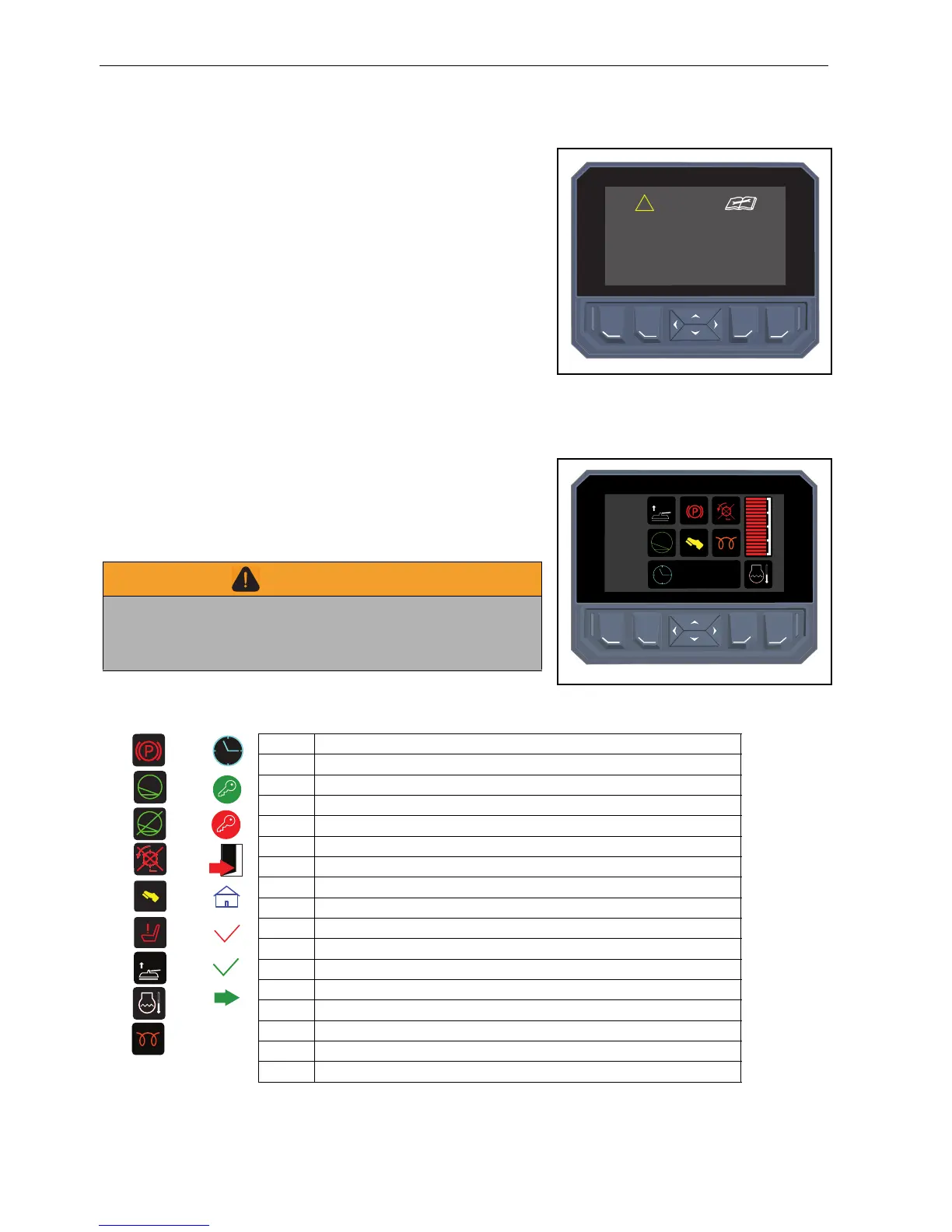

5.2.H.2 WARNING / SERVICE SCREEN
____________________________________________
After the initial start-up screen, the warning screen is displayed for
three seconds. If there is no input required, the main screen will
become visible.
If a fault condition has occurred during the previous start, a pop up
screen will become visible over the top of the warning screen. The
operator must confirm the fault before they can move to the first
screen.
5.2.H.3 FIRST SCREEN
________________________________________________________
This screen shows the position of the interlock switches, TST when in
operation and the coolant temperature.
The engine temperature gauge is on the right side of the display. The
colour changes from green to red as the temperature increases.
WARNING
The slope monitoring system “TST™” (tilt sensor technology)
is a slope angle warning system only. It does not increase the
safe working slope beyond that of the declared safe slope.
ICONS
1. Parking Brake Engaged
2. TST Active
3. TST Not Active
4. Cutter Indicator (Flashes if not in off position on start up)
5. Foot Pedal Warning (Flashes if not in neutral position on start up)
6. Seat Warning (Flashes if not occupied or disconnected on start up)
7. Cutting Unit Position Indicator
8. Engine Temperature Indicator (Below bar graph)
9. Glow Plug
10. Time
11. Engine Able To Start
12. Engine Unable To Start
13. Back
14. Home
15. Red Select
16. Green Select
17. Menu Option Indicator
WARNING
If incorrectly used this maching can cause
severe injury. Those who use and maintain
this machine should be trained in its proper
use, warned of its dangers and should read
the entire operators manual before attempting
to set-up, operate, adjust or service the
machine.
!
