ADJUSTMENTS 7

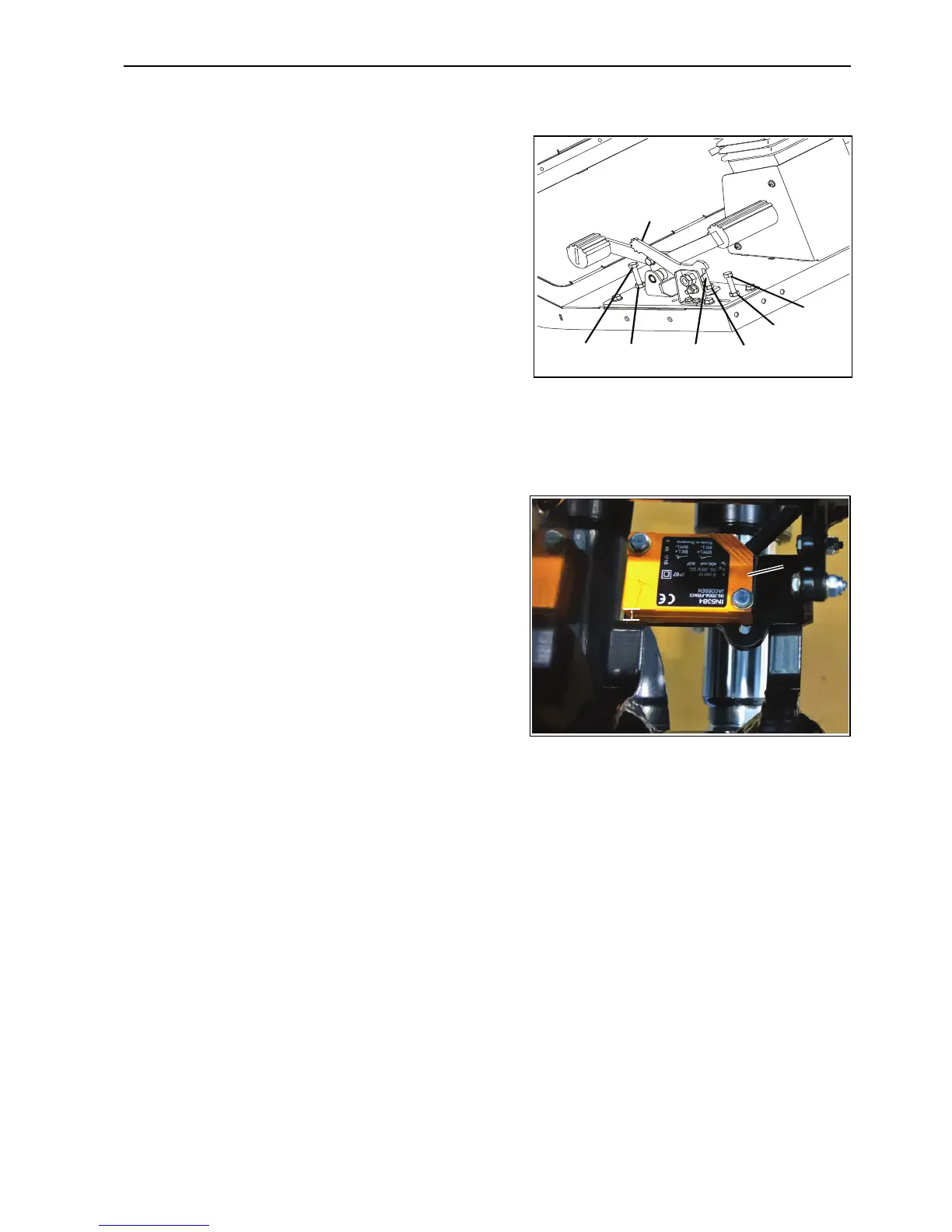

7.7 TRACTION PEDAL STOPS _____________________________________________
The traction pedal has three pedal stops to limit the speed of
the mower.
The forward transport speed stop (A) is used to set the
maximum transport speed. Make sure the mow speed lever
(C) is in the transport position. Loosen nut (B) and adjust the
stop to set the desired speed. Tighten the nut.
The forward mow speed stop (D) is used to set the maximum
mow speed. Rotate the mow speed lever (C) to the mow
position. Loosen nut (E) and adjust the stop to set the desired
speed. Tighten the nut.
The reverse speed stop (F) is used to set the maximum
reverse transport speed. Loosen nut (G) and adjust the stop to
set the desired speed (See section 12.3 for specifications).
7.8 CUTTING UNIT LIMIT SWITCH __________________________________________
The mower has a proximity switch (A), which signals the
cutting circuit to turn off the blades. The switch is installed on
the mower frame behind the centre lift arm. If the blades
continue to rotate when lifted or do not rotate when lowered,
inspect the switch. Adjust or replace the switch as required.
The proximity switch has a red LED to signal when the switch
contacts are closed.
To adjust switch:
1. Park the mower on a flat and level surface.
2. Lower the cutting units.
3. Remove the cutting unit from the centre lift arm.
4. Raise the remaining cutting units into the cross cut position.
5. Remove the access panel from within the operators platform.
6. Turn the ignition switch to the RUN position to activate the electrical system. Do not run the reels or
start the engine.
7. Adjust the lift arm switch (A) as required to get an 0.3 to 0.5 cm (1/8 to 3/16 in.) air gap between
the switch and the lift arm (B) until the switch contacts close and the red LED turns on. Fasten the
switch in this position.
8. Start engine and lower the cutting units to the ground.
9. Install centre cutting unit.
10. Test vehicle and make sure that the reels turn off when lifted above 400 mm.
