ADJUSTMENTS 7
7.10) CUTTING BLADE CHANGE __________________________________________________

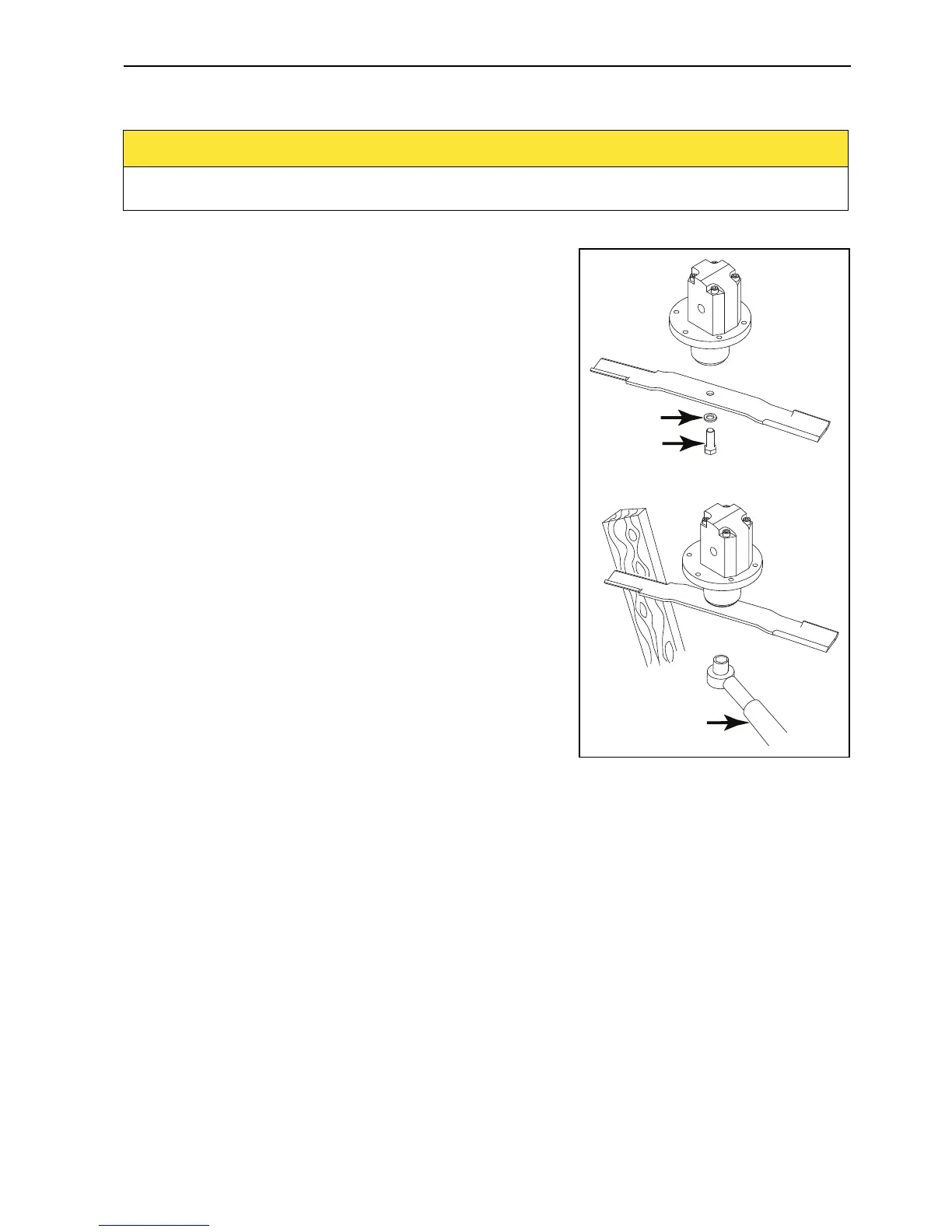

BLADE CHANGE
1. Start the engine and raise all three cutting decks into the
transport position, then lock the lift arms. Turn off engine and
remove ignition key.
2. Place a block of wood between the cutting blade and deck shell
then carefully remove blade bolt (A) and blade spacer (B).
3. Remove cutting blade from the blade adapter.
4. Fit the cutting blade onto the blade adapter, secure in place with
blade spacer and blade bolt tighten the nut with your fingers
first. Place a block of wood between the cutting blade (W) and
cutter deck shell, then carefully torque the blade bolt to 95 Nm
(70 lb ft).
CAUTION
Blades are extremely sharp and can cause severe cuts.
For your protection, hold blade with thick leather work glove only.
A
B
C
